Operation Manual / TPS44-F.. - TPS61-F..
Preliminary remarks 1
Layout and function 1.2 Page 4
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F

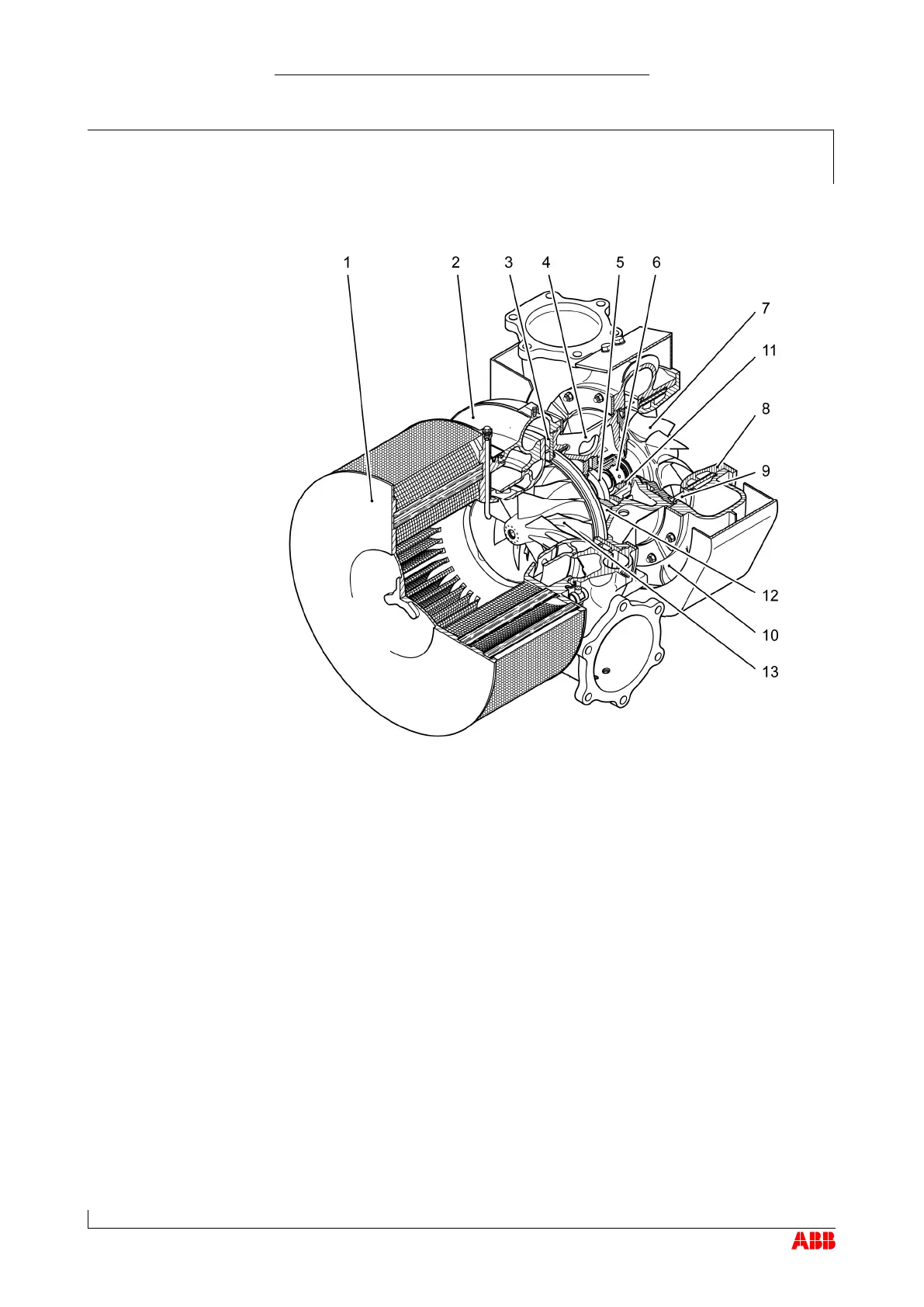

Layout and function
1.2
1 Suction branch / filter silencer 8 Gas outlet flange
2 Compressor casing 9 Nozzle ring
3 Diffuser 10 Turbine casing
4 Bearing casing 11 Turbine-end bearing flange
5 Axial thrust bearing 12 Compressor-end bearing flange
6 Radial plain bearing (visible only
at turbine end)
13 Compressor wheel
7 Turbine
1.2
