ABB HT571908 - Table of Tightening Torques

Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly 8
Table of tightening torques 8.6 Page 113
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F

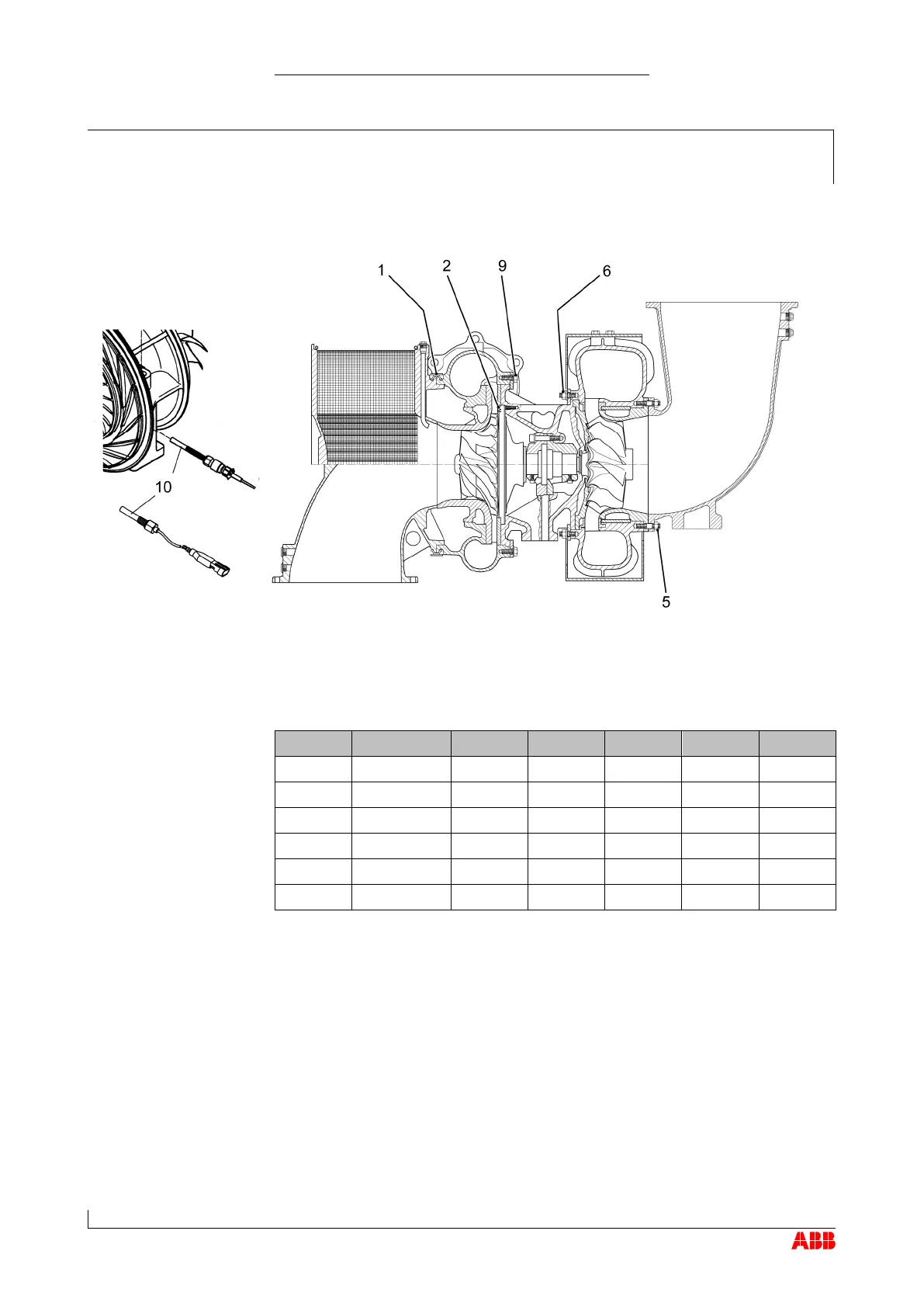

Table of tightening torques
8.6
The following tightening torques must be observed for the specified screw
connections:
Position Part number TPS44 TPS48 TPS52 TPS57 TPS61
1 72020 60 60 60 60 60
2 42008 6 10 10 20 20
5 52433 20 20 40 65 65
6 51007 25 25 45 75 75
9 72011 35 35 70 105 170
10 86505 15 15 15 15 15
8.6
Tightening torques [Nm]
