Operation Manual / TPL65-A32 / -A33 / -A36 + TPL69-A32 / -A33
4 Operation / 4.1 Noise emissions
© Copyright 2018 . All rights reserved. HZTL2498_EN Revision C April 2018

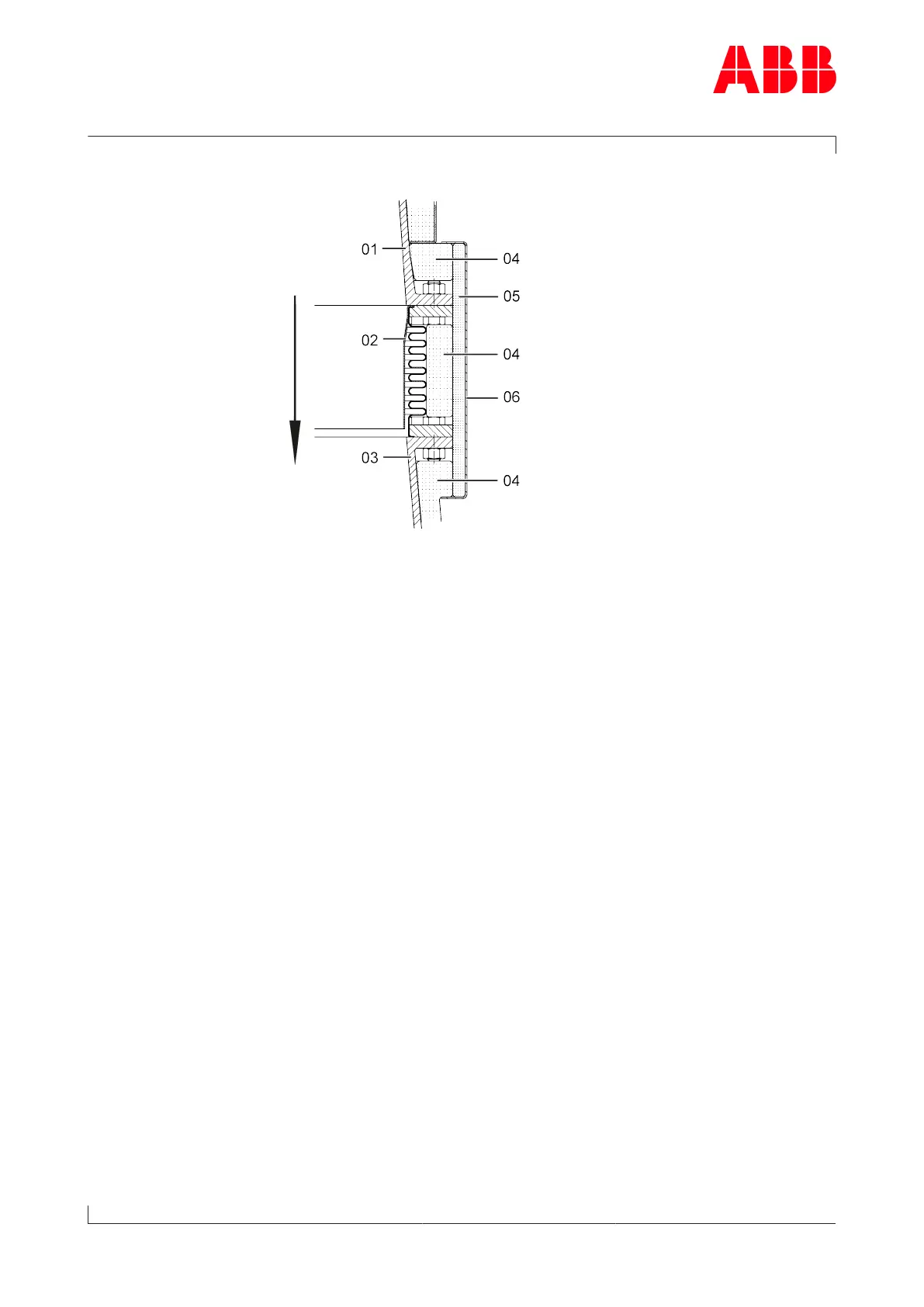

Suggestion for noise insulation of the bellows
01 Compressor casing 04 Insulation pads
02 Bellows 05 Insulation mat (at least 15 mm)
03 Charge air duct / scavenging
air line
06 Sheet metal cover
Page 34 / 118
