Operation Manual / TPL65-A32 / -A33 / -A36 + TPL69-A32 / -A33
8 Disassembly and assembly / 8.2 Module weights
© Copyright 2018 . All rights reserved. HZTL2498_EN Revision C April 2018

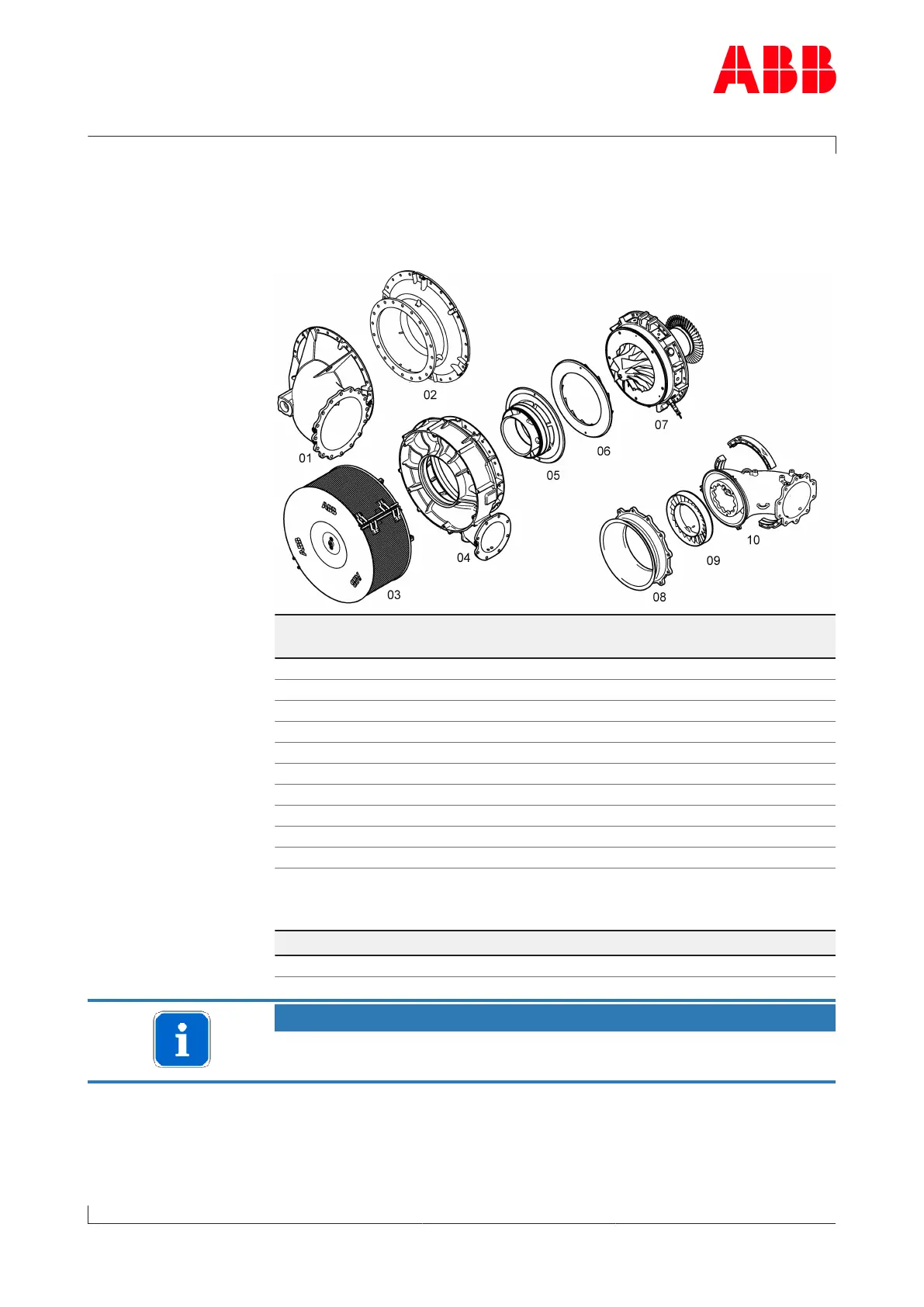

8.2 Module weights
The specified weights of individual parts or assemblies are guides roun-
ded off to the next highest value.
Assemblies
Weights [kg]
Description TPL65-A32 / -A33 / -
A36
TPL69-A32 / -
A33
01 Radial air suction branch 50 70
02 Axial air suction branch 35 - -
03 Filter silencer 130 220
04 Compressor casing 180 260
05 Wall insert 40 65
06 Diffuser 19 35
07 Cartridge group 290 360
08 Turbine diffuser 30 50
09 Nozzle ring 10 17
10 Gas inlet casing, radial 50 55
Complete compressor casing
Weight [kg]
TPL65-A32 / -A33 / -A36 TPL69-A32 / -A33
Complete compressor casing 240 360
NOTICE
The total weight of the complete compressor casing is an addition of
the weights of the compressor casing, the diffuser and the wall insert.
