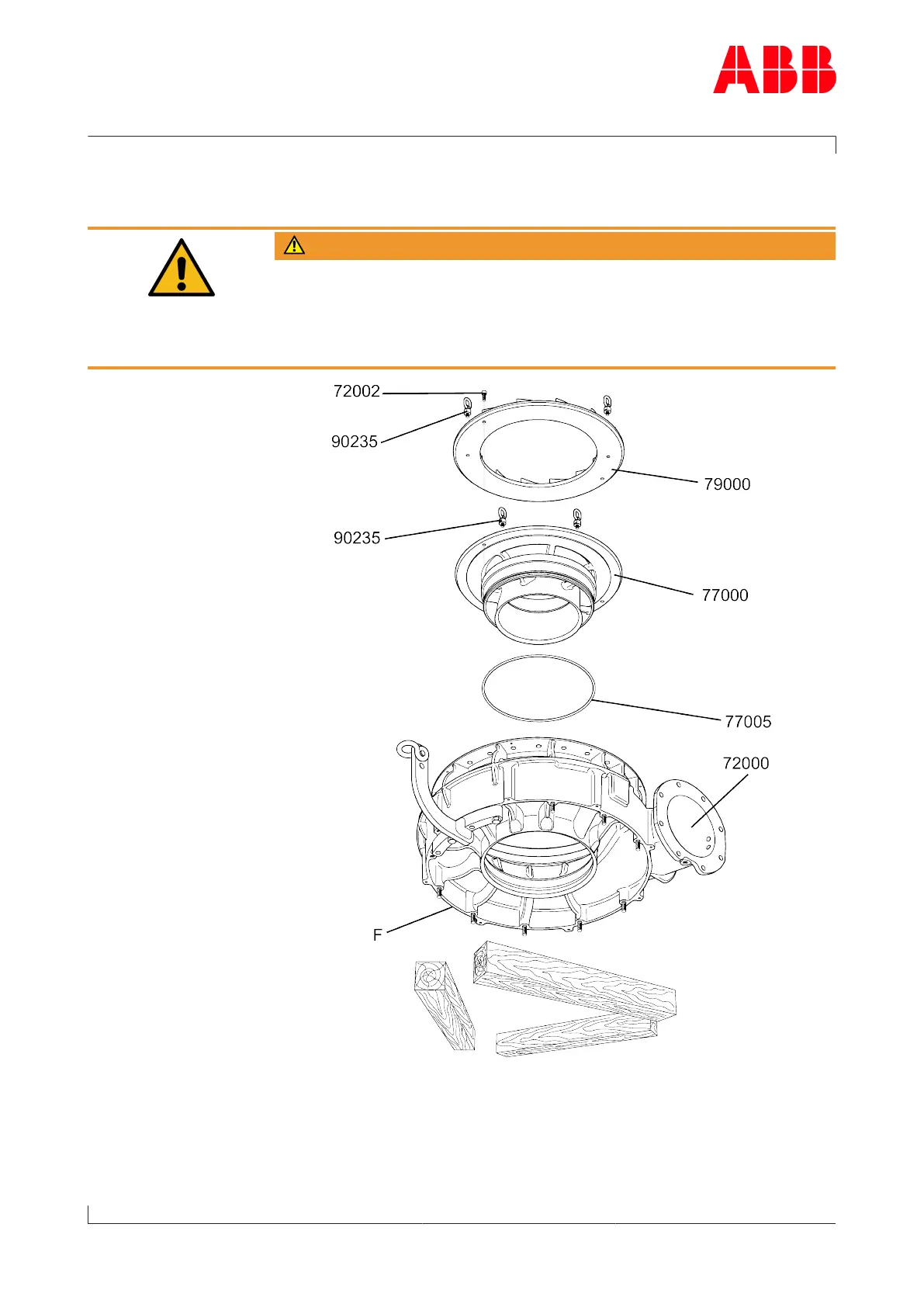

u Turn the compressor casing (72000) together with the wall insert and
diffuser and set them down with surface (F) on an underlay.
WARNING
Tipping the compressor casing
Make sure the underlay does not shift.
u Allow the compressor casing to rest only on surface (F).
u Check the underlay and adjust it if necessary.
u Remove the screws (72002).
u Remove the diffuser (79000).
u Remove the wall insert (77000) using swivel lifting eyes (90235).
u Remove the O-ring (77005) from the wall insert.
