Layout and function
1.2

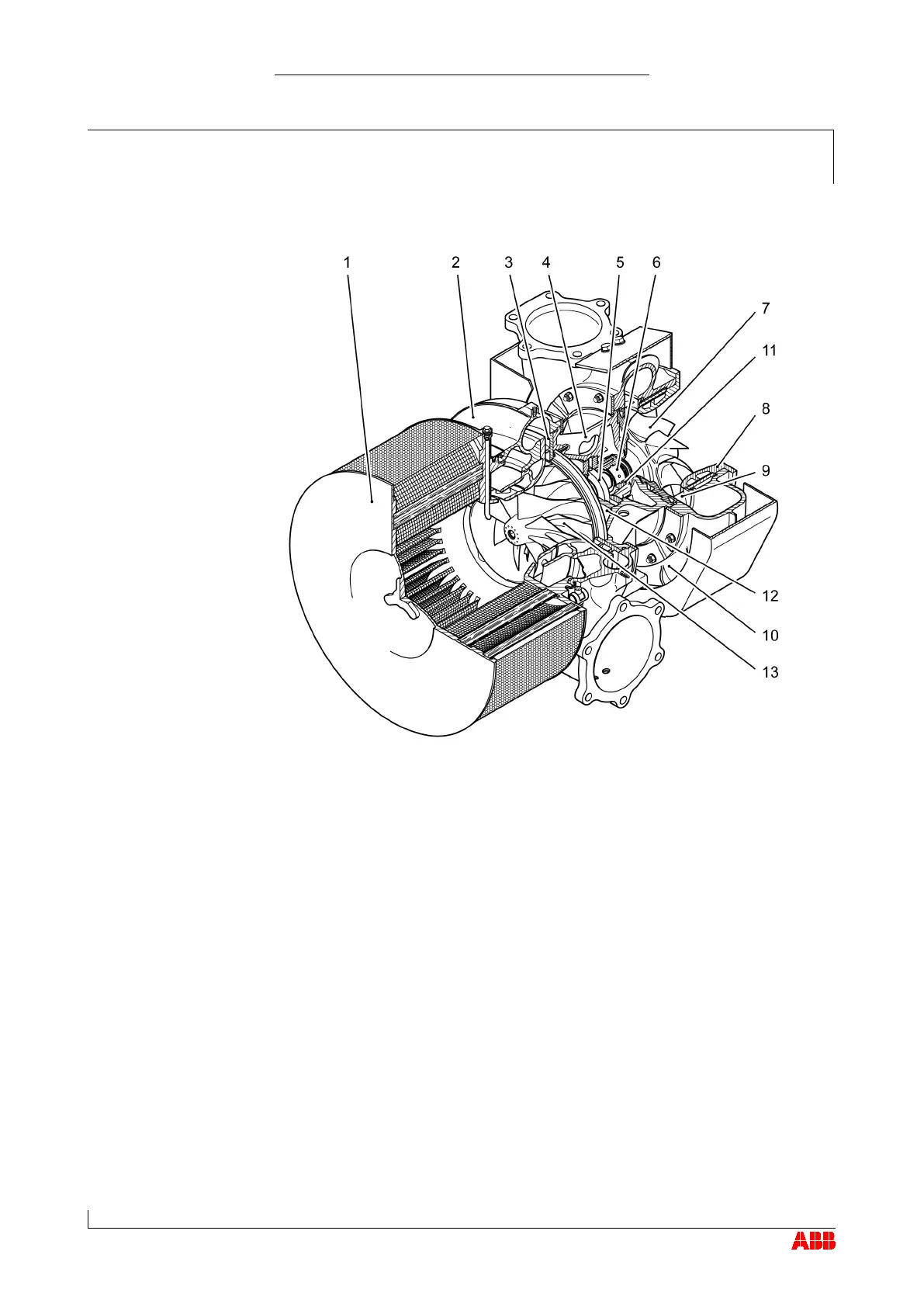

1 Suction branch / filter silencer 8 Gas outlet flange
2 Compressor casing 9 Nozzle ring
3 Diffuser 10 Turbine casing
4 Bearing casing 11 Turbine-end bearing flange
5 Axial thrust bearing 12 Compressor-end bearing flange
6 Radial plain bearing (visible only
at turbine end)
13 Compressor wheel
7 Turbine
