ABB HT593229 User Manual

Operation Manual / TPS44-F.. - TPS61-F..
Operation
4
Speed measurement
4.4
Page 50
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2412_EN Revision F
Speed measurement
4.4
A speed measuring system permits continuous monitoring of the turbo-
charger speed.
CAUTION
Do not use cables as a climbing aid
If you pull the speed measurement cables too hard, contacts can be
pulled out.
 Do not tension the speed measurement cables.

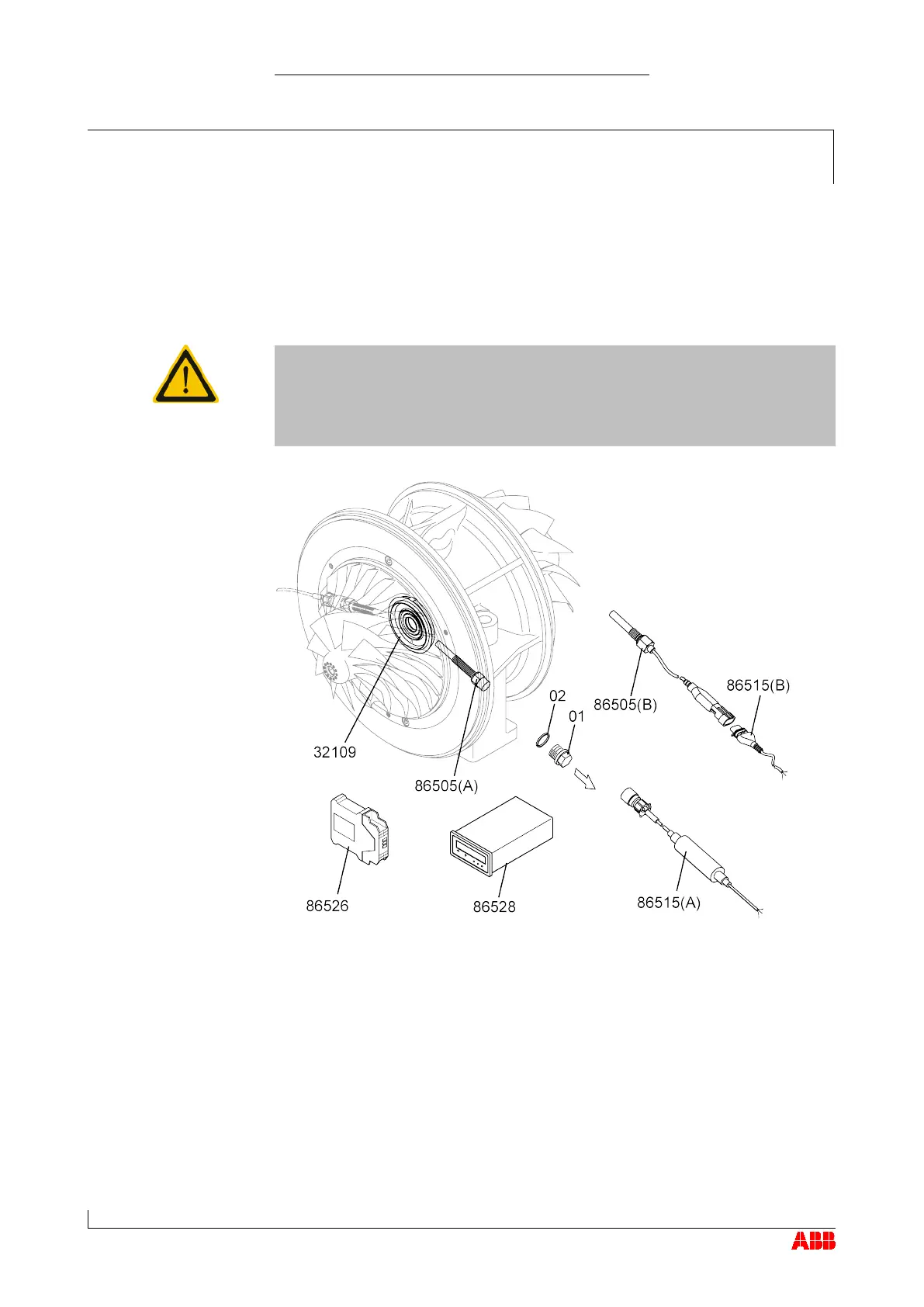

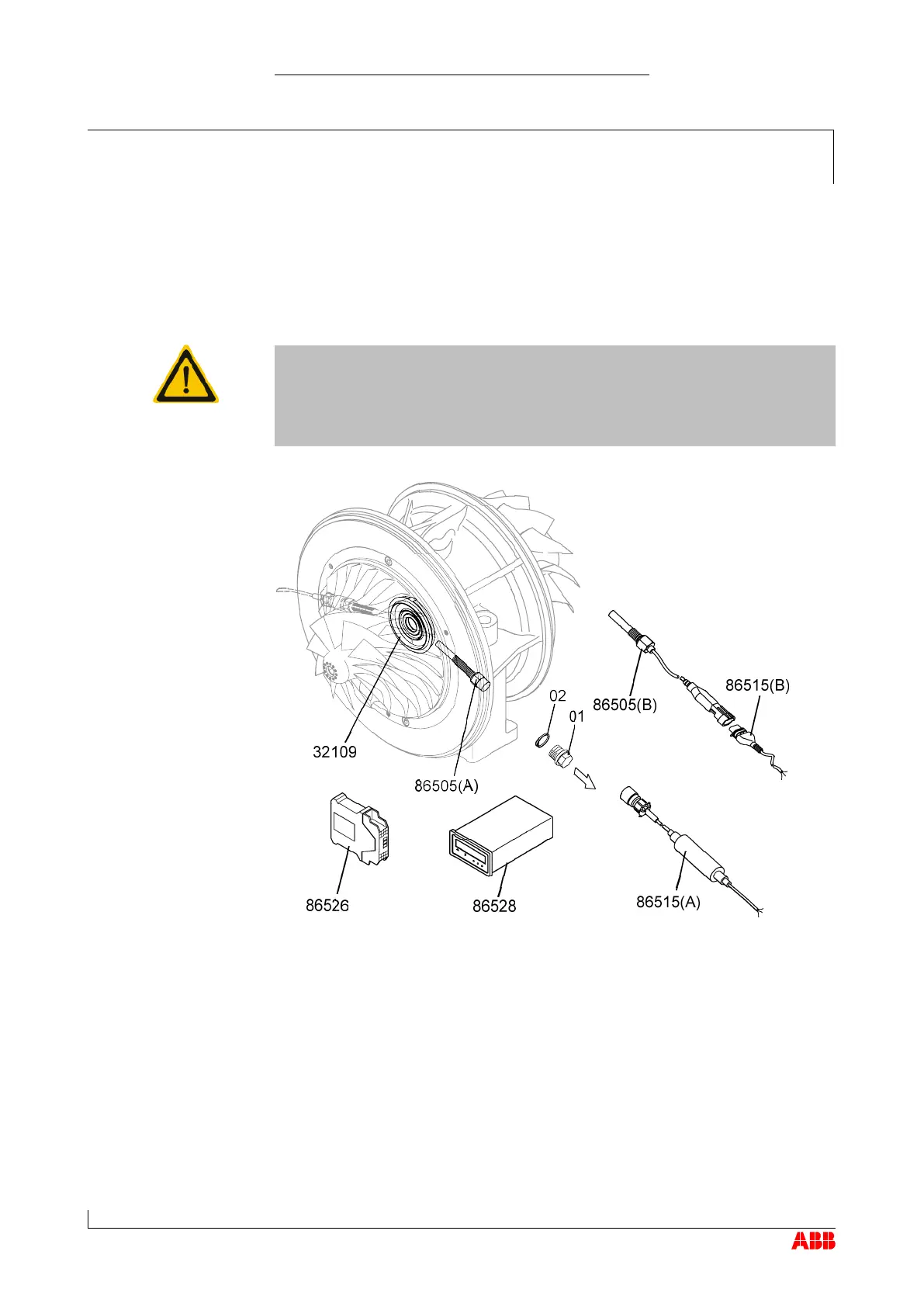

86505(A)
Speed sensor (cable not integrated)
86526
F/I converter
86505(B)
Speed sensor (cable integrated)
86528
Tachometer
86515(A) Cable connector to 86505(A) 01 Screw plug
86515(B)
Cable connector to 86505(B)
02
Gasket
4.4
