Operation Manual / A130-H.. - A140-H..
13 Spare parts / 13.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4030_EN
Rev.G
July 2021

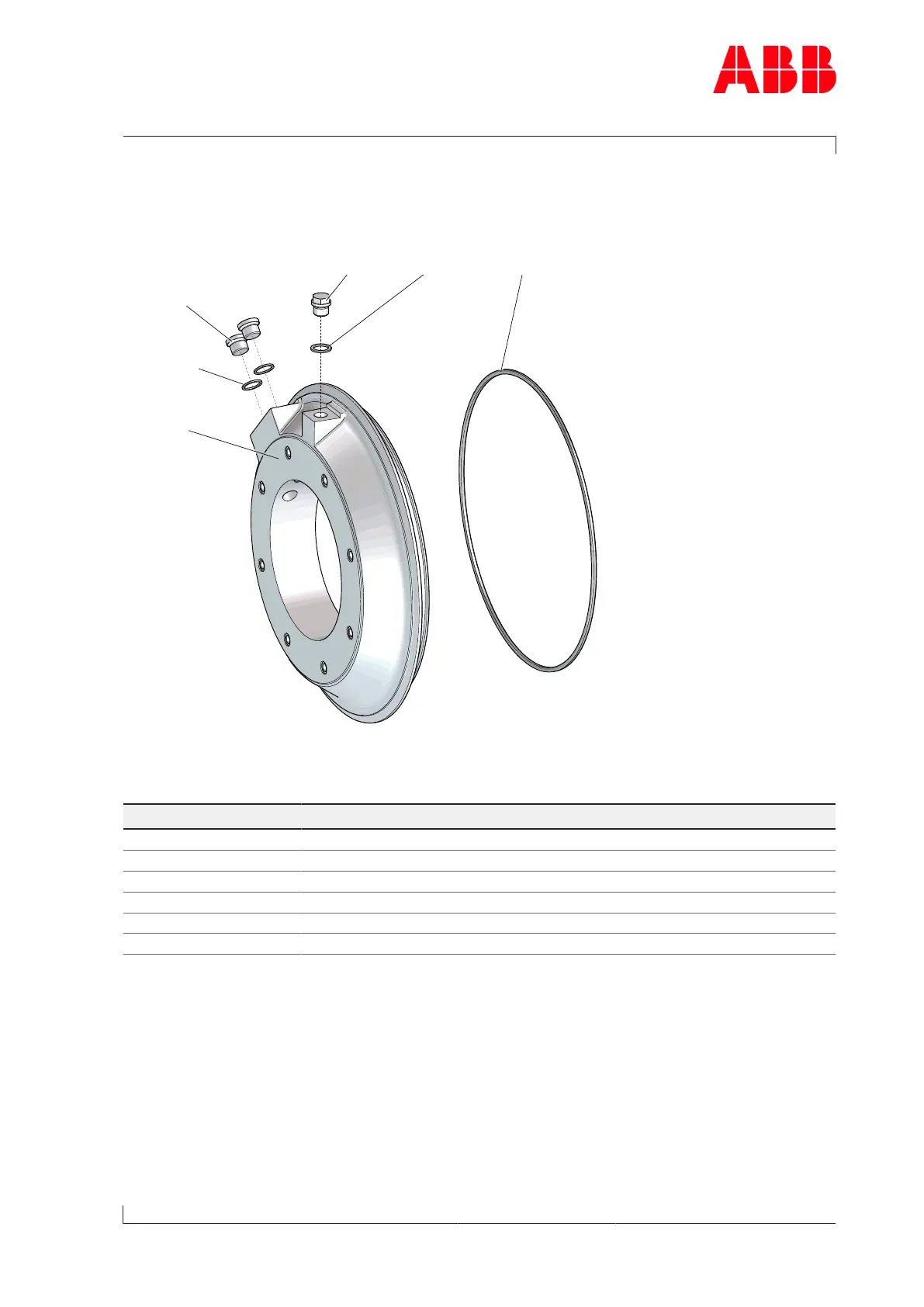

Air suction branch axial
82008(p)
82007(p)
82010*
82000
82006(p)
82005(p)
* = Av
ailable within the spare part set
(p) = pre-assembled
HZTL443560 Mod. A
Part no.
Designation
82000
Air suction branch
82005(p)
Screw plug
82006(p)
Gasket
82007(p)
Screw plug
82008(p)
Gasket
82010*
O-ring
Table53
