Operation Manual / TPL65-A32 / -A33 / -A36 + TPL69-A32 / -A33
8 Disassembly and assembly / 8.3 Removing and fitting filter silencer
or air suction branch
© Copyright 2020 . All rights reserved. HZTL2498_EN Rev.E March 2020
Removing the filter silen-
cer
u Remove insulation where necessary.

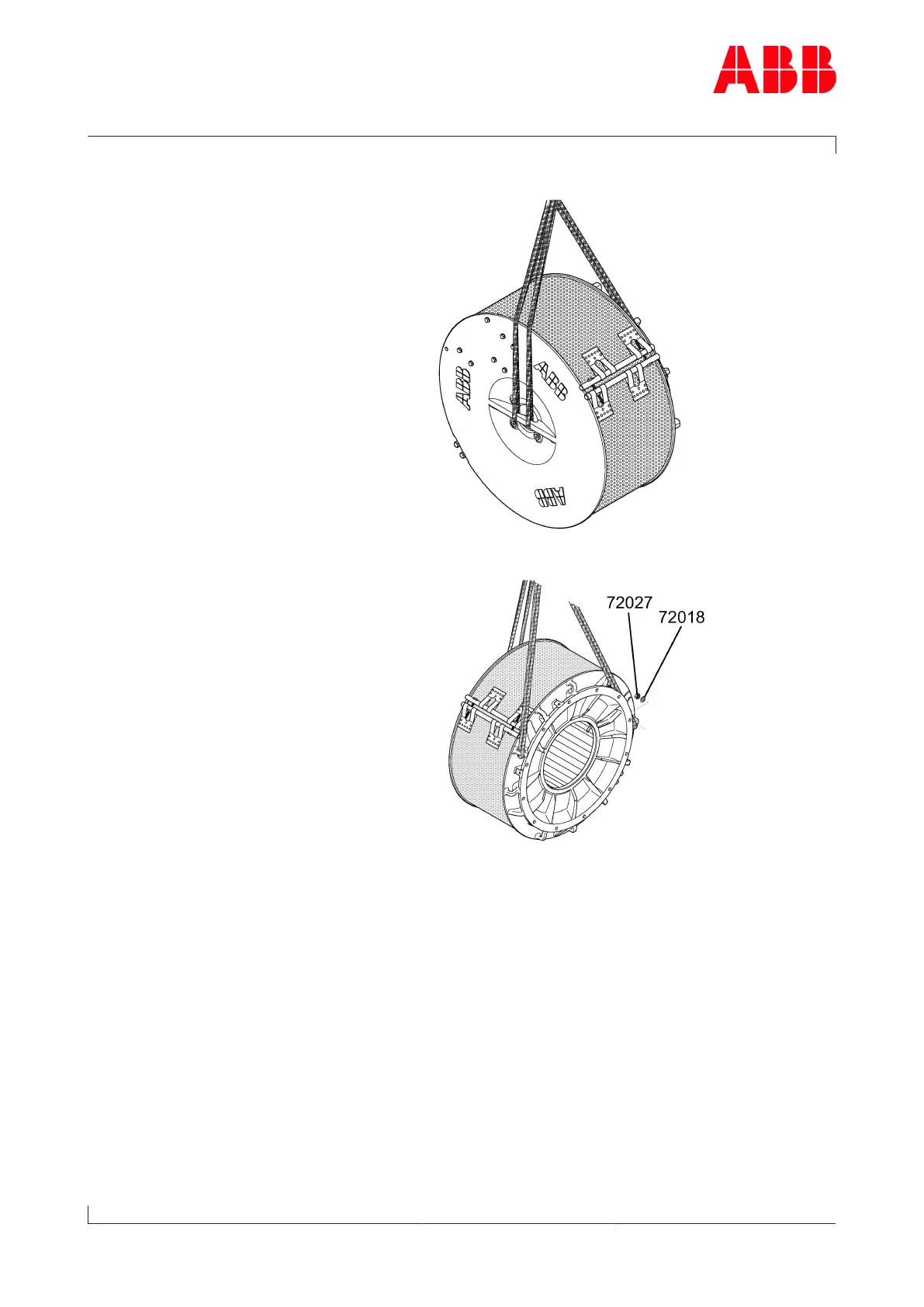

u Pass lifting gear through rib on filter silencer.
u Pass lifting gear through lugs on back.
u Unscrew nuts (72027) and remove them together with washers
(72018).
u Remove filter silencer and set it down to one side.
Installing the filter silen-
cer
u Install filter silencer in reverse order.
Page 81 / 118
