Operation Manual / TPL65-A32 / -A33 / -A36 + TPL69-A32 / -A33
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2020 . All rights reserved. HZTL2498_EN Rev.E March 2020

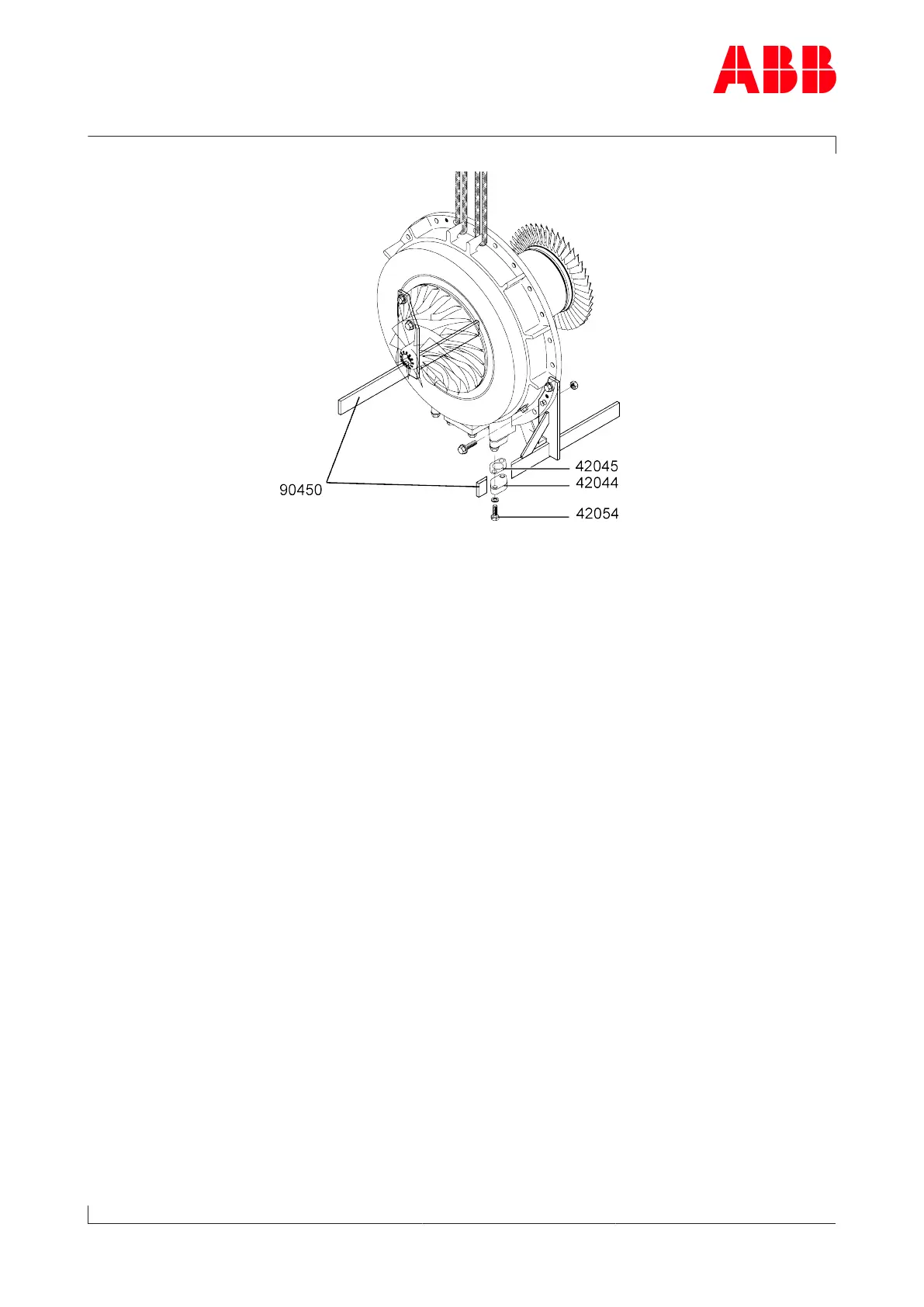

u Withdraw cartridge group and fit supports (90450).
u Remove screws (42064), flange (42044) and gasket (42045) and clean
oil space.
u Cover the oil connections.
Page 86 / 118
