3.2 Removing the turbocharger
u Disconnect all pipes according to the instructions of the enginebuilder.

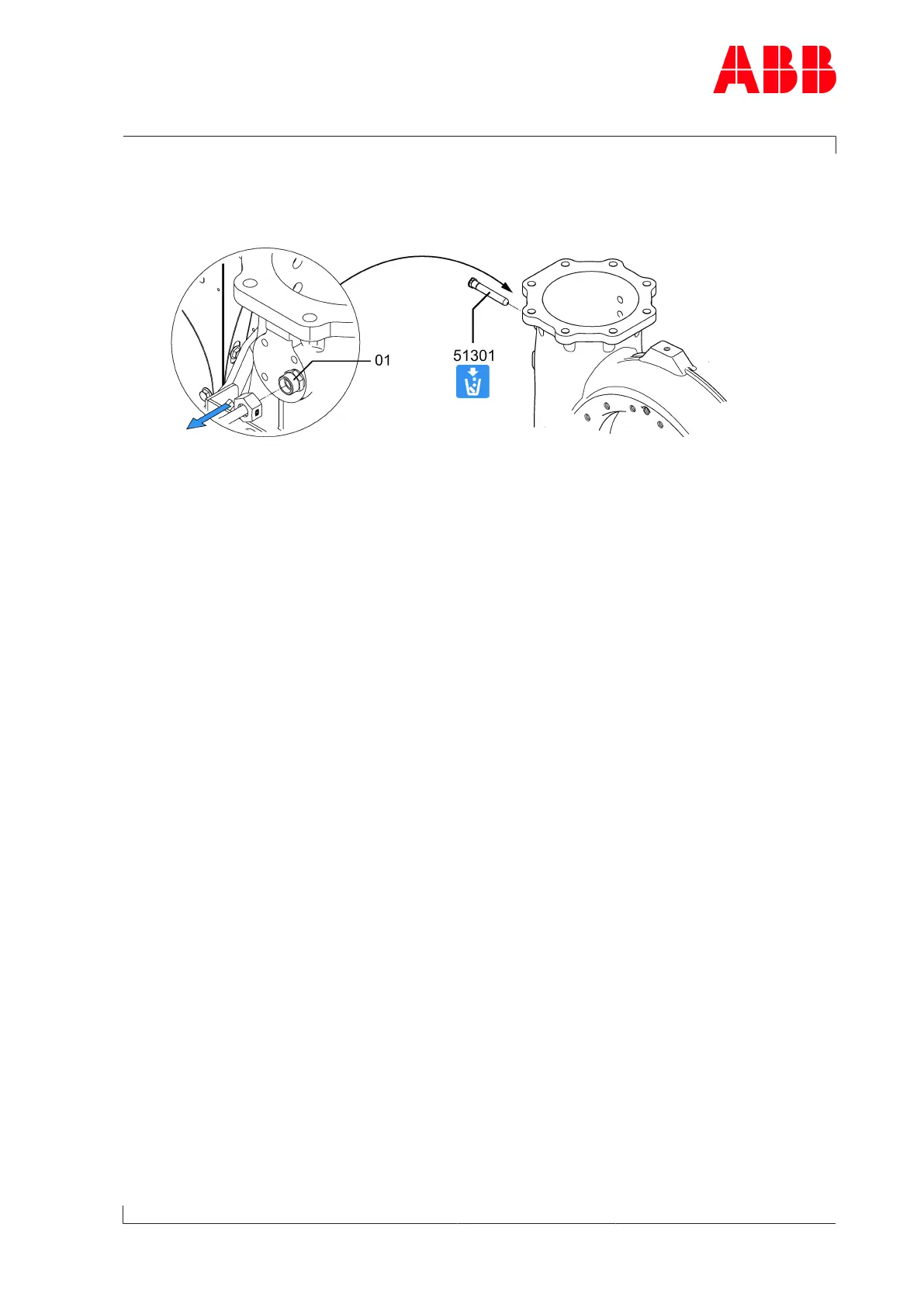

Fig.13: Turbine cleaning nozzle
u If present: Loosen the turbine cleaning connection.
The cleaning nozzle (51301) must be replaced after each removal procedure. If the clean-
ing nozzle is not to be replaced, the screw connection (01) must not be loosened during
disassembly.
