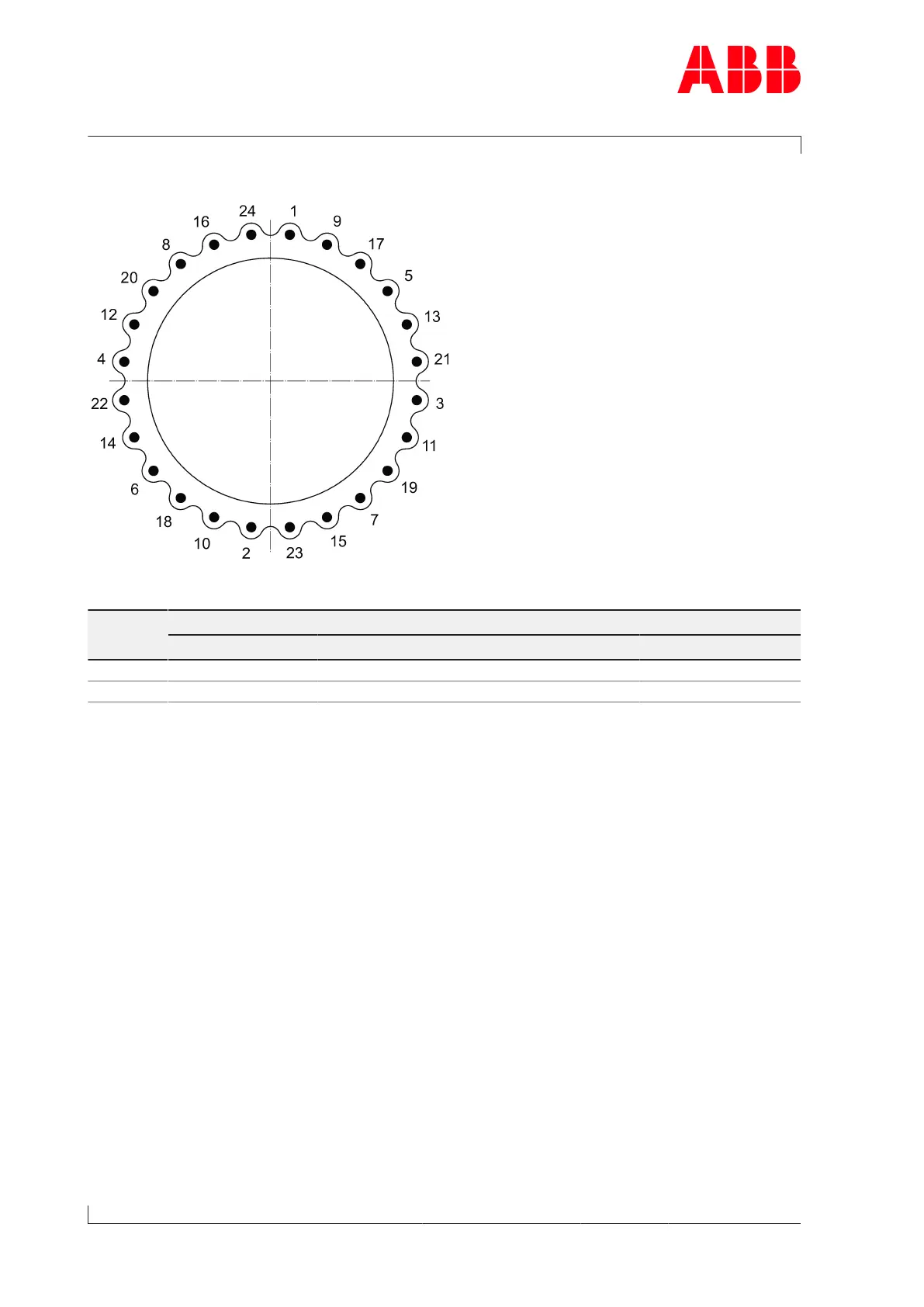

Tightening sequence
Fig.73: Flange tightening sequence
Product Tightening torque (61009) [Nm]
Step 1 Step 2 Step 3 Step 4
A170-M hand-tight 80 170 280
A175-M hand-tight 100 240 380
Table55: Tightening torques 61009
