10.4 Removing the gas outlet casing
u Mark the casing position for assembly.

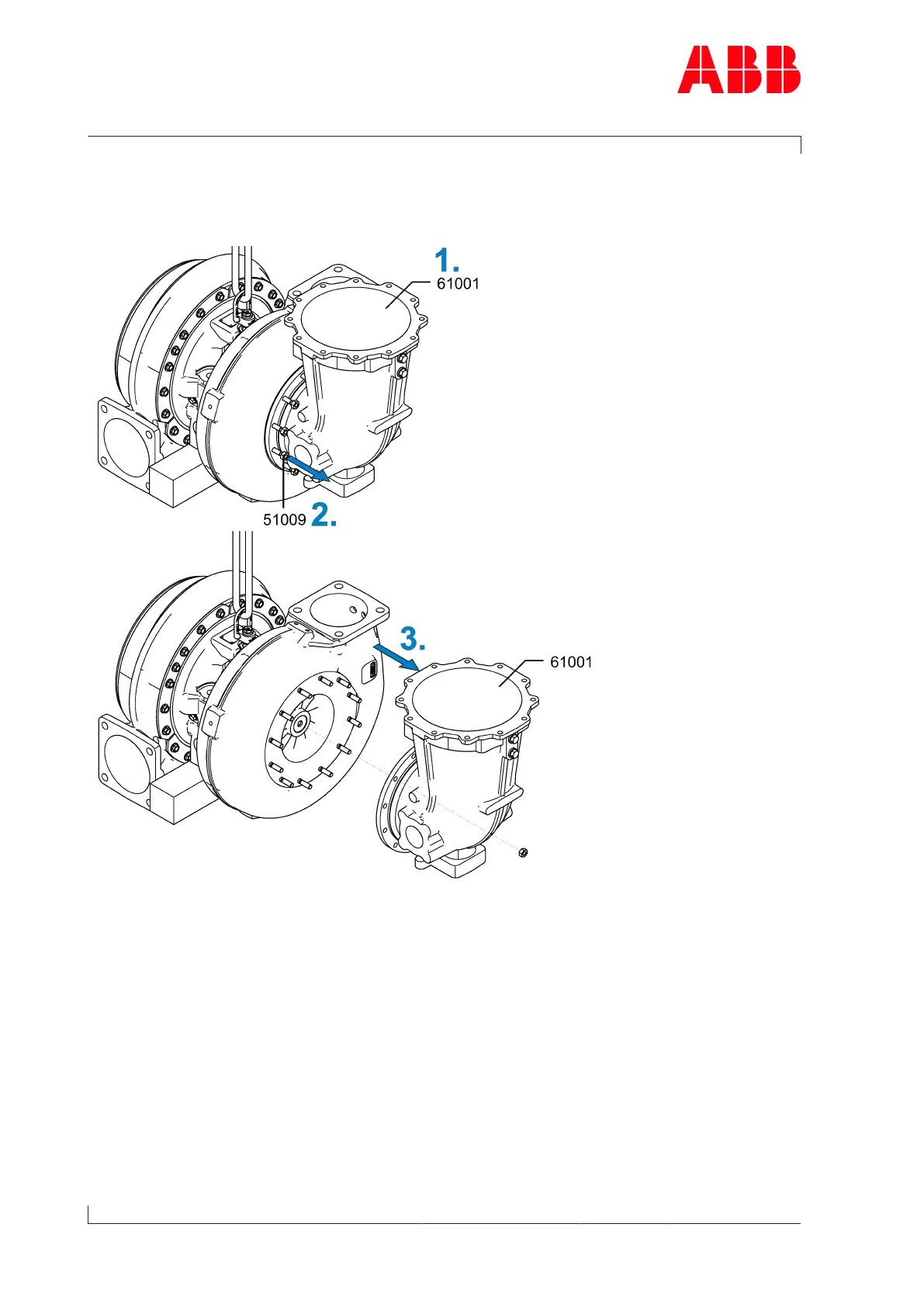

Fig.26: Removing the gas outlet casing
1. Manually secure the gas outlet casing(61001).
2. Loosen and remove hexagon nuts(51009).
3. Remove the gas outlet casing(61001).
