10.12 Installing the cartridge group

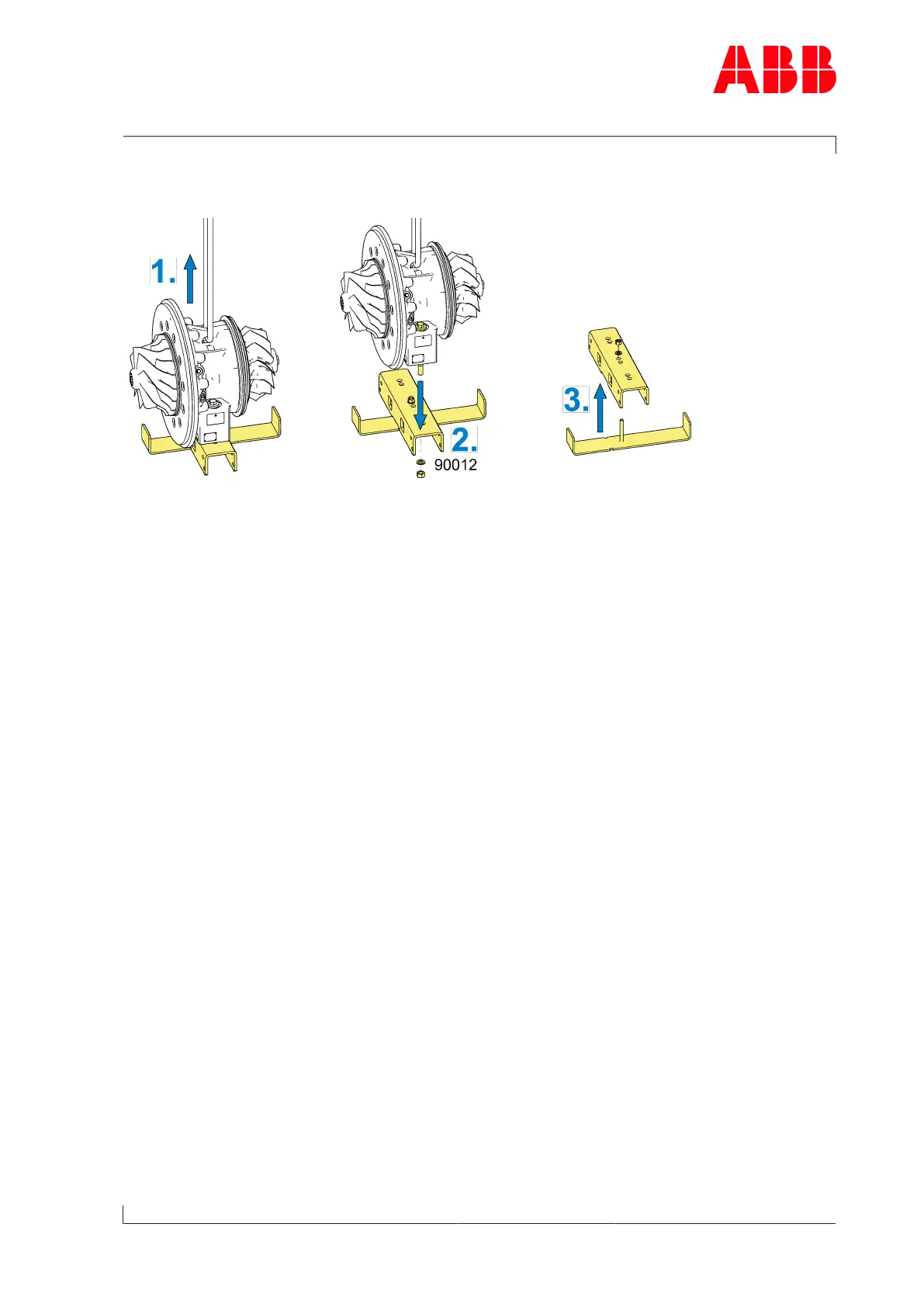

Fig.67: Lifting the cartridge group and rotating it by 90°
1. Fasten lifting gear to cartridge group and lift cartridge group.
2. Remove service support(90012).
3. Dismantle service support.
