9.7 Pressing off the casing
CAUTION
Axial force of the press-off tool
Using the press-off tool (90042), a high level of axial force can be generated.
If the casing is pressed off with too much force on one side, the rotor can be
damaged.
u Use the tool on both sides in alternation and make sure not to press off
too hard on either side.

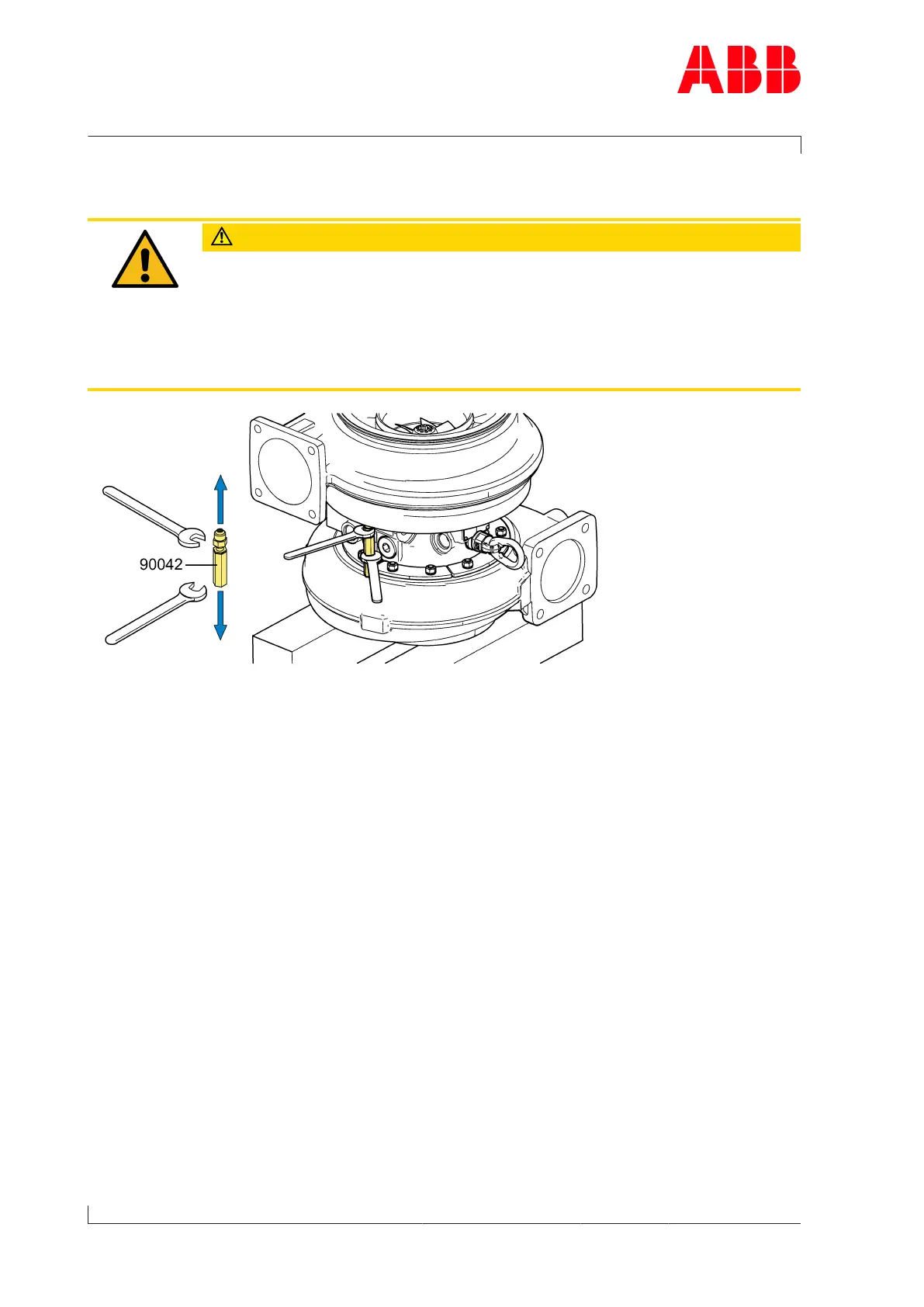

Fig.41: Press off the casing
