Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.18 Installing air inlets
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021
10.18 Installing air inlets

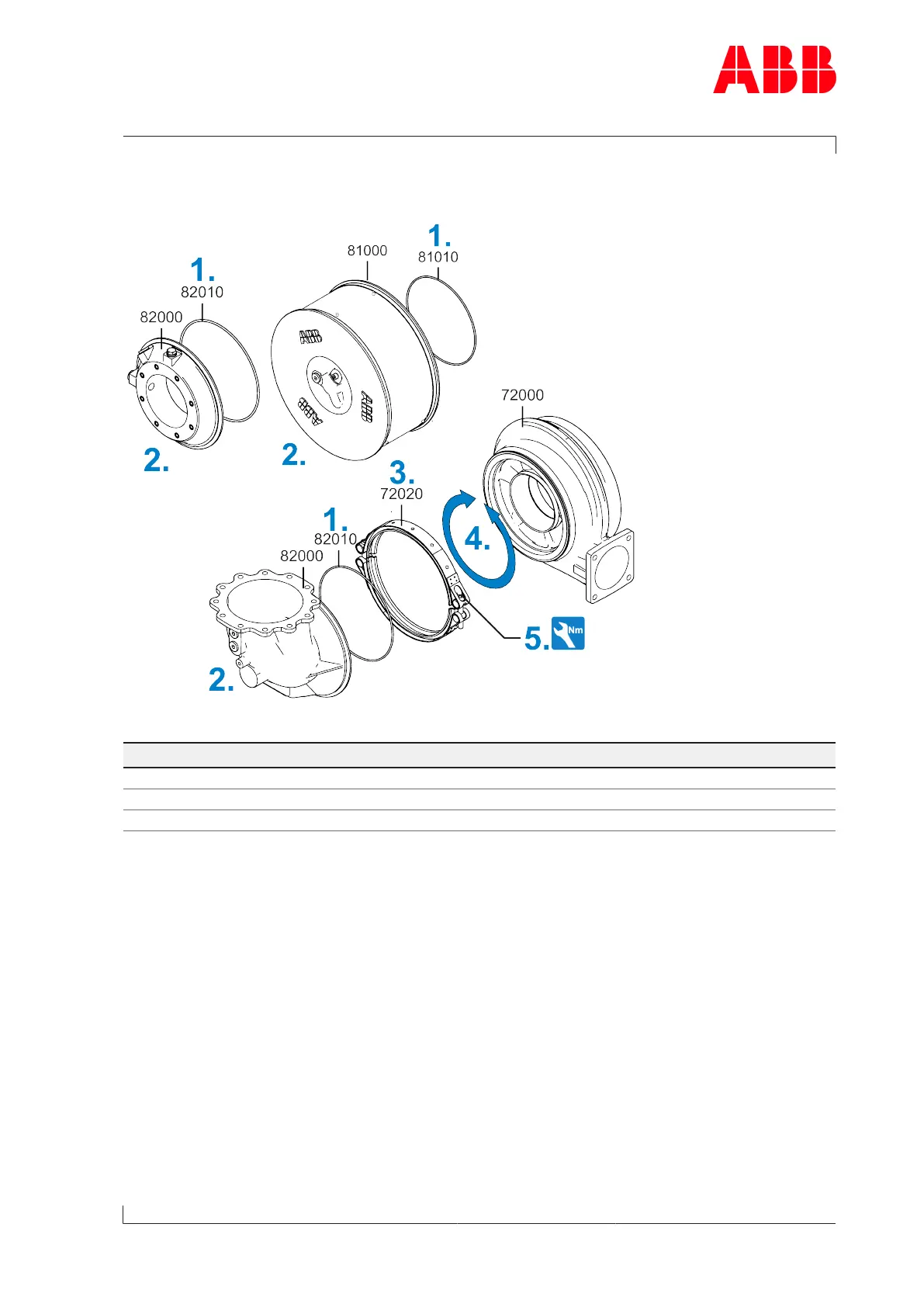

Fig.46: Installing the air inlets
Product Size Tightening torque [Nm]
TPS44 M10 30Nm
TPS48 M10 30Nm
TPS52 M10 30Nm
Table42: Tightening torque (72020)
1. Fit the new O-ring(81010/ 82010) to the filter silencer(81000) or the air suction
branch(82000).
2. Manually position the filter silencer(81000) or the air suction branch(82000) on the com-
pressor casing(72000).
3. Fit the V-clamp(72020).
4. Align the casing position of the filter silencer(81000) or the air suction branch(82000) to
the marking.
5. Tighten the V-clamp(72020).
Page 91 / 111
