Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet /
10.14 Turning the cartridge group with compressor and turbine casing
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021
10.14 Turning the cartridge group with compressor and
turbine casing

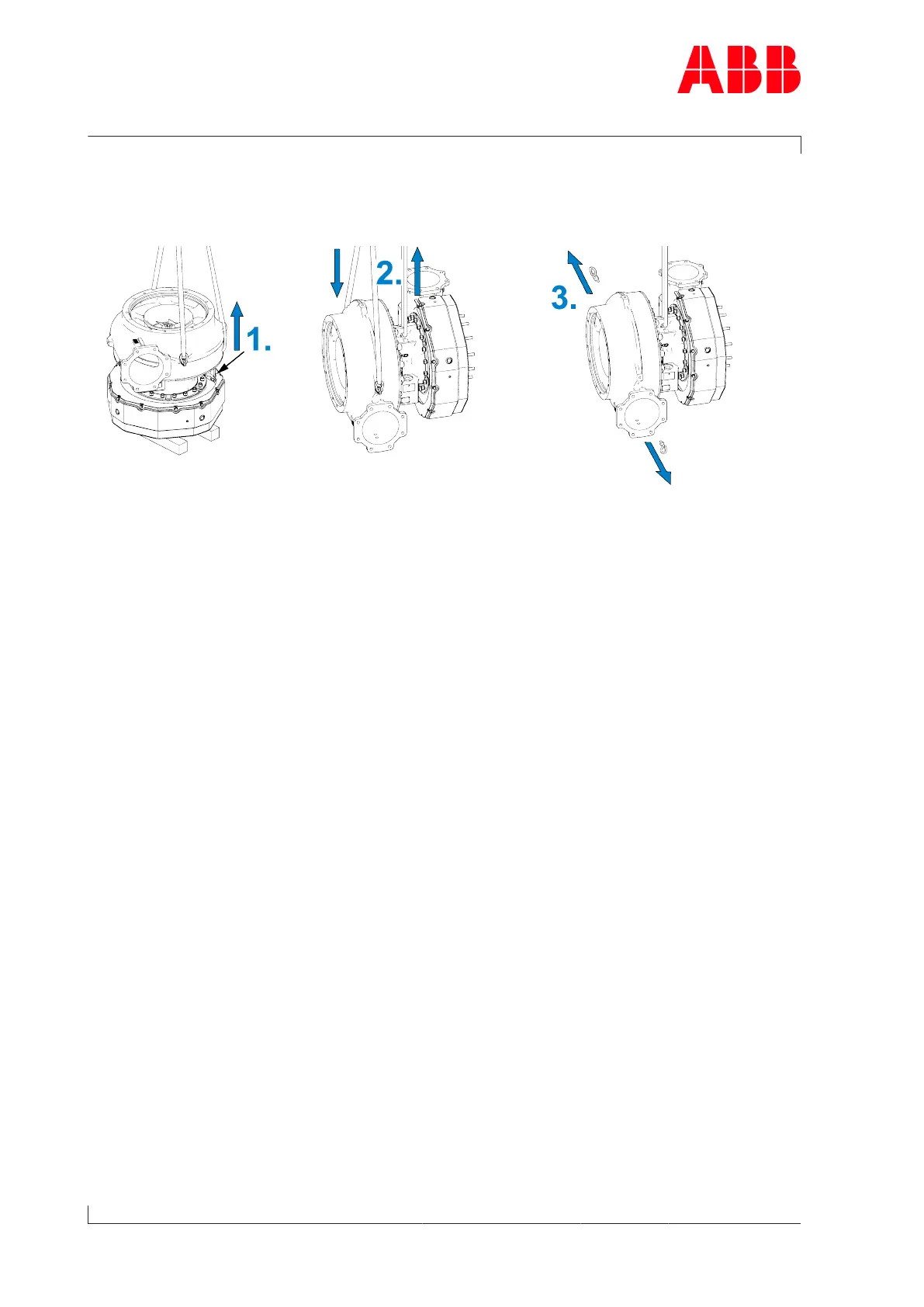

Fig.72: Turning the cartridge group with compressor and turbine casing
1. Attach second lifting gear to bearing casing and secure to the crane hook. This lifting
gear must be attached during the entire rotating procedure.
2. Lift cartridge group with compressor and turbine casing with the first lifting gear and
lower it with the second lifting gear.
3. Remove second lifting gear and swivel lifting eye.
Page 120 / 194
