11.4 Removing the nozzle ring

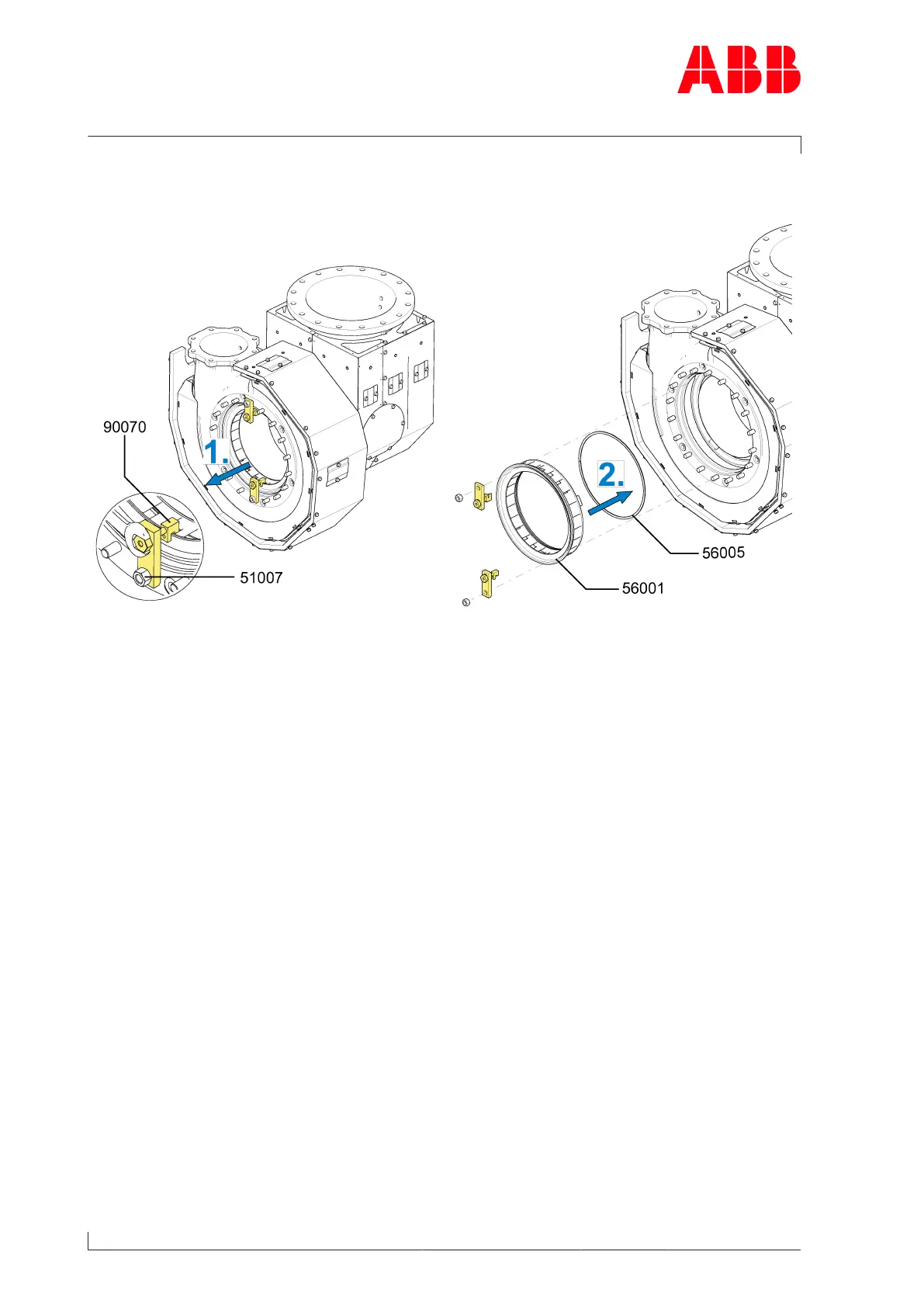

Fig.95: S_05180
1. Pull out the nozzle ring (56001) with the two extraction devices (90070).
2. Remove the lamellar sealing ring (56005).
