ABB HT613183 - Fig. 24: Layout and Overview of Speed Measurement System

Operation Manual / A130-H.. - A140-H..
5 Monitoring operation / 5.3 Turbocharger speed
© Copyright 2021 ABB. All rights reserved. HZTL4030_EN Rev.G July 2021
5.3.2 Layout and overview

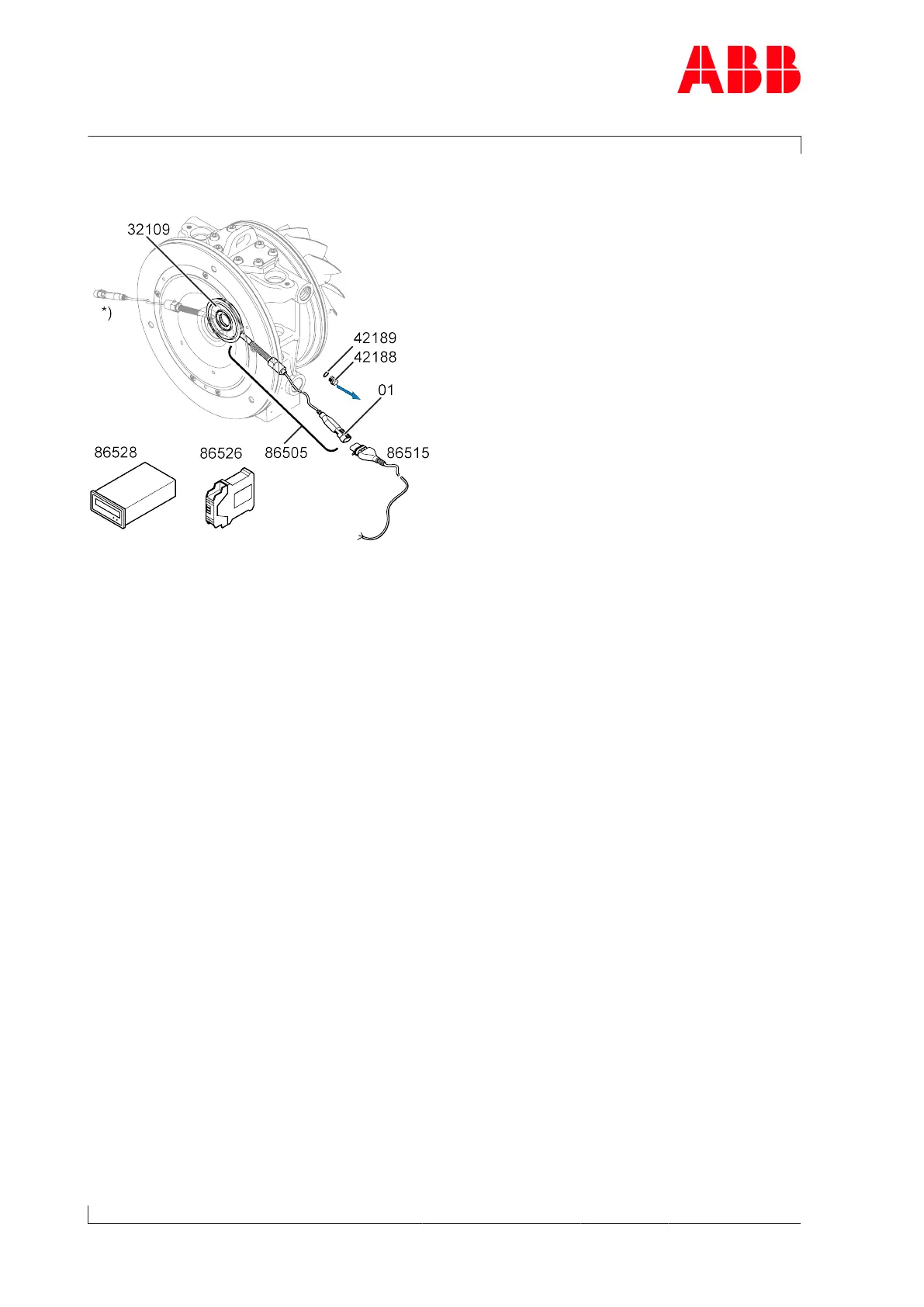

Fig.24: Layout and overview of speed measurement system
86505 Speed sensor 42188 Screw plug
86515 Cable connector 42189 Gasket
86526 F/I converter 01 Plug with integrated voltage limiter
86528 Tachometer *) Installation variant for speed sensor
32109 Sealing disc with cams
