ABB HT613689 - Fig. 52: Removing Gas Outlet Casing with Support 1

Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.2
Removing the gas outlet casing
© Copyright 2022 ABB. All rights reserved. HZTL4032_EN Rev.S February 2022

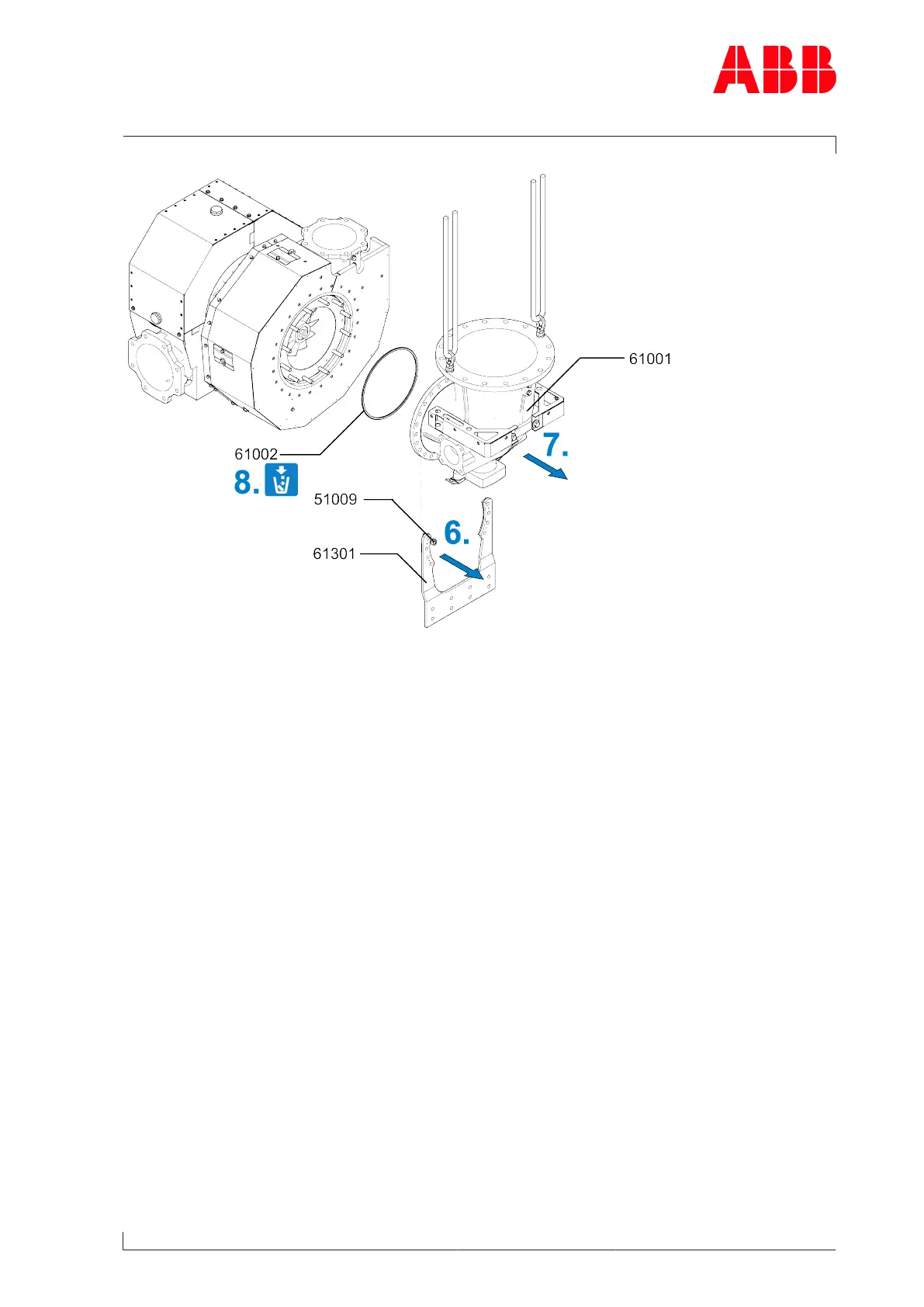

Fig.52: Removing gas outlet casing with support 1
6. Loosen nuts (51009) and remove together with support (61301).
7. Remove the gas outlet casing (61001), set it down properly in an appropriate place and
secure it.
8. Remove and dispose of the gasket(61002).
Page 103 / 198
