Operation Manual / TPL76-C
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2020 . All rights reserved. HZTL2485_EN Rev.G March 2020

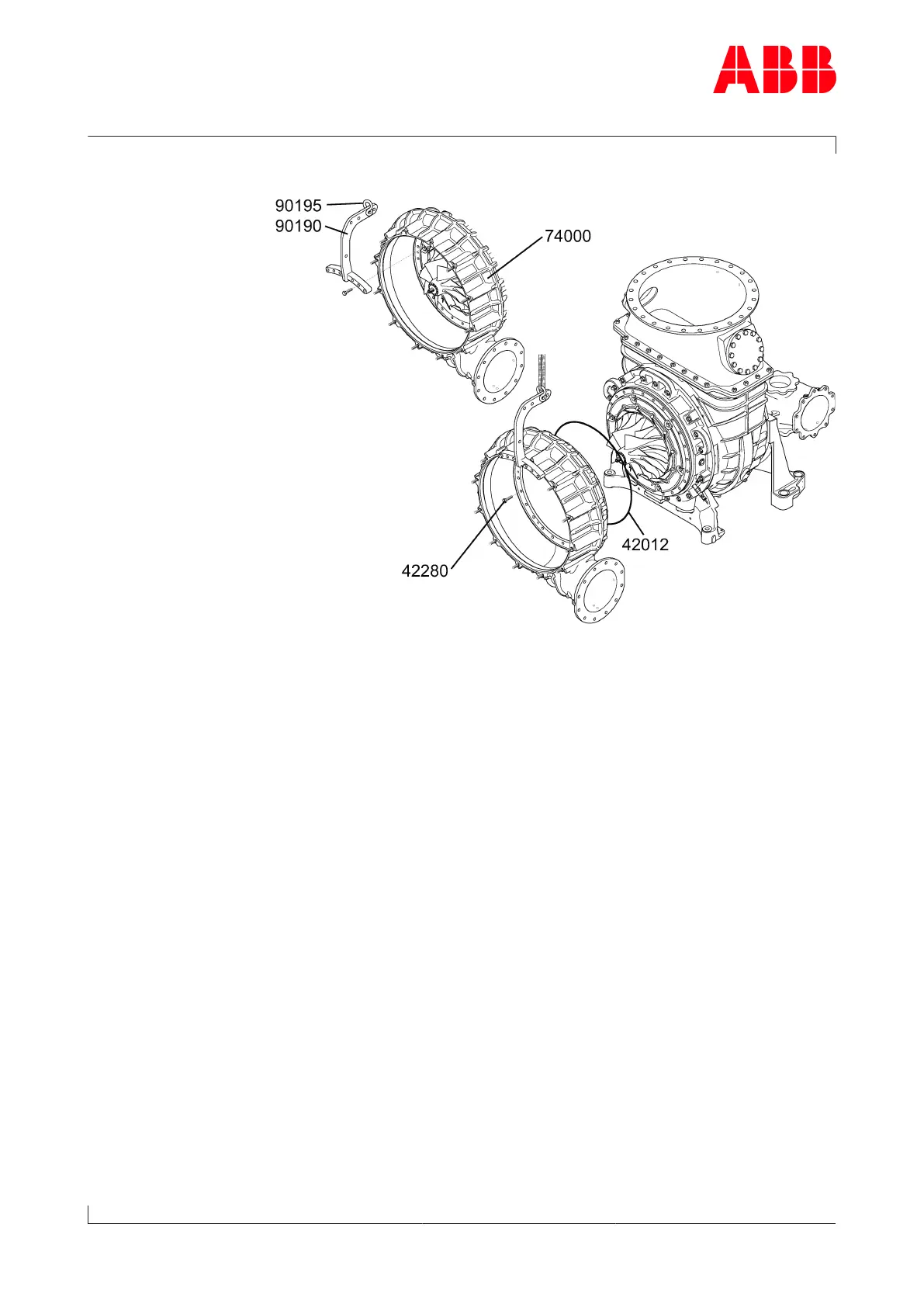

Fitting external part of compressor casing
u Fasten lifting device (90190/90195) to external part (74000) of com-
pressor casing and secure it with crane.
u Fit O-ring (42012).
u Fit external part of compressor casing (74000) and fasten using
screws (42280).
u Remove lifting device (90190/90195).
