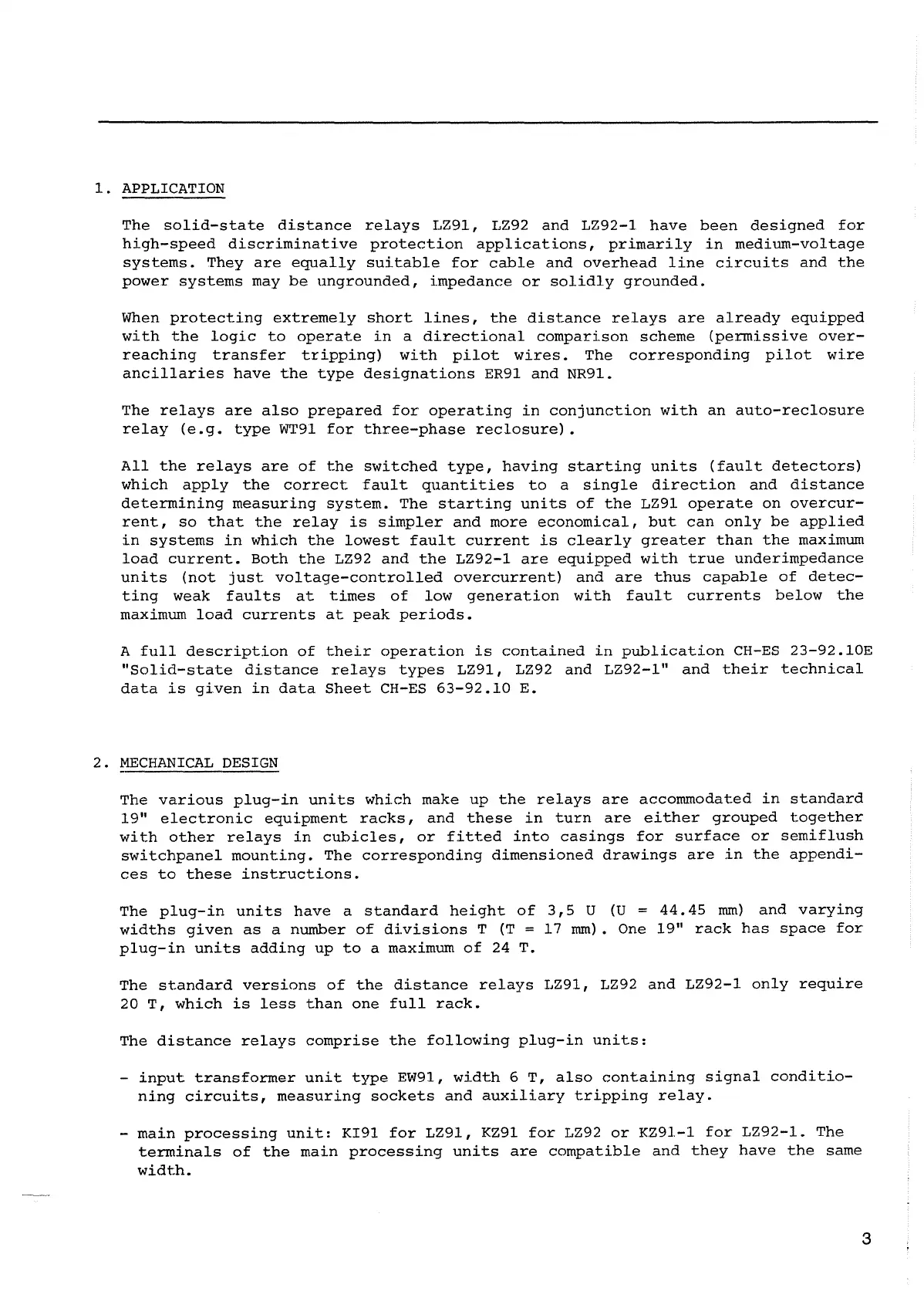

1.
APPLICATION
The
solid-state
distance
relays
LZ91, LZ92
and
LZ92-l
have
been
designed
for
high-speed
discriminative
protection
applications,
primarily
in
medium-voltage
systems.
They
are
equally
suitable
for
cable
and
overhead
line
circuits
and
the
power
systems
may
be
ungrounded,
impedance
or
solidly
grounded.
When
protecting
extremely
short
lines,
the
distance
relays
are
already
equipped
with
the
logic
to
operate
in
a
directional
comparison
scheme
(permissive
over-
reaching
transfer
tripping)
with
pilot
wires.
The
corresponding
pilot
wire
ancillaries
have
the
type
designations
ER91
and
NR91.
The
relays
are
also
prepared
for
operating
in
conjunction
with
an
auto-reclosure
relay
(e.g.
type
WT91
for
three-phase
reclosure).
All
the
relays
are
of
the
switched
type,
having
starting
units
(fault
detectors)
which
apply
the
correct
fault
quantities
to
a
single
direction
and
distance
determining
measuring
system.
The
starting
units
of
the
LZ91
operate
on
overcur-
rent,
so
that
the
relay
is
simpler
and
more
economical,
but
can
only
be
applied
in
systems
in
which
the
lowest
fault
current
is
clearly
greater
than
the
maximum
load
current.
Both
the
LZ92
and
the
LZ92-l
are
equipped
with
true
underimpedance
uni
ts
(not
just
voltage-controlled
overcurrent)
and
are
thus
capable
of
detec-
ting
weak
faults
at
times
of
low
generation
with
fault
currents
below
the
maximum
load
currents
at
peak
periods.
A
full
description
of
their
operation
is
contained
in
publication
CH-ES
23-92.lOE
"Solid-state
distance
relays
types
LZ91, LZ92
and
LZ92-l"
and
their
technical
data
is
given
in
data
Sheet
CH-ES
63-92.10
E.
2.
MECHANICAL
DESIGN
The
various
plug-in
units
which
make
up
the
relays
are
accommodated
in
standard
19"
electronic
equipment
racks,
and
these
in
turn
are
either
grouped
together
with
other
relays
in
cubicles,
or
fitted
into
casings
for
surface
or
semiflush
switchpanel
mounting.
The
corresponding
dimensioned
drawings
are
in
the
appendi-
ces
to
these
instructions.
The
plug-in
units
have
a
standard
height
of
3,5
U
(U
=
44.45
mm)
and
varying
widths
given
as
a number
of
divisions
T
(T
= 17 mm). One
19"
rack
has
space
for
plug-in
units
adding
up
to
a maximum
of
24
T.
The
standard
versions
of
the
distance
relays
LZ91, LZ92
and
LZ92-l
only
require
20
T,
which
is
less
than
one
full
rack.
The
distance
relays
comprise
the
following
plug-in
units:
-
input
transformer
unit
type
EW91,
width
6
T,
also
containing
signal
conditio-
ning
circuits,
measuring
sockets
and
auxiliary
tripping
relay.
-
main
processing
unit:
KI91
for
LZ91,
KZ91
for
LZ92
or
KZ91-l
for
LZ92-l.
The
terminals
of
the
main
processing
units
are
compatible
and
they
have
the
same
width.
3
