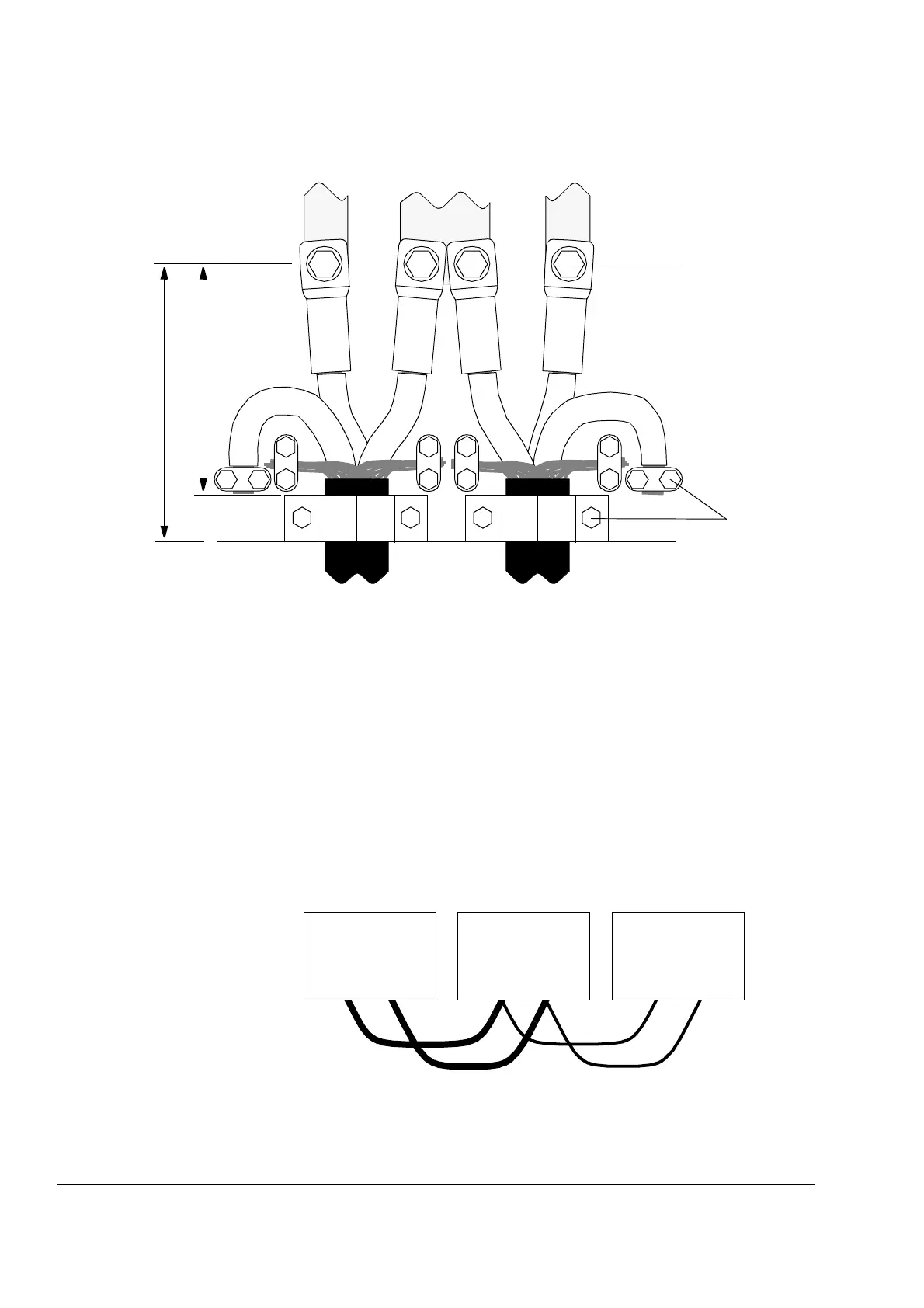

Figure 4-11 Cabling inside NBRA-658/659/669.
Notes on
NBRA-658/659/669
Power Connections
• When the NBRA unit is installed in a metal cabinet and reliably
connected to the chassis, the cable screens (and third conductors, if
present) can be earthed at the cabinet entry point (see example B
on previous page).
• The UDC+ and UDC– terminals of the ACS 604 unit are M10
(tightening torque: 35 Nm).
• When two resistors are connected in parallel, it is practical to chain
the resistors as shown below.
3
From ACS 600 To Resistor(s)
1 12
3
2
137 mm
161 mm
35 Nm
6 Nm
NBRA-6xx
R+ R–
Resistor
R+ R–
Resistor
R+ R–
To Next Page
