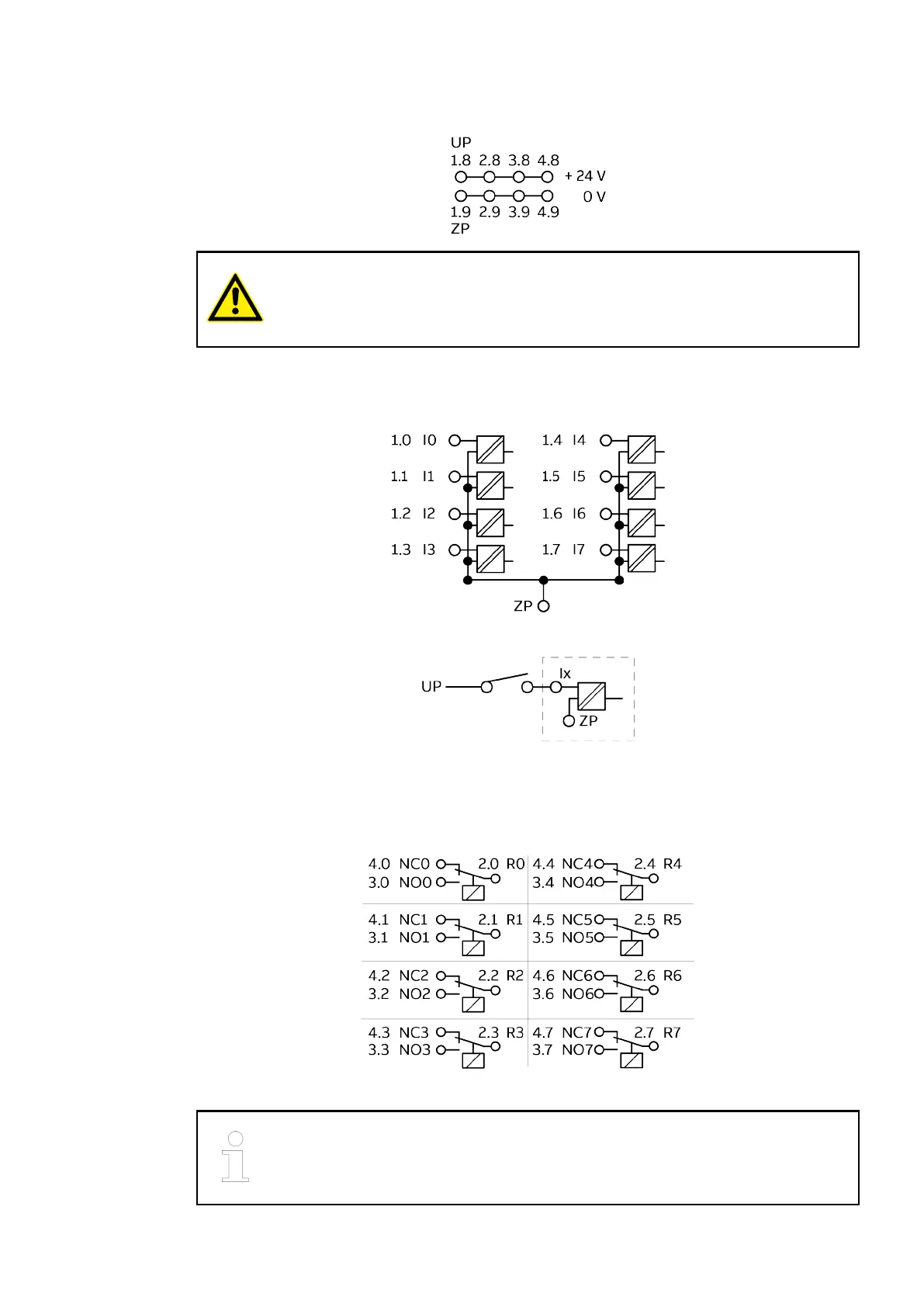

24.4.1 Process Supply Voltage
CAUTION!
The process supply voltage must be included in the earthing concept (e. g.
earthing of the minus pole).
24.4.2 Inputs
Fig. 36: Example for connection input
24.4.3 Outputs
If the relay outputs have to switch inductive DC loads, free-wheeling diodes
must be circuited in parallel to these loads.
Example
DX522
Connection > Outputs
2019/11/15 3ADR024117M02xx, 11, en_US 193
