2.4.1 Process Supply Voltage
CAUTION!
The process supply voltage must be included in the earthing concept (e. g.
earthing of the minus pole).
2.4.2 Inputs

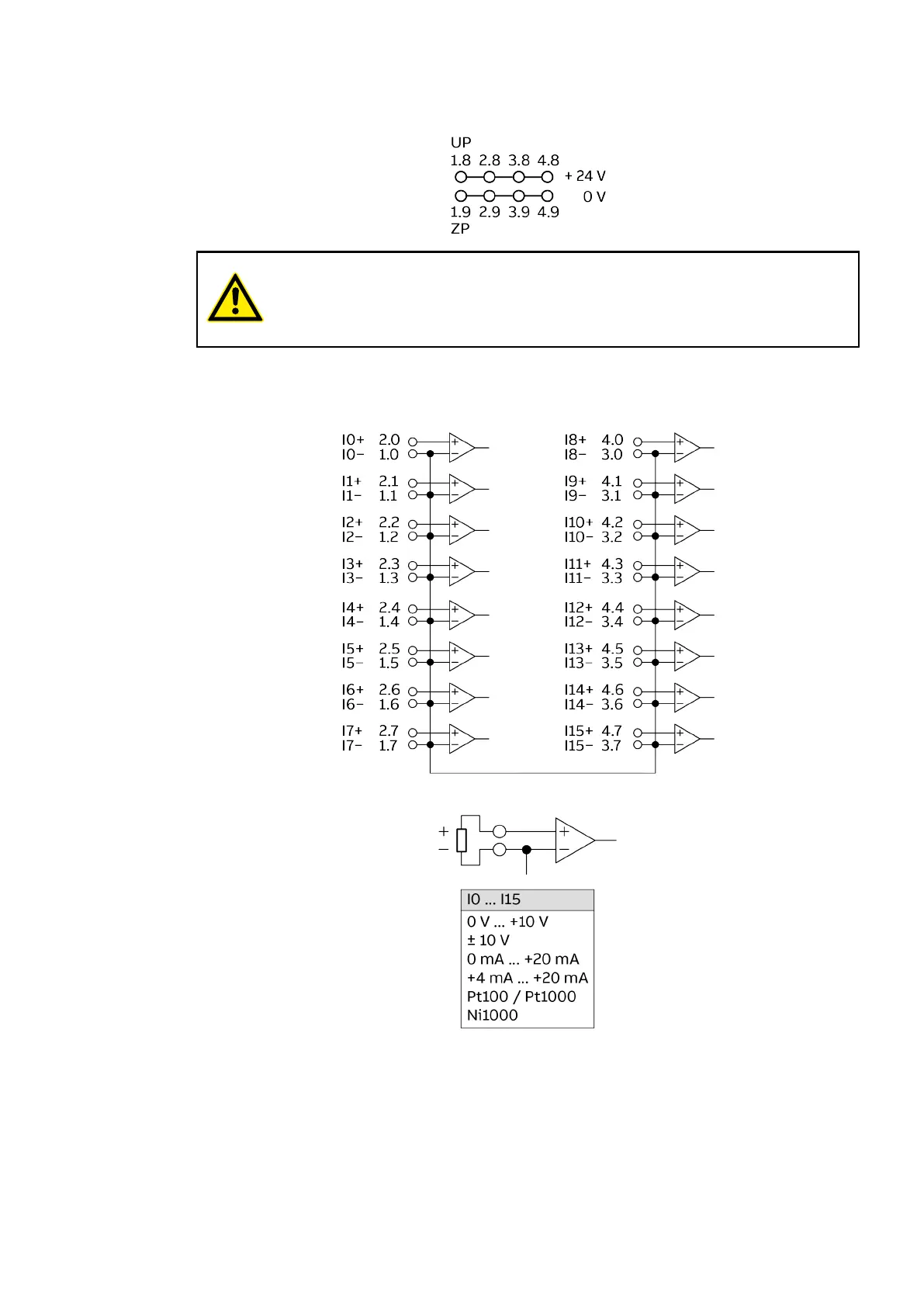

Fig. 3: Example for connection input
Example
AI523
Connection > Inputs
2019/11/15 3ADR024117M02xx, 11, en_US 21
