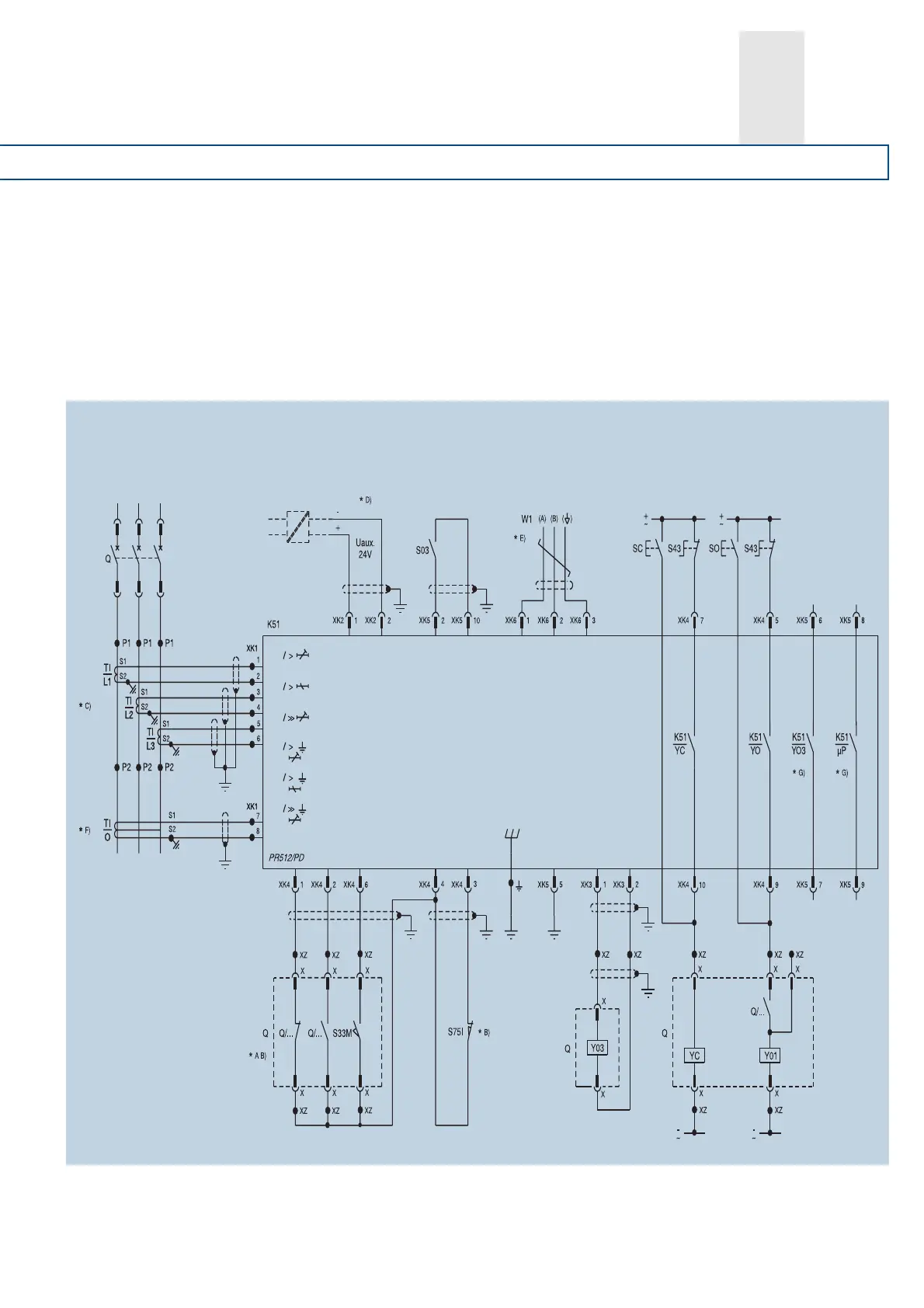

PR512/PD (50-51-50N-51N)
Operating state shown
The diagram is shown under the following conditions:
– circuit-breaker open and connected (see note B)
– circuits de-energised
– circuit-breaker closing springs discharged
– overcurrent release not tripped
