ABB STD 420E

Fig. 1 ENG 28
Pos: 8 /7x7/Inhalt/6583 / 6584/6583-500 / 6584- 500_eng @ 0\mod_117689 2535310_1.doc @ 10304

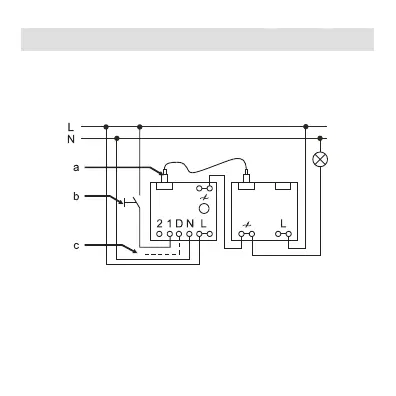

11 Fig. 1
Capacity extension of the Universal Master Dimmer 6583-
xxx, STD-500U with universal power module 6584-xxx,
STD-420 pushbutton mode.
ENG
6583-xxx
(STD-500U)
6584-xxx
(STD-420E)
a Data line RJ12 (25 cm)
b Extension unit, e.g. 2020 US
c Control module 6597-xxx, STD-SBS
