ABB Switchsync F236

Controlled Switching — Buyer´s Guide
L-1
Edition 2, 2006-09
Drawings Technical Information

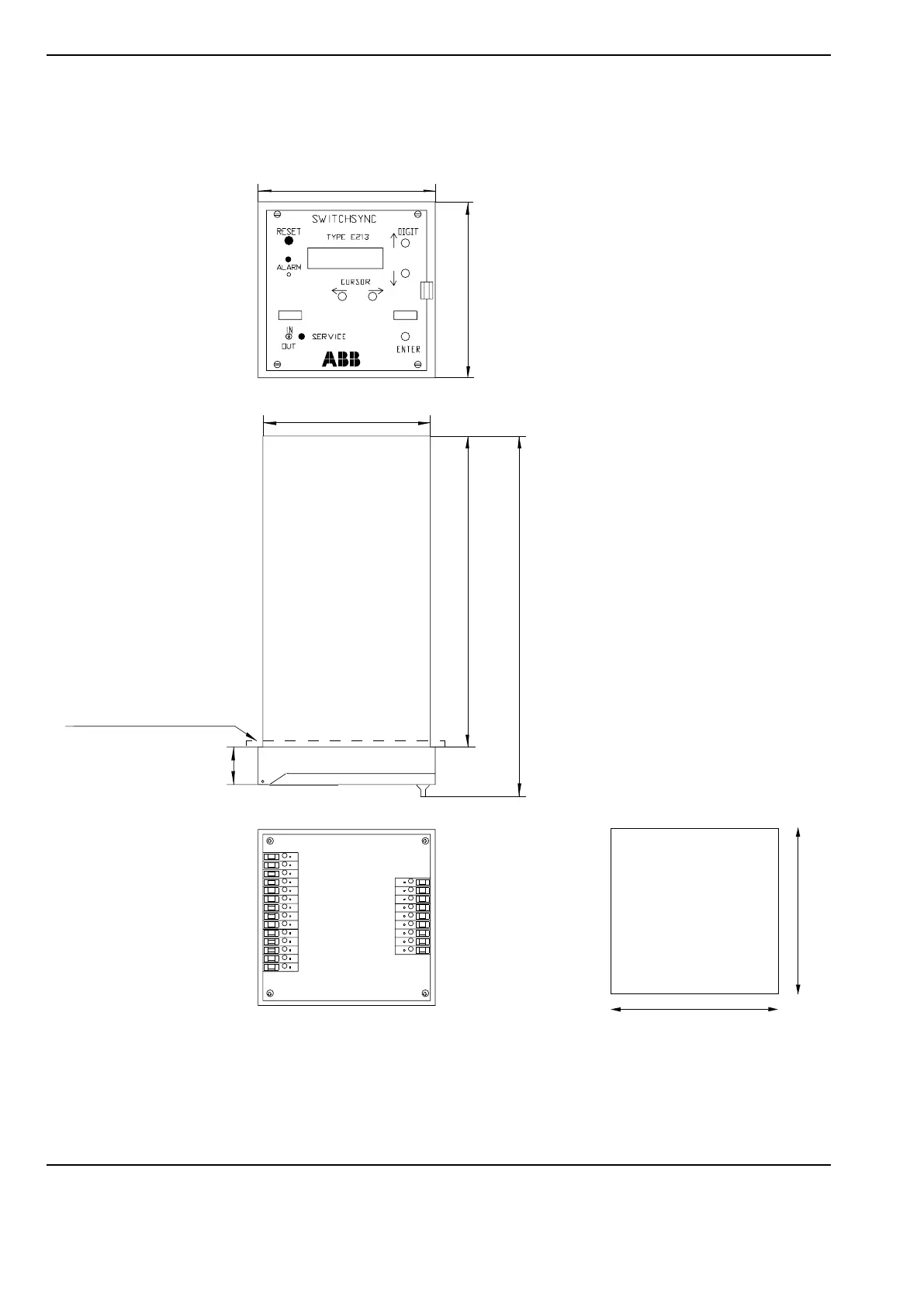

Dimensions for Switchsync
TM
E113 and E213
138
146
2
5
7
2
9
8
3
1
Panel thickness 2.5-5 mm
144
140 mm
138 mm
Mounting Hole Dimensions
Front view
Top view
Rear view
