8 VM1 - USER MANUAL
—
4. Handling

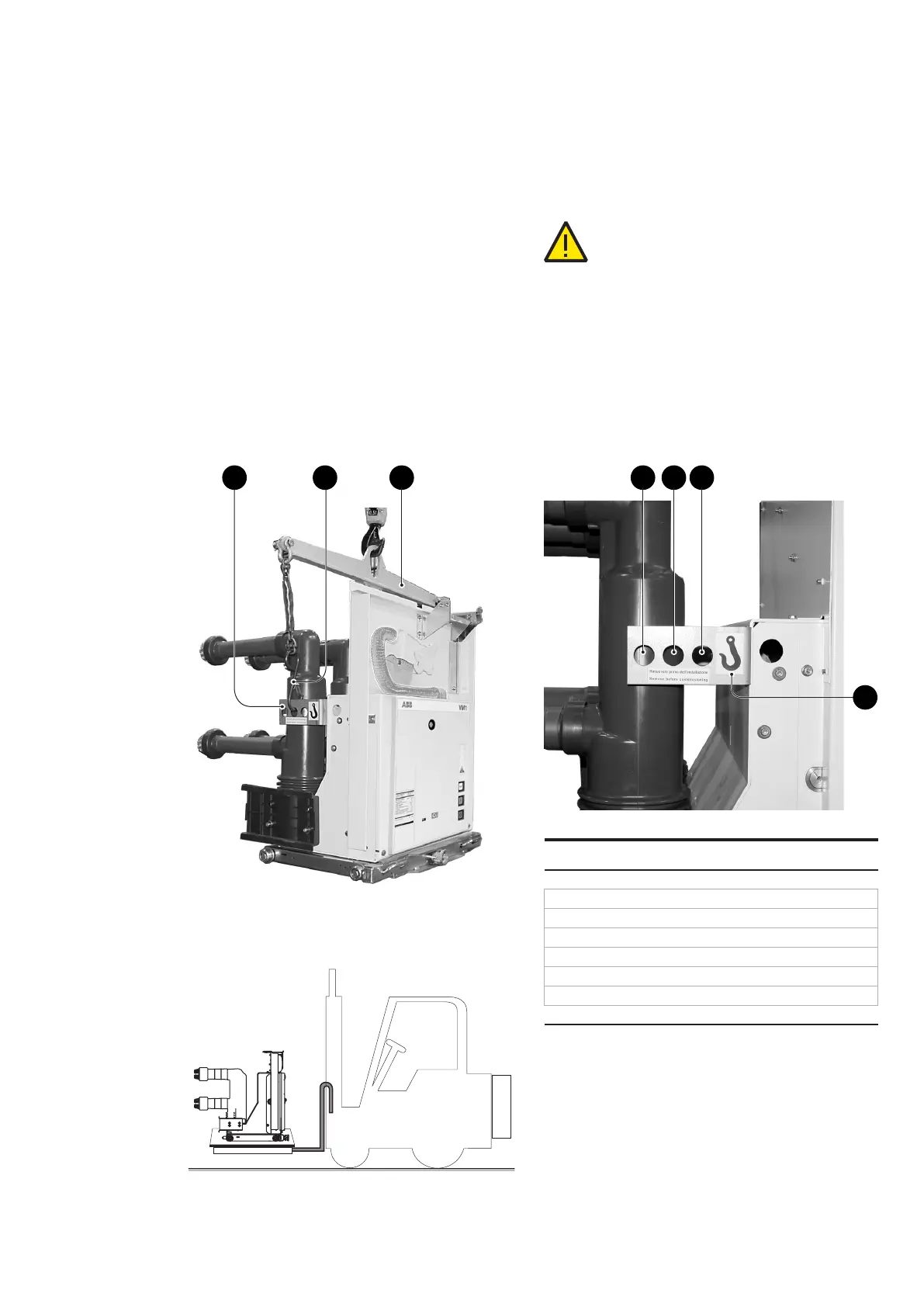

Fig. 2
Version
Pole centre
distance
Rated current Hole
Fixed 150-210 mm up to 1250 A A
Fixed 275 mm from 1600 to 2500 A A
Fixed 210 mm from 1600 to 2000 A A
Withdrawable 150 mm up to 1250 A A
Withdrawable 210 mm up to 1250 A C
Withdrawable 210 mm from 1600 to 2500 A B
Withdrawable 275 mm up to 1250 A B
Withdrawable 275 mm from 1600 to 2500 A C
Fig. 3
Before carrying out any operations, always make
sure that the capacitors are discharged.
To lift and handle the circuit breaker, proceed as
follows (fig. 2):
• use a special lifting tool (1) (not supplied) fitted
with ropes with safety hooks (2);
• insert the hooks (2) in the supports (3) fixed to
the frame of the circuit breaker and lift. Latch
the hooks (2) into the support holes (3)
according to the type of apparatus (see table);
• on completion of the operation (and in any case
before putting into service) unhook the lifting
tool (1) and dismantle the supports (3) from the
frame.
During handling, take great care not to stress the
insulating parts and the terminals of the circuit
breaker.
The apparatus must not be handled by
putting lifting devices directly under the
apparatus itself. Should it be necessary
to use this technique, put the circuit
breaker onto a pallet or a sturdy
supporting surface (see fig. 3). In any
case, it is always advisable to carry out
lifting using the supports (3).
