9 Disassembly and assembly / 9.10 Dismantling the nozzle ring (≤ A275-
L)
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021
9.10 Dismantling the nozzle ring (
≤
A275-L)

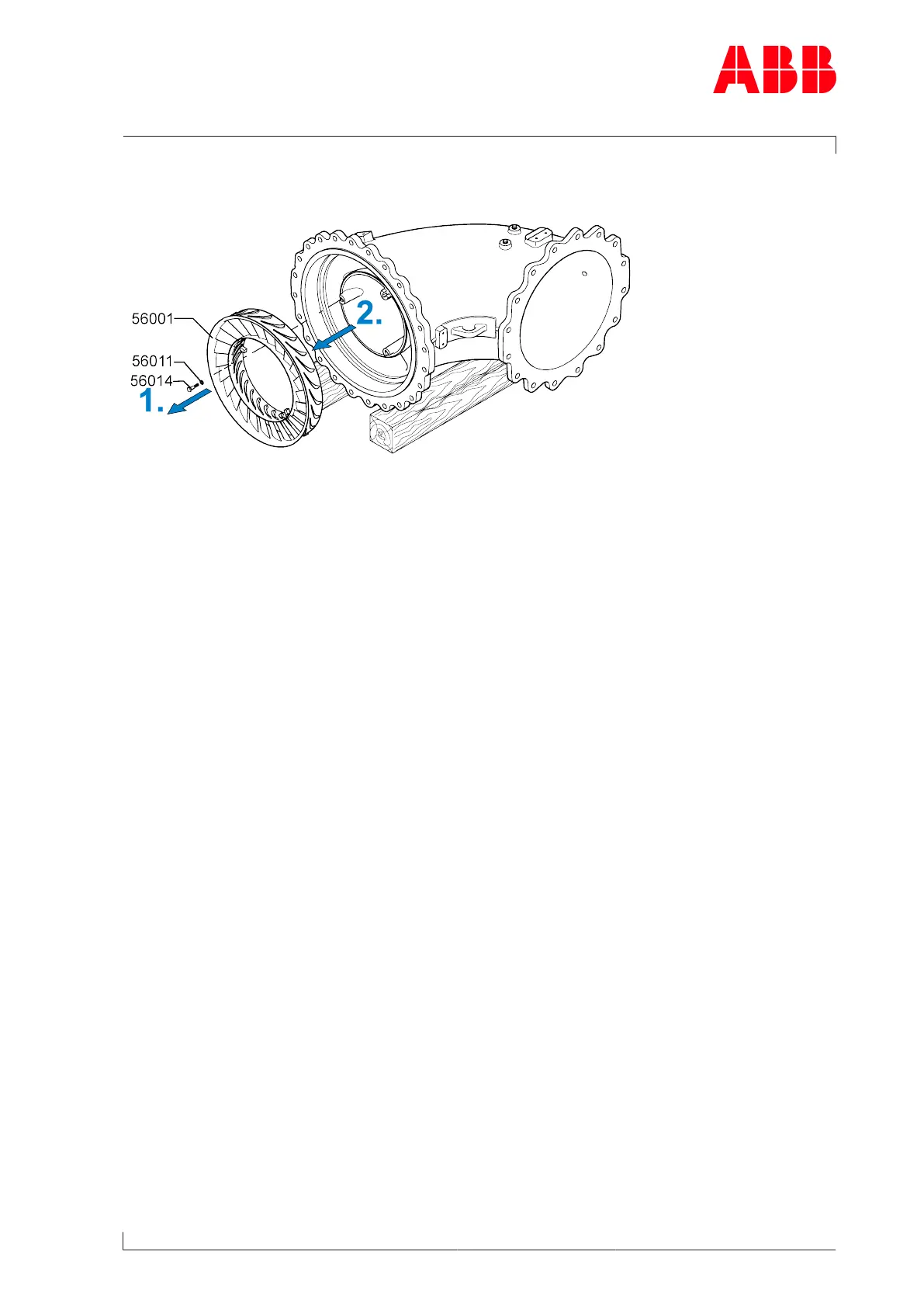

Fig.46: Dismantling the nozzle ring (A275-L and smaller)
1. Loosen screws(56014) and remove with washers(56011).
2. Remove and put down nozzle ring(56001).
