Abbey Topcat TC0 - Mounting; Powering

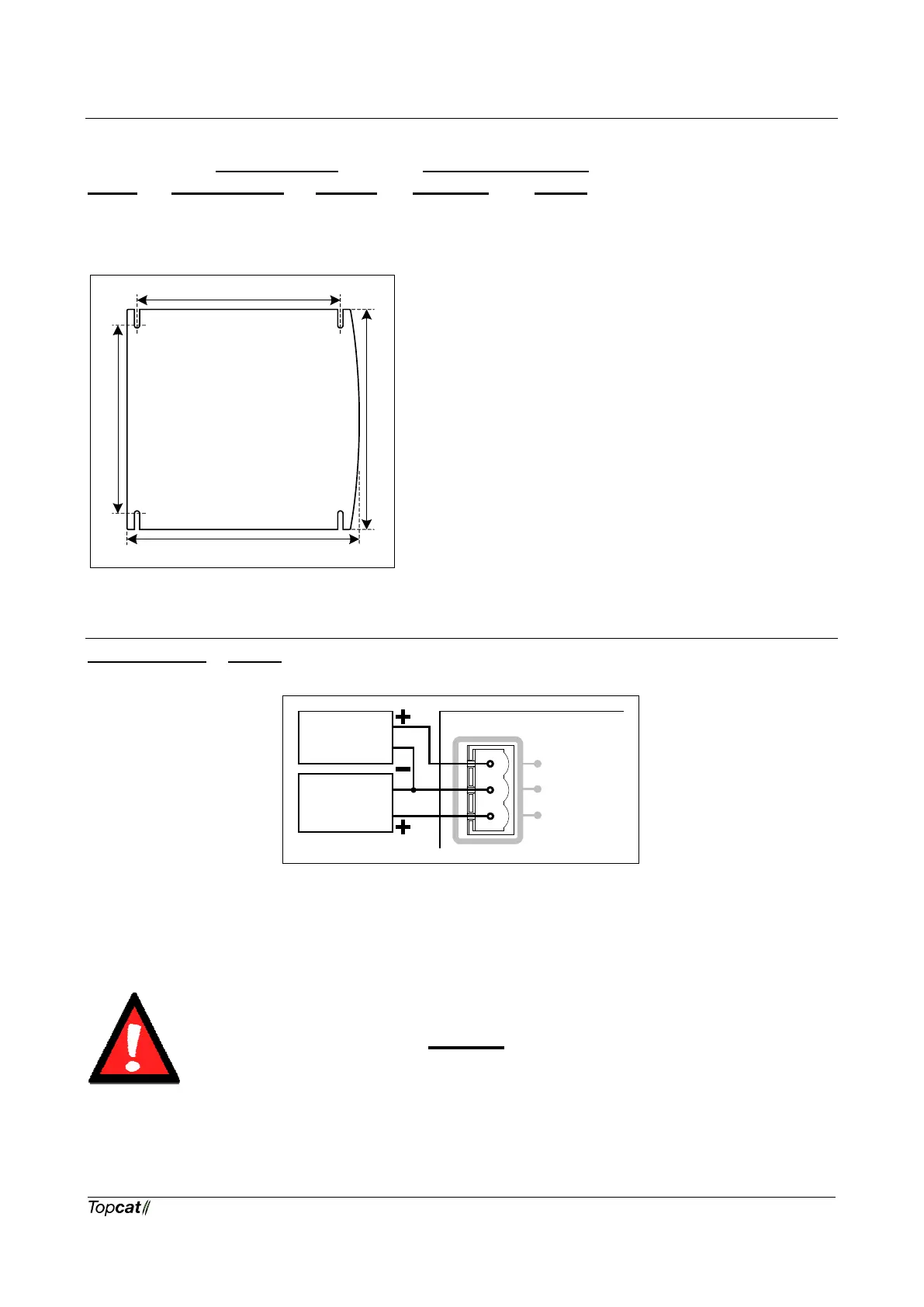

Mounting
Mount
Topcat
against a flat surface using four M5 screws.
Screw Spacing Outside Dimensions
Model Horizontal (A) Vertical Width (B) Height
TC0 89.5 mm 141 mm 112 mm 168 mm
TC1 121.5 mm 141 mm 143 mm 168 mm
TC3 184.5 mm 141 mm 206 mm 168 mm
B
A
141 mm 168 mm
Mounting Template
Powering
Voltage Range Rating
11~36V DC 1.5A @ 12V DC 0.75A @ 24V DC
DC Supply & External Load
+
-
11-36VDC
POWER
11-36V DC
SUPPLY
+
12V SW
12V LOAD
An external power option can be installed in
Topcat
that can provide a switched
13.8V supply up to 1A through pins 2 and 3 of the power connector as shown. This
can be used to power an external device such as a cellular modem.
Connect an antenna before powering up Topcat
Depth is 125mm, plus front clearance for
wiring (at least 70mm for antenna jack)
Installation Guide 1 IG-671-2.2-2015-Mar
