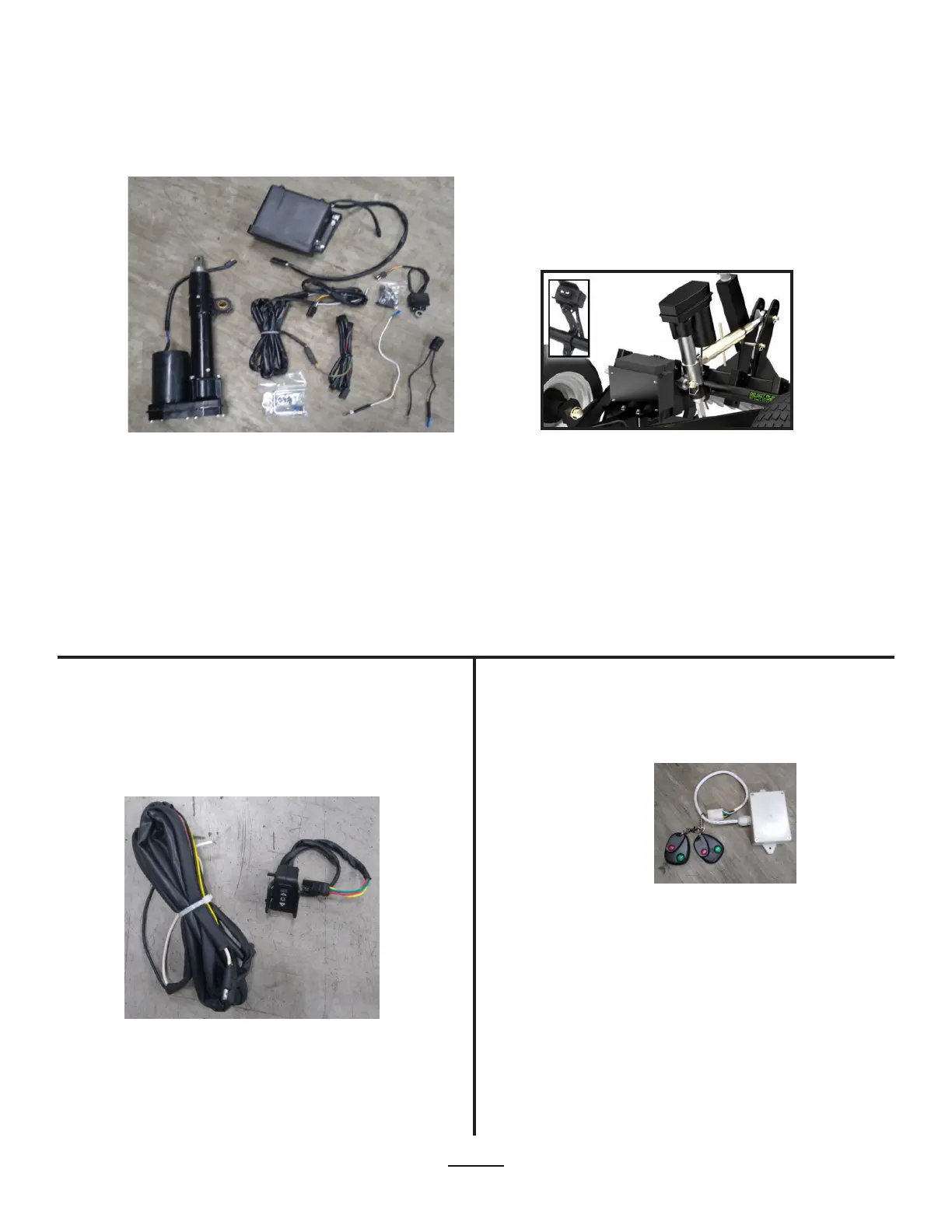

10-90282 KIT: ELECTRIC ACTUATOR
ABI-WCK2 WIRELESS REMOTE
W/2 KEY FOBS
2036 WIRING HARNESS TOW
VEHICLE SIDE WITH ROCKER
SWITCH
If 10-90282 Electric Actuator Kit is ordered, the
wireless remote can also be ordered to run the
actuator remotely. Open the Black Box from 10-
90282 kit. (Fig 32). NOTE: Black box does NOT need
to be removed from Rascal to install the wireless
system - black box in views is only removed for
installation demonstration.
Locate the preinstalled 4 pole connector inside the
Black Box, which has yellow, green, black, and
white wires connected to it (Fig 33).
NOTE: TO AVOID ELECTRICAL DAMAGE TO THE UNIT BY SPLICING THE RASCAL WIRE HARNESS INTO THE TOW
VEHICLE WIRING SYSTEM AND POSSIBLY REVERSING THE WIRES, OR THE TOW VEHICLE HAVING A POSITIVE GROUND
RELAY SYSTEM, CONNECT THE WIRING HARNESS DIRECTLY TO THE TOW VEHICLE BATTERY (BLACK TO GROUND AND
RED TO POSITIVE).
The optional electric actuator kit replaces the
manual square hand jack to raise and lower the
wheel system on the Rascal. This allows the ability
to raise and the unit from the seat of the tow vehicle
using a switch secured to the handlebars.
An installation video and set up guide as well as troubleshooting videos can be found on the support page at abisupport.com:
https://www.abiattachments.com/wp-content/uploads/2019/06/Actuator-Setup-Guide2-2013.pdf
https://www.abiattachments.com/guides/rascal-product-manual/#section-3
https://www.youtube.com/watch?v=SEhCApqXQIY
https://www.youtube.com/watch?v=j2K_guT1zo8
