ABI Attachments TR3 Rake - Stabilizing Wheel Mounting; Leveling Blade and Rake Alignment; Setting Scarifiers for Use

Step 4:

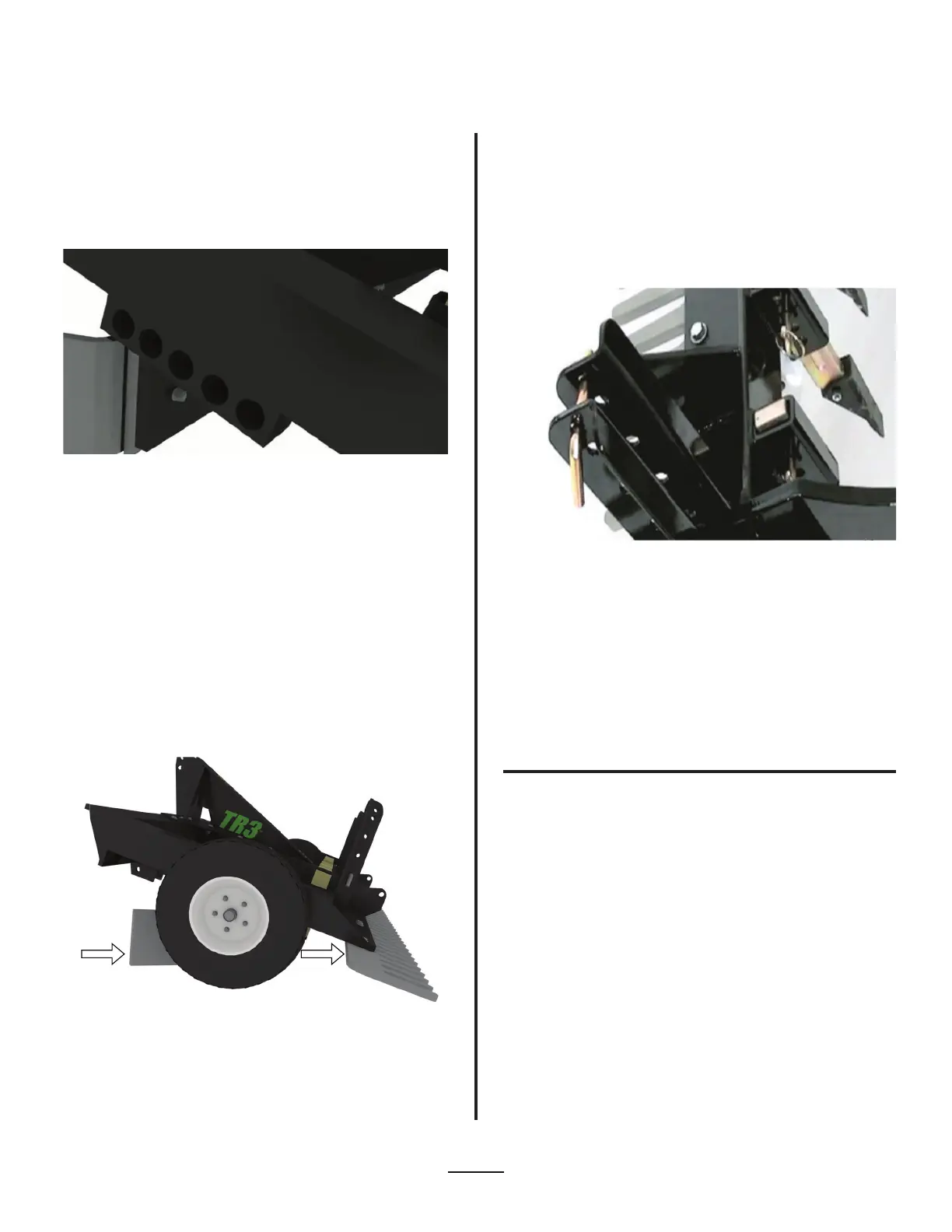

Make sure the Stabilizing wheels are mounted in the middle
hole on the tire mounted bracket. This can be adjusted later
if needed. For now make sure the tire is mounted in the
center hole.
Setting Scarifiers For Use
Step 5:
With the TR3 and Tractor on a hard flat surface, and the
Scarifiers lied out of play, adjust the TR3 using the Top
Link (shown on page 10 Step 1 Fig. 1) so that the Leveling
Blade and the Finish Rake touch at the same time. Once
the Leveling Blade and Finish Rake touch at the same
time; li the TR3 and set it back down. This will ensure that
everything is properly adjusted. If Leveling Blade and Finish
Rake are not touching at the same time continue to adjust
the TR3 using the Top Link until they touch aer the TR3 has
been lied and lowered. The TR3 may need to be adjusted
multiple times for it to be level. Make sure to raise and lower
the TR3 aer every adjustment.
Before setting the Scarifier’s for use in an Arena, check
the level of footing throughout the Arena. If the footing
height varies throughout the Arena, it may need to be
leveled, using the TR3; before using the Scarifier’s. For
assistance with leveling the Arena, read section “Leveling
an Arena” below.
To move the Scarifiers up and down, raise the
TR3 off the Ground. Then remove the ¼” Lynch pin from
the ½” Bent pin, remove the ½” Bent pin. Next, move the
Scarifier up or down until the holes realign at the depth
desired, and reinsert the ½” Bent pin. Secure the ½” Bent
pin by putting back in the ¼” Lynch pin.
When the Scarifiers are pinned in the 2nd hole from the
top on the Scarifier tube, the Scarifier’s will be set to rip
at about 2 ½”- 3”. Adjust the Scarifiers up or down for
more or less depth, as needed for use.
NOTE: Due to 3 point hook ups on some models of tractors,
it may be necessary to move the tires on the TR3 forward or
back a hole to properly adjust the TR3. If you are not able
to adjust the TR3 so that the Leveling Blade and Finish Rake
touch at the same time try moving the wheel forward one
hole and then repeat Step 5.
