P. 17
MS01010031

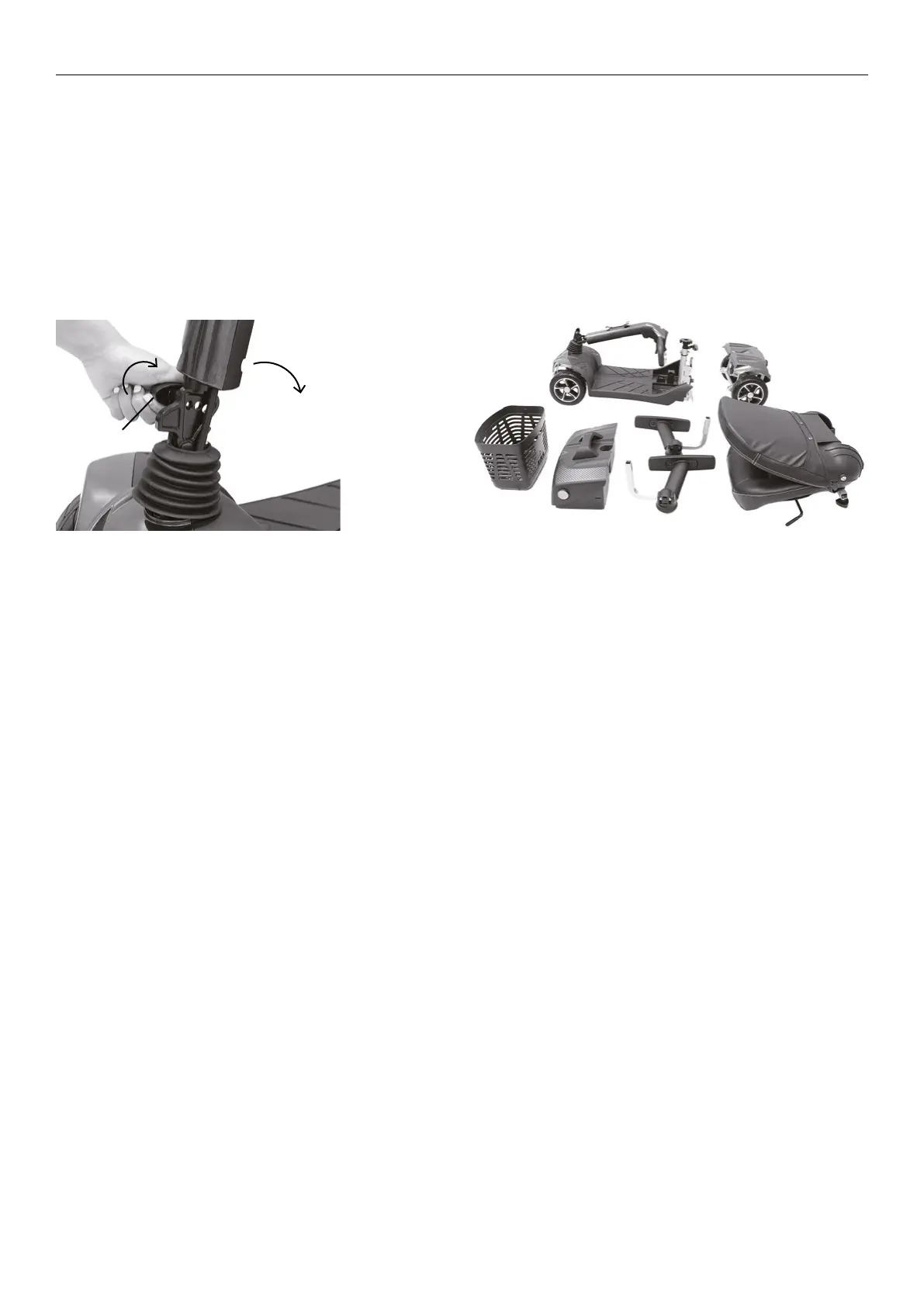

TILLER FOLD METHOD
Turn Cap (E) to fold down the Tiller (M) to the
lowest position as shown. When the Tiller (M)
is in the lowest position, it can be locked into
place with the tiller angle adjuster.
ASSEMBLING YOUR SCOOTER
Reassemble the scooter by reversing the above disassembly instructions.
(E)(E)
(M)(M)
DISASSEMBLING
The Scooter can be disassembled into 7 main
parts as shown below.
