Abit AV8 - Additional IEEE1394 Port Headers

Hardware Setup 2-11

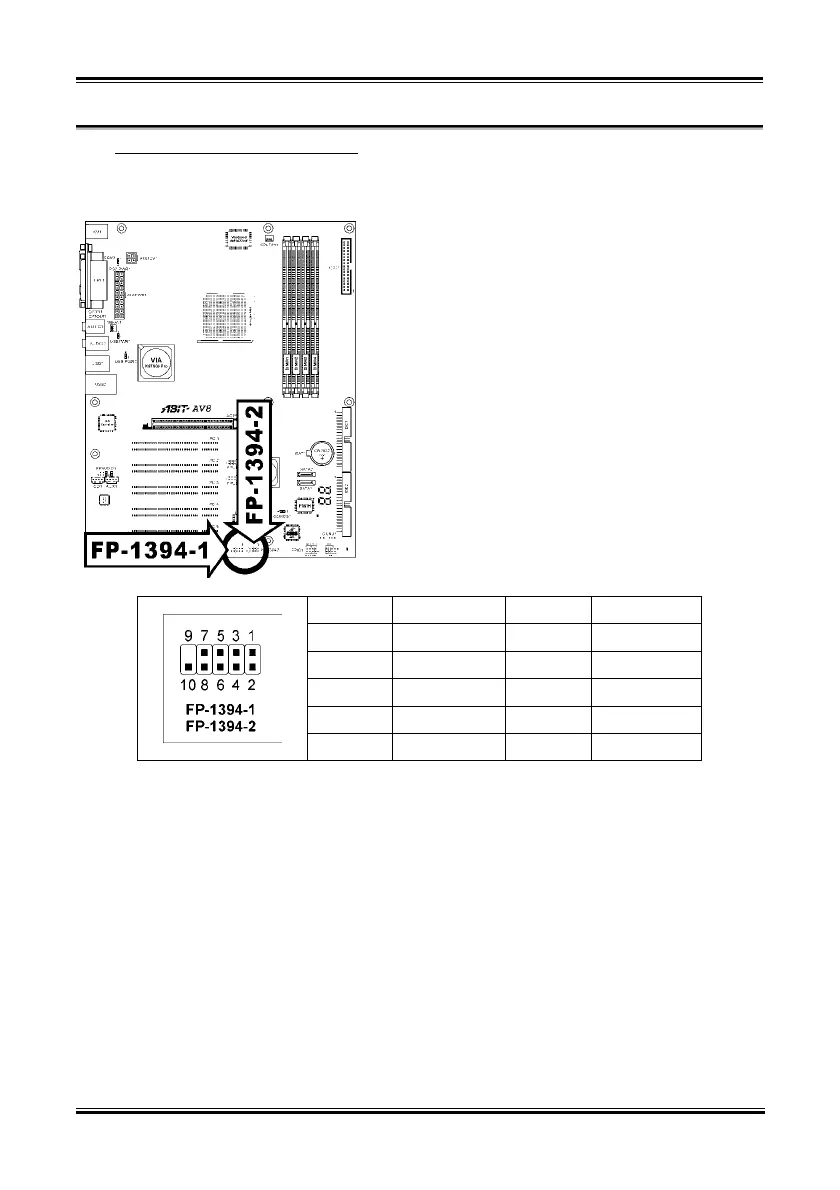

(7). Additional IEEE1394 Port Headers
These headers each provide one additional IEEE1394 port connection through an extension cable and
bracket.
Pin Pin Assignment Pin Pin Assignment
1 TPA0 + 2 TPA0 -
3 GND 4 GND
5 TPB0 + 6 TPB0 -
7 +12V 8 +12V
9 NC 10 GND
