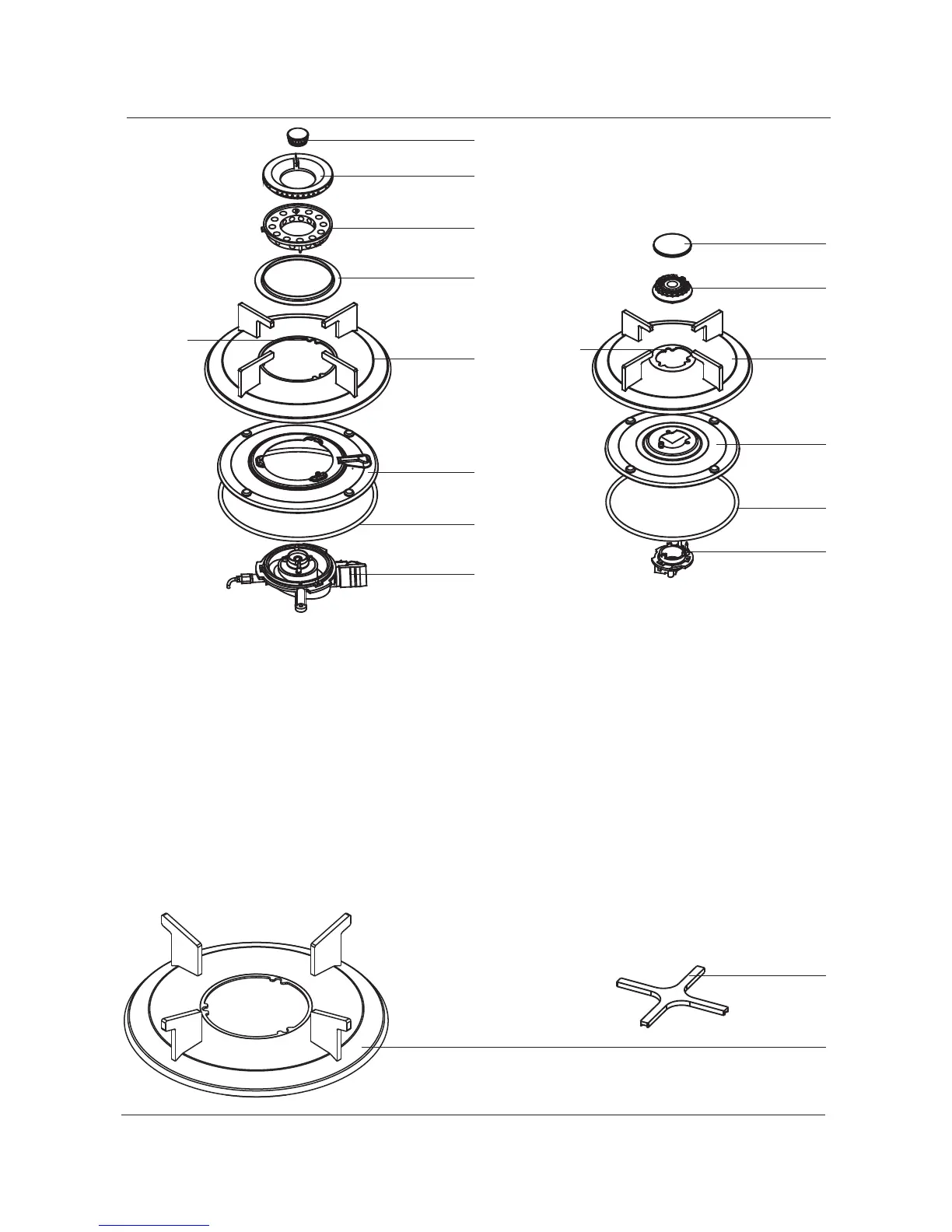

Components
Wok burner
9 interior burner cover
10 pan support [black enamelled]
11 outer ring burner
12 gas distributor ring
13 cover ring air supply
14 burner mounting plate
15 worktop sealant
16 burner house
Power | standard | simmer burner
17 pan support [black enamelled]
18 burner cover
19 spiral burner
20 burner mounting plate
21 worktop sealant
22 burner house
Accessories [optional]
23 small pan adaptor-cross
24 XL wok pan support [for round wok]
EN 6 Components
23
24
9
10
11
12
13
14
17
18
19
20
15
16
21
22
fitting
fitting
EN 7 Components
Your i-Cooking purchase consists of: standard | power burner
Components kit
Per burner, a components kit is packed,
including the installation materials for
installing the burner and matching gas tap.
This kit also includes the separate burner
and gas tap components.
Wok burner
worktop-clips for housing [3x]
M4 bolts with fill ring for burner [3x]
burner-fastening disk
pan support
burner components [not on photo]
under-ring for knob, with bolts [2x]
gas tap eccenter disk, with screws [2x]
cover ring with gas knob position indication
gas knob
worktop-clips for housing [4x]
Housing
M4 bolts for burner [3x]
burner-fastening disk
pan support
burner components [not on photo]
under-ring for knob, with bolts [2x]
gas tap eccenter disk, with screws [2x]
cover ring with gas knob position indication
gas knob
The housing has an aluminium top cooling
plate and an edge which is adjustable in
height [to be adjusted before fitting!]. In
the housing, all burner, gas tap and other
electrical and gas cooktop components
are pre-fitted.
