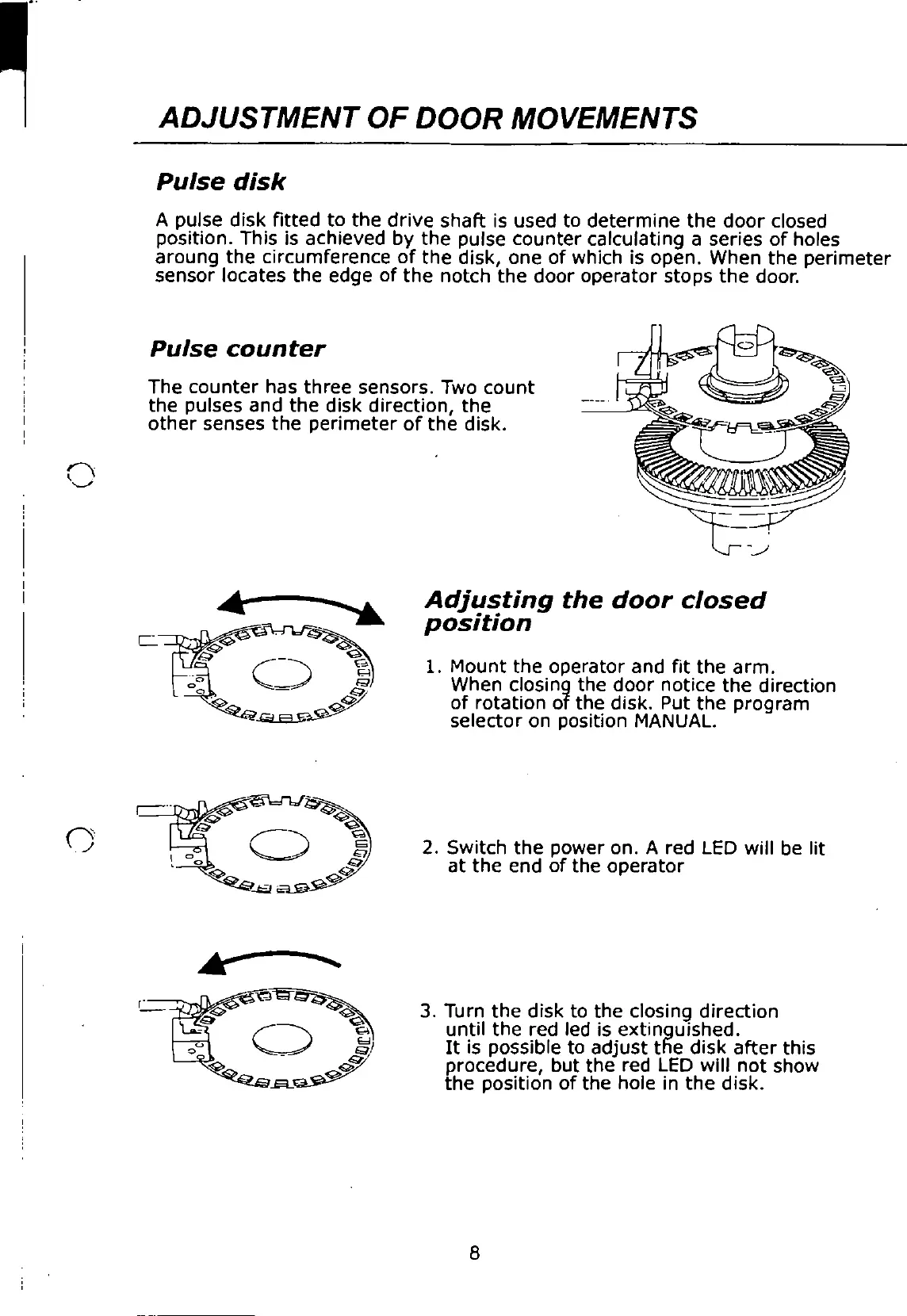

ADJUSTMENT OF DOOR MOVEMENTS
Pulse disk
A pulse disk fitted to the drive shaft is used to determine the door closed
position. This is achieved by the pulse counter calculating a series of holes
aroung the circumference of the disk, one of which is open. When the perimeter
sensor locates the edge of the notch the door operator stops the door.
Pulse counter
The counter has three sensors. Two count
the pulses and the disk direction, the
other senses the perimeter of the disk.
n
.
./
Adjusting the door closed
position
1. Mount the operator and fit the arm.
When closing the door notice the direction
of rotation of the disk. Put the program
selector on position MANUAL.
2. Switch the power on. A red LEDwill be lit
at the end of the operator
'-'-
3. Turn the disk to the closing direction
until the red led is extinguished.
It is possible to adjust the disk after this
procedure, but the red LEDwill not show
the position of the hole in the disk.
8
