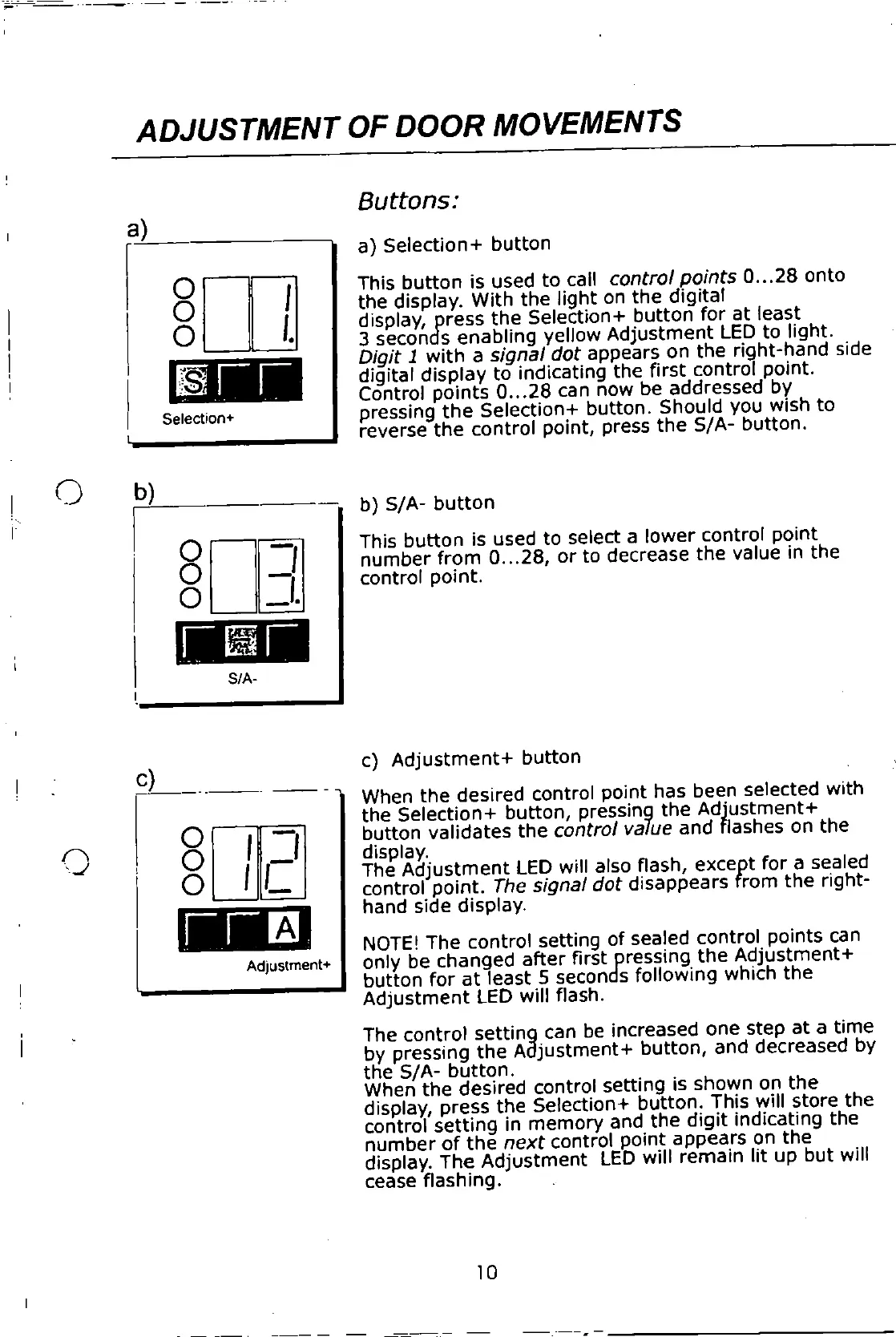

ADJUSTMENT
OF
DOOR MOVEMENTS
a)
I
om
8
I.
(;]11
- -
Selection+
Buttons:
a) Selection+ button
This button is used to call
control points
0...28 onto
the display. With the light on the digital
display, press the Selection+ button for at least
3 seconds enabling yellow Adjustment LEDto light.
Digit
1 with a
signal dot
appears on the right-hand side
digital display to indicating the first control point.
Control points 0...28 can now be addressed by
pressing the Selection+ button. Should you wish to
reverse the control point, press the S/A- button.
I
o
b)
~rn'
° -
°
_I.
S/A-
~-)
-------
Adjustmenl+
b) S/A- button
This button is used to select a lower control point
number from 0...28, or to decrease the value in the
control point.
c) Adjustment+ button
When the desired control point has been selected with
the Selection+ button, pressing the Adjustment+
button validates the
control value
and flashes on the
display.
The Adjustment LEDwill also flash, except for a sealed
control point.
The signal dot
disappears from the right-
hand side display.
NOTE!The control setting of sealed control points can
only be changed after first pressing the Adjustment+
button for at least 5 secondsfollowing which the
Adjustment LEDwill flash.
The control setting can be increased one step at a time
by pressing the Adjustment+ button, and decreased by
the S/A- button.
When the desired control setting is shown on the
display, press the Selection+ button. This will store the
control setting in memory and the digit indicating the
number of the
next
control point appears on the
display. The Adjustment LEDwill remain lit up but will
ceaseflashing. -
10
-~---- -
---.
-------------
