Absco 30302GK - Pre-Assembly Splicing

PAGE 7
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30302GK 27/04/16
=
=
=
=
=
=
2 X 60AR
2993mm (117.8")
4 x 81A
2 x 60A
1 x 55A
1 x 55C
1 x 55B
1 x 81B

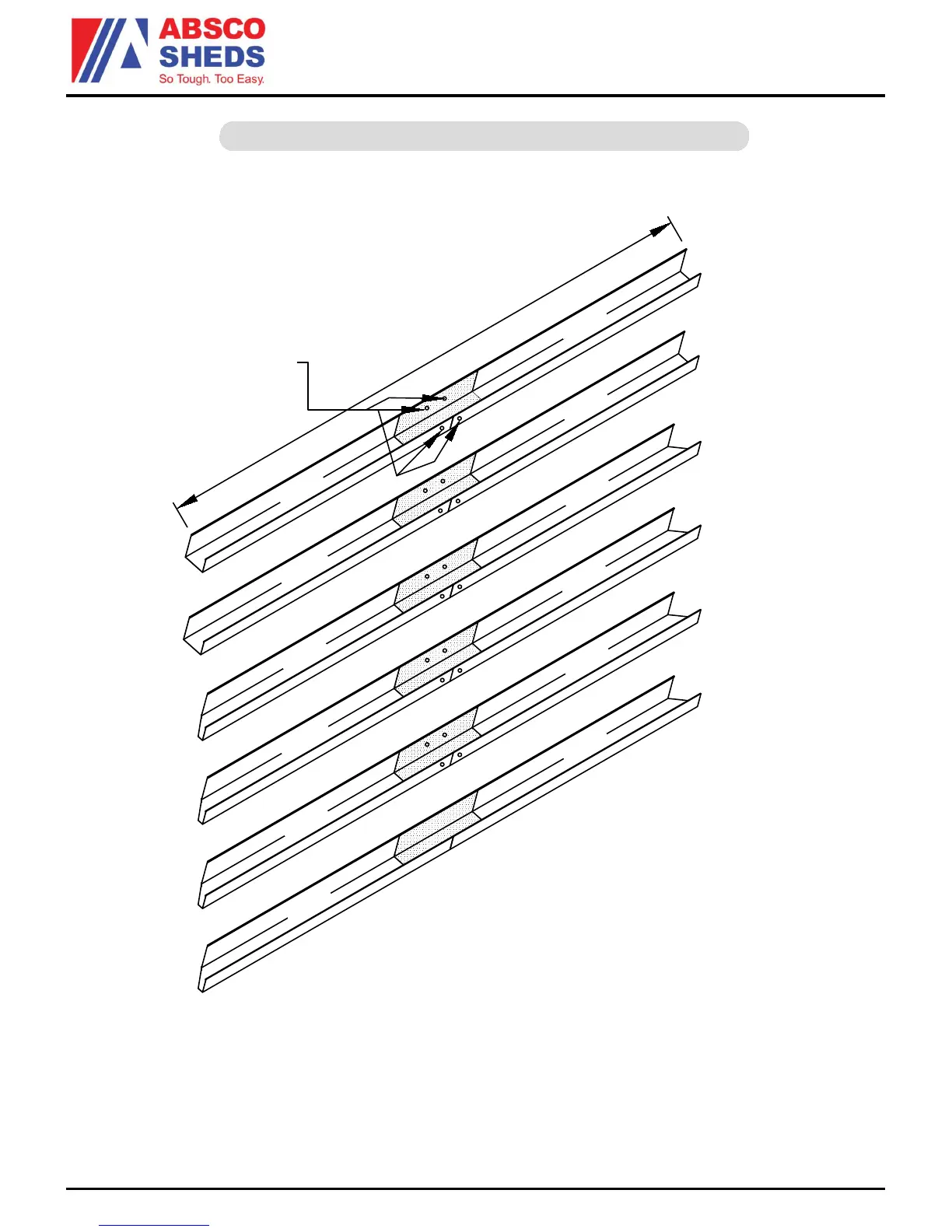

NOTE: JOIN TOGETHER 20 X CHANNEL SECTIONS USING 10 X CHANNEL JOINERS (PART CSJ)
81BL
81BR
55BR
55BL
55CL
55CR
55AR
55AL
60AL
60AR
81AR
81AL
4 X 81AR
4 X 81AL
2 X 60AL
1 X 55AR
1 X 55AL
1 X 55CR
1 X 55CL
1 X 55BR
1 X 55BL
1 X 81BR
1 X 81BL
NOTE: SOME CHANNELS HAVE
HOLES IN THEM - YOU WILL NEED
TO RE-DRILL HOLES ON ANY
CHANNEL WHERE THE CSJ
JOINING CHANNEL COVERS
HOLES ON THE CHANNELS
YOU ARE CONNECTING
STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS
Premier Garden Shed -
Model: 30302GK
