Absco 30302GK - Ridge Beam Pre-Assembly

PAGE 9
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30302GK 27/04/16
TEK SCREW DRIVER BIT
QTY. = 1
QTY. = 8
QTY. = 2
QTY. = 1
SELF DRILLING TEK SCREW
PART ZARSP - 450mm (17.7") LONG
ZARSP
RIDGE BEAM 1521mm (59.9")
PARTS 97AL & 97AR

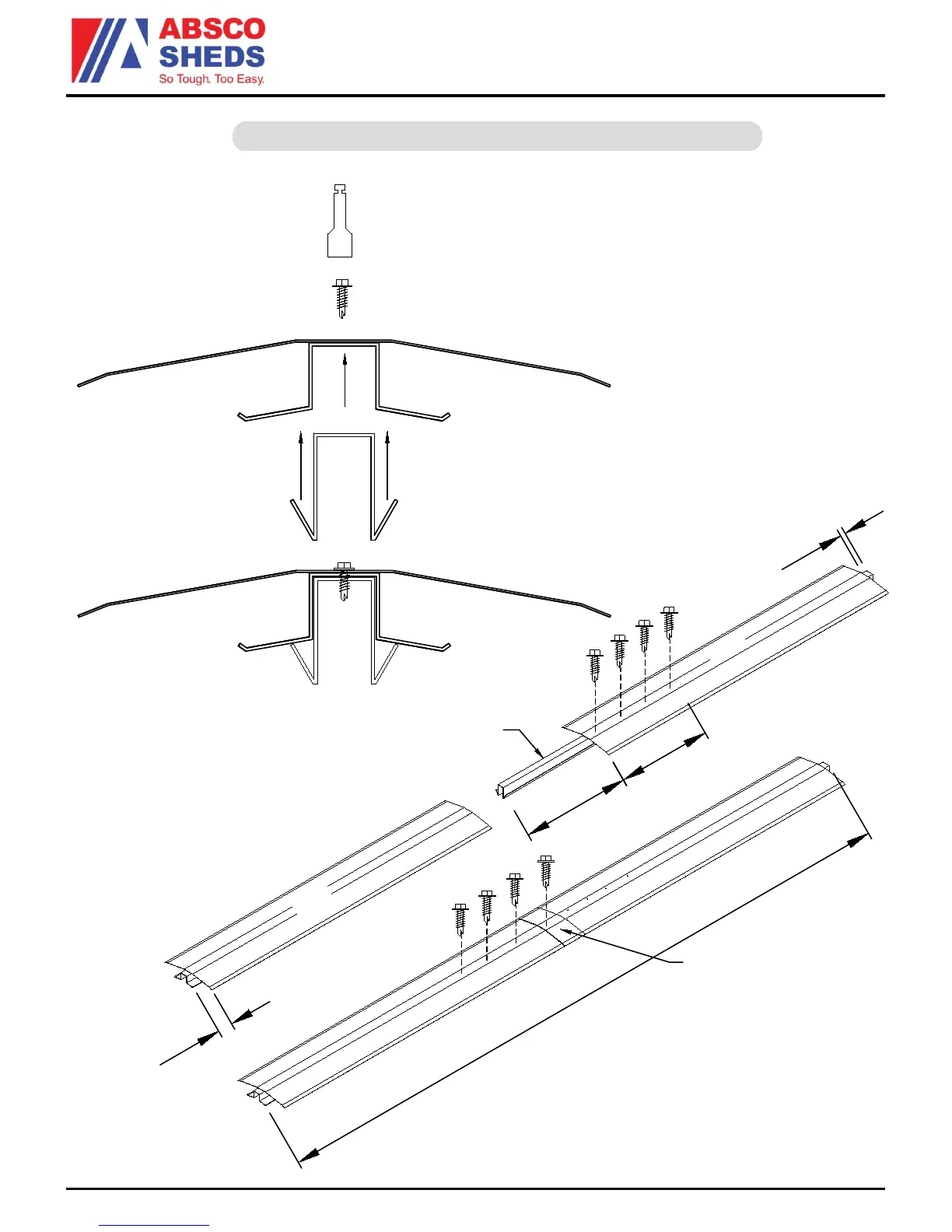

STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM
PUSH PUSH
97AL
97AR
16mm
(0.63")
200mm
(7.9")
250mm
(9.8")
2993mm (117.8") OVERALL LENGTH
(PART 97A)
16mm
(0.63")
THE TOP SECTIONS OF
CAPPING WILL OVERLAP
EACH OTHER AT THE
JOIN BY 50mm (2.0").
Premier Garden Shed -
Model: 30302GK
