7
Description
Installation
1. Using the key supplied, unscrew the cover screws and
remove the cover plate.
2. Remove the two PCB screws on the left and right of the
cylinder.
3. Pull the cylinder and PCB carefully upwards and out.
4. Use the back of the key-switch case as a template for
marking the drill holes (2). Drill the holes for the fixing
screws.
5. Fix the key switch to the wall using the screws supplied.
6. Replace the PC board. Make sure that the anti-removal
tamper contact is pressed.
7. Connect the battery supplied.
8. Replace the cover and screw it tight with the four special
screws.
Training the key switch
1. The ABUS alarm system must be in programming mode.
2. Under “Zones”, select “Allocation” and set the system to
learn mode. You see the message “(Re) Write” on the
display.
1
2
2
2
2
1

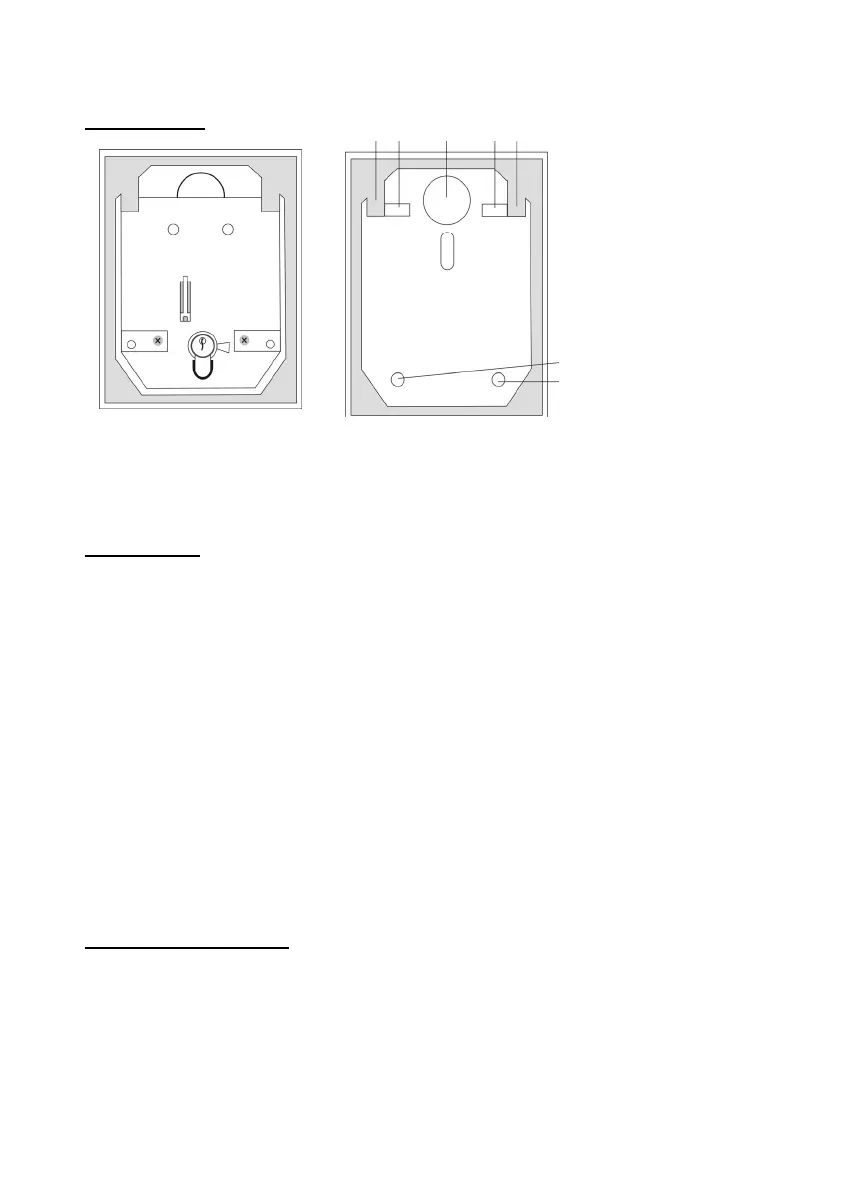

Fig. 1 Casing open
(with PCB)
Fig. 2 Casing without PCB
1
PCB holde
2 Wall fixing
