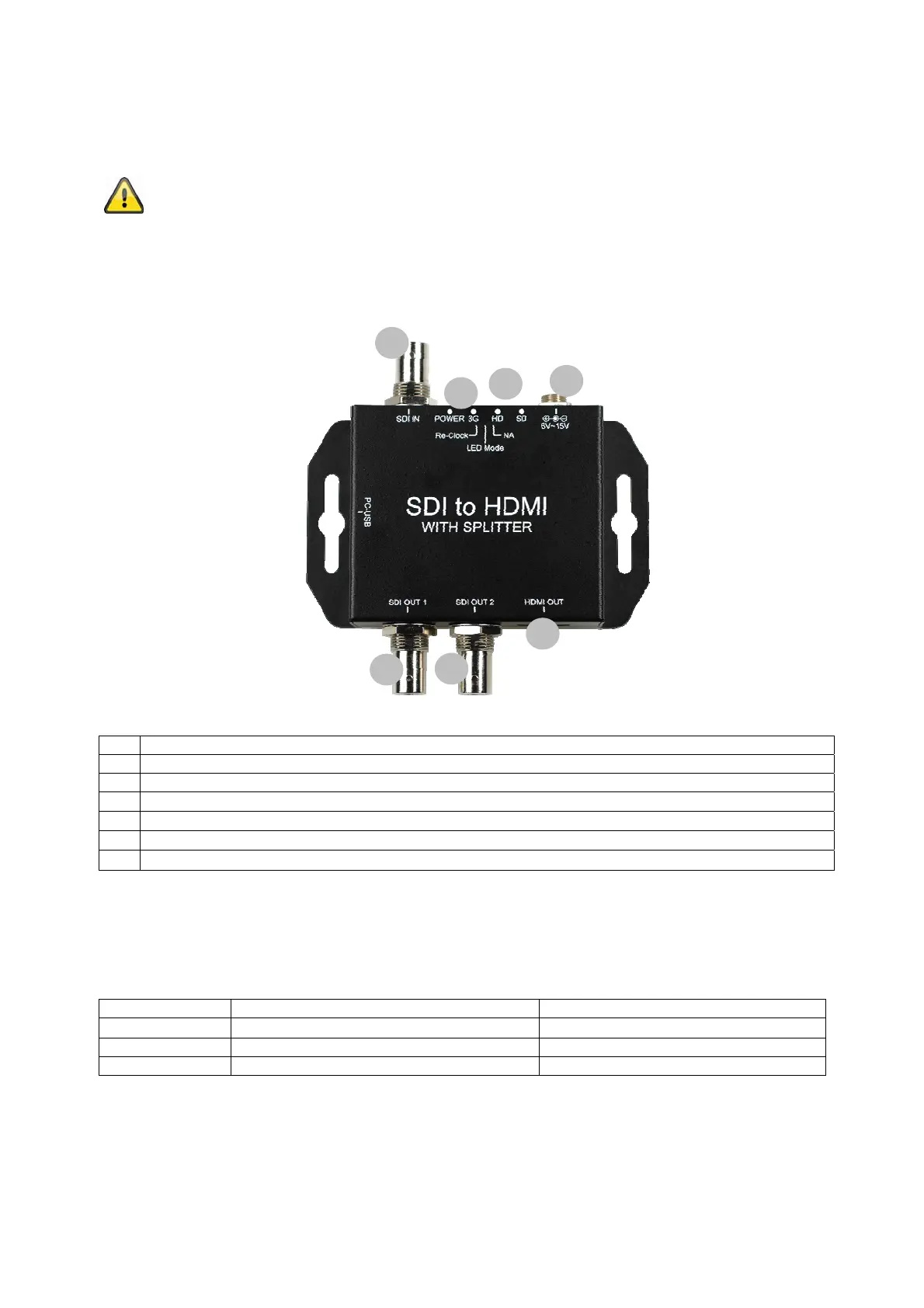

4. Physical descriptions
Please note:
For the conversion of the HD-SDI signal to HDMI, the format, resolution, and frames per second
are not changed. This means that if a camera supplies a video signal with 1080p and 25 fps, a
monitor that supports this is needed for video display.
All HD-SDI ABUS Security-Center cameras have a resolution of 1920x1080 pixels at 25
frames per second.
1
4
3
2
7
6
5
1 Voltage supply, 6,0 – 15,0 V DC, DC connector 5,5 x 2,1 mm
2 Status LEDs
3 DIP switches
4
HD-SDI input (BNC connector)
5
HD-SDI output (BNC connector )
6
HD-SDI output (BNC connector )
7
HDMI output
DIP switches
DIP switch assignment 1 – 3, read from left to right.
DIP switch # Naming Description
1 Re clocking funciton (Re-Clock)
Standard: active ↑
2 LED mode See description for „Status LEDs“
3 n.u. Not used
18
