ASSEMBLY STEPS

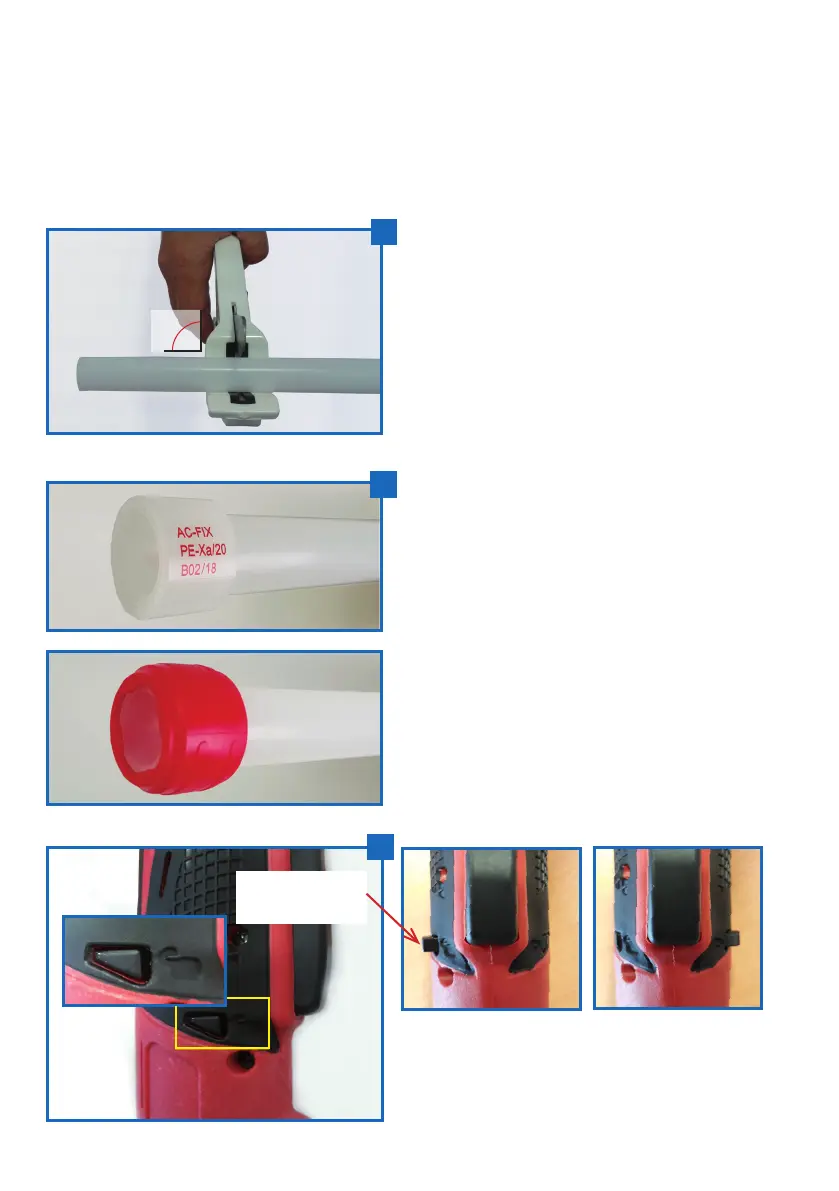

To achieve a good result, it is
essential to cut the pipe as clean
and perpendicular as possible
to its axis.
The pipe ends should be dry and
without grease, so that the plastic ring
will not slide on the pipe during expansion.
The size of the used expansion head must be the one corresponding to the pipe.
1
3
✓
✓
2
PEX-a ring without stop edge
Fit the plastic ring onto the pipe so that a
very small part of it (max. 1mm) is outside
loosely, expand the pipe end slightly without
the plastic ring.
Then put the ring back on
the end of the pipe sticking out
a bit (max. 1 mm).
PEX-a ring with stop edge or EVO-PLUS ring
Place the ring on the end of the pipe until the
pipe reaches the stop edge of the ring.
90º
Before pulling the trigger, make sure the
trigger safety is unlocked. Press the button,
on the side of the tool that has a picture of
the open padlock.
