5 ALSV01B

Installation

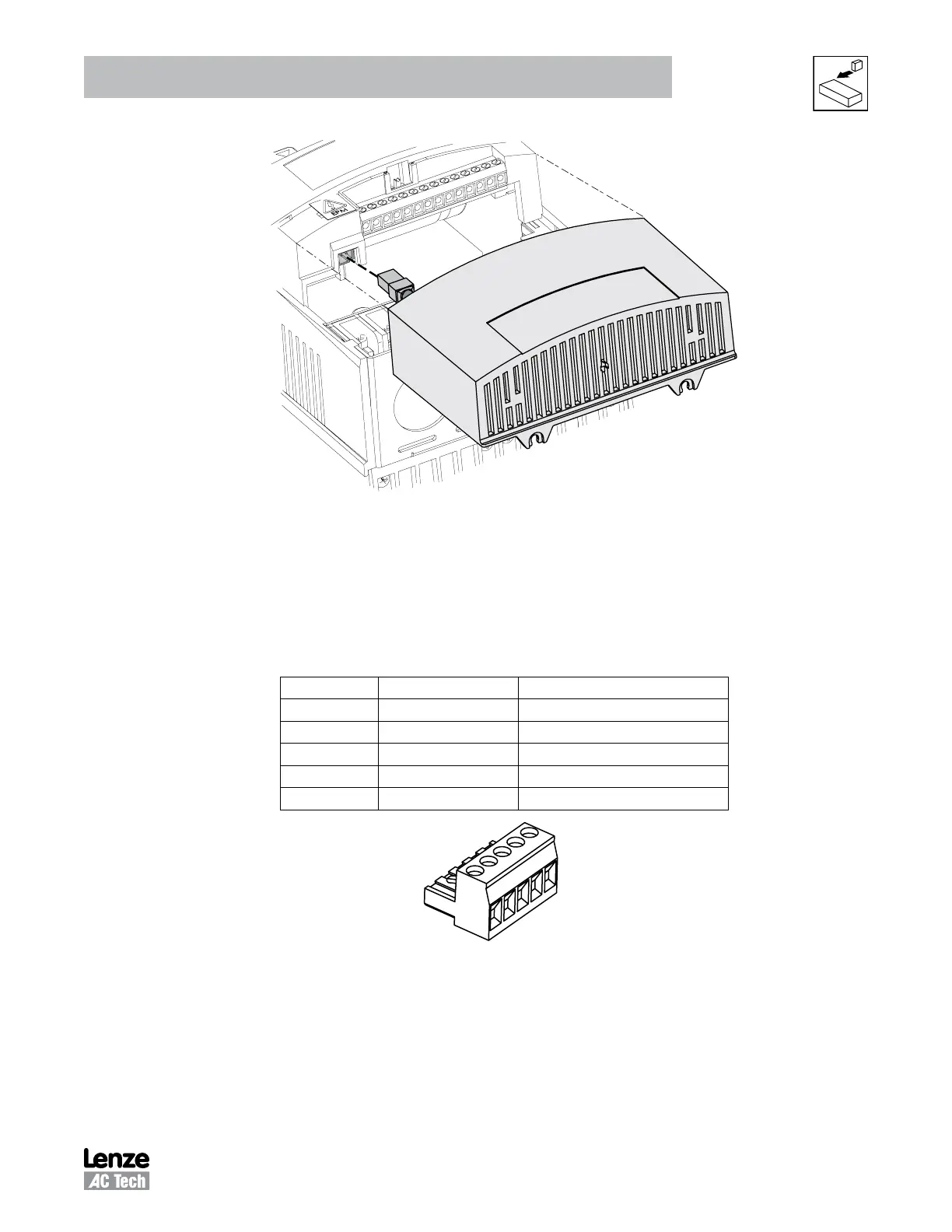

Figure 3: Re-Installing the Terminal Cover

3.2 Module Terminal Block

Table 2 identiﬁes the terminals and describes the function of each. Figure 4 illustrates the Additional I/O 5

pole 5mm pluggable connector.

Table 2: Additional I/O Terminals

Terminal Function Description

19 Relay N.O.

20 Relay Common

21 Relay N.C.

13F Digital Input Available only on ESVZAL1

13G Digital Input Available only on ESVZAL1

13G

13F

Figure 4: Additional I/O Connector
