ACADEMY MSC-5576 - Page 29

AREA OF INSTALLATION – FLYING SAUCER

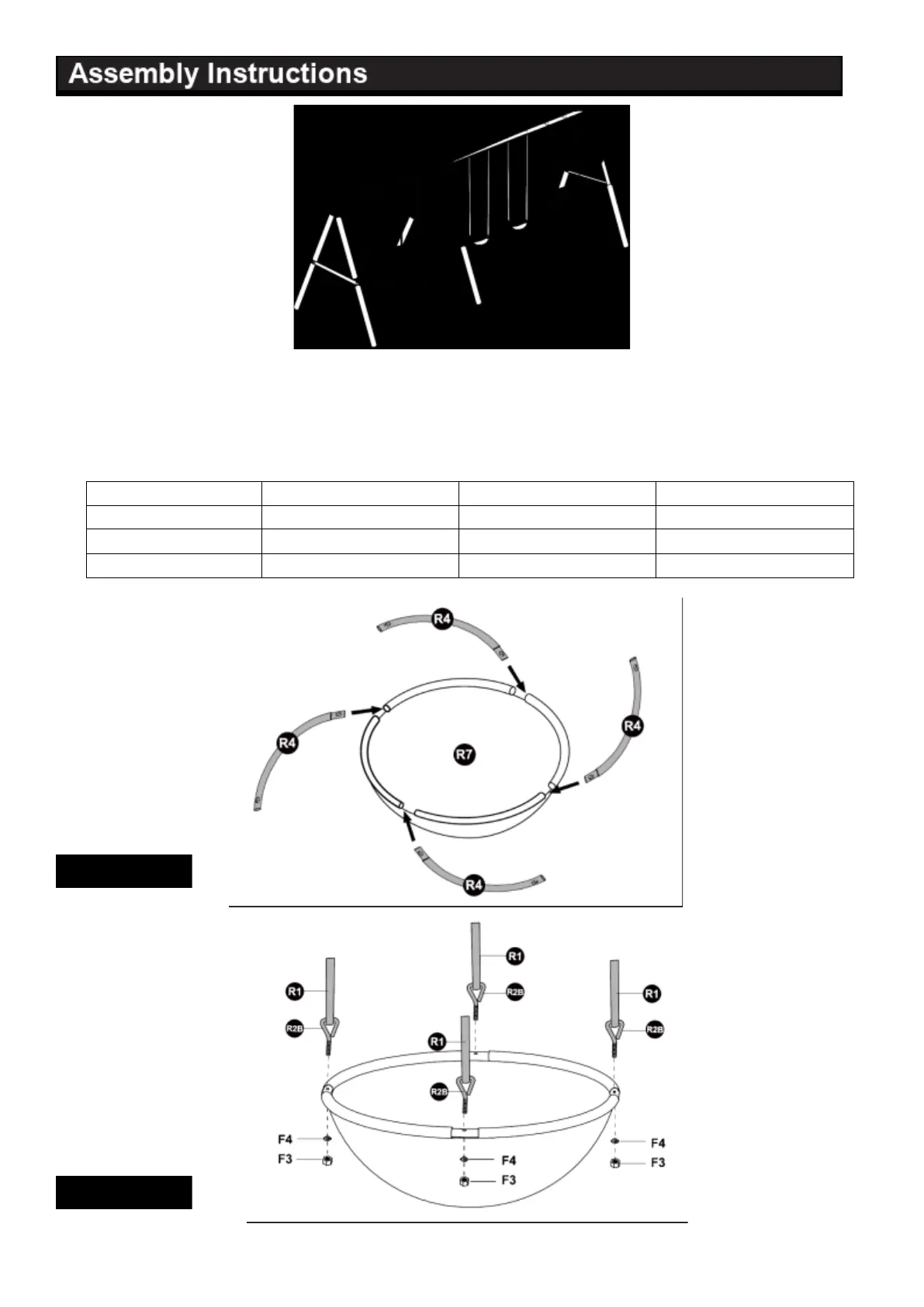

TEP 8 – Flying Saucer Assembly
➢ Slide Flying Saucer Tubes (# R4) into the sleeves of Flying Saucer (# R7) as shown DIAGRAM A.
➢ Connect the four tubes together and align the holes with the round holes facing downward.
➢ Connect Short Eye Bolt with Chain (# R1) to the flying saucer. Secure with F4 and F3 as shown in
DIAGRAM B.
Part#
Qty
Hardware#
Qty
R7
1 PC
F4
4 PCS
R4
4 PCS
F3
4 PCS
R1
4 PCS
