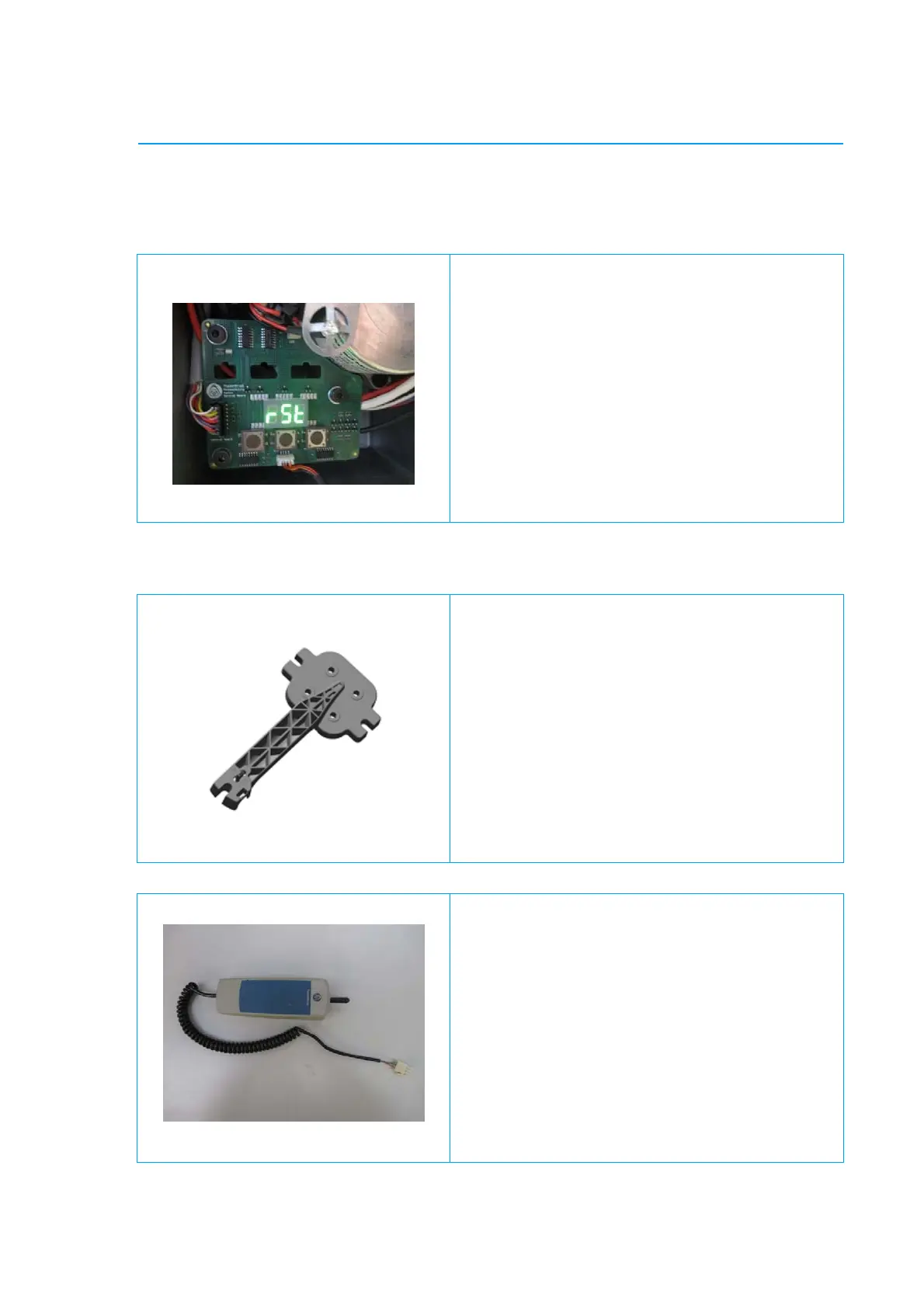

4.4 The service board
The service board is located at the front of the drive unit
immediately under the covers.
With this board it is possible to set the service settings of the
stairlift.
4.4.1 Operation
The installation handle
At the factory a handle with a switch is fitted to the drive unit
that is connected to the control board to ease riding the lift
onto the rail. After installation the connection can be
removed.
The installation joystick
For service purposes the installation joystick can be
connected to the control board (J1401 see Figure 4-20) with
an interface cable (K36 adapter cable).
