Accord XPC - Connecting Keypads and Sounders; Mounting and Wiring Keypads

10
Cable Entry
Hole
Knockout
Hole A
Knockout
Hole B
Hinge Slot
Hinge Slot
Mounting Holes
Mounting Holes
Tamper Tab
Screw Hole
Base Clip
Base Clip

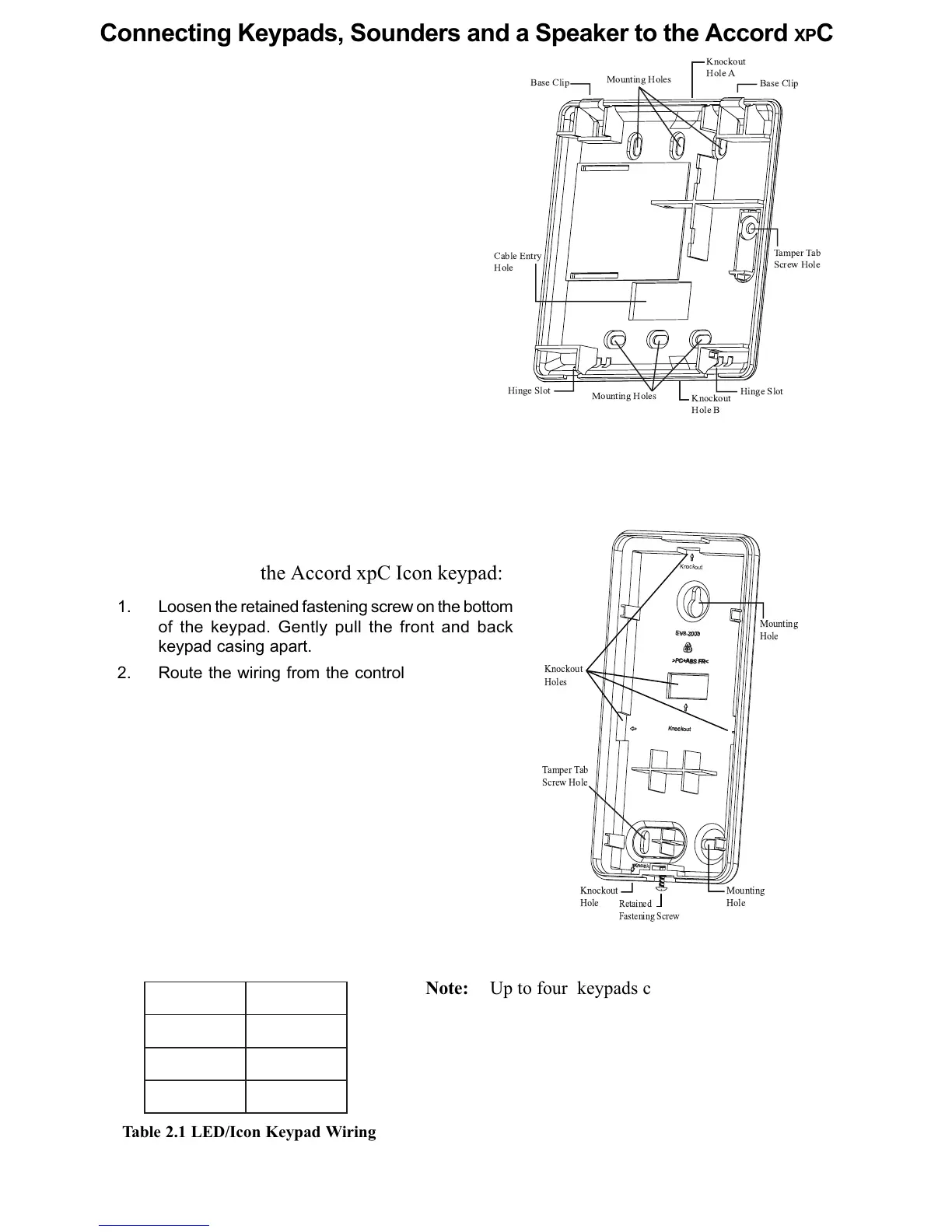

Connecting Keypads, Sounders and a Speaker to the Accord XPC
Table 2.1 LED/Icon Keypad Wiring
Note: Up to four keypads can be connected to the
system. Keypads can be wired to the control
panel independently, in series, or in a star
configuration. Both LED and Icon keypads
can be connected to the same panel.
lenaPdapyeK
+xuAev+
–xuAev–
DAP'Kdapk
KnocKnockoutout
Knockout
EV8-2000
EV8-2000
>PC+ABS FR<>PC+ABS
FR<
>PC+ABS FR<>PC+ABS
FR<
Knock
Knock
Knockout
Knockout
Knockout
Holes
Mounting
Hole
Tamper Tab
Screw Hole
Knockout
Hole
Retained
Fastening Screw
Mounting
Hole
Fig 2.3 Accord xpC LED Keypad
Fig 2.4 Accord xpC Icon Keypad
Mounting and Wiring the Icon Remote Keypad
To mount and wire the Accord xpC Icon keypad:
1. Loosen the retained fastening screw on the bottom
of the keypad. Gently pull the front and back
keypad casing apart.
2. Route the wiring from the control panel through
any of the five knockout holes on the back case
of the keypad. Tip: Use a knife to help dislodge
knockouts.
4. Securely mount the back case to a wall or
electrical box via the mounting holes. Ensure The
Tamper Tab is securely screwed down.
3. The remote keypad PCB should be wired to the
control panel PCB as outlined in Table 2.1 LED/
Icon Keypad Wiring.
5. Re-attach the keypad front to the back case,
aligning the hinges on the top. Gently apply
pressure to the keypad front and tighten the
retained fastening screw on the bottom.
5. Re-attach the keypad front to the back case by inserting the hinges on the keypad front into
the hinge retainers on the bottom of the keypad back case. Gently apply pressure to the
keypad front until the two retaining tabs click firmly into place.
1. Press down the two base clips recessed on
top of the keypad while gently pulling the
two halves of the case apart.
2. Route the wiring from the Control Panel
through the Cable Entry Hole on the back
case. Use Knockout Holes A or B if
alternative routes are necessary. Tip: Use
a knife to help dislodge knockouts.
3. Securely mount the back case to a wall or
electrical box via the mounting holes.
Ensure The Tamper Tab is securely screwed
down.
4. The remote keypad PCB should be wired
to the control panel PCB as outlined in Table
2.1 LED/Icon Keypad Wiring.
Mounting and Wiring the LED Remote Keypad
To mount and wire the Accord xpC LED keypad:
