Connecting the External Sounders
Connections for Self Actuating Bells and Bell/Siren combinations should be made as
outlined in table 2.2 and table 2.3.
Table 2.2 Connections for SABs Table 2.3 Connections for Bell/Siren only
Wiring the Loudspeaker
A 16 Ω Loudspeaker may be connected between the LS terminal and the Aux + terminal.
Wiring the Zones
The zones on the Accord xpC can function in one of three modes; Normal Closed, Double
Balanced and U.S. End of Line. Zone wiring for the three modes are illustrated below.
The mode of operation for the zones is programmed from Group 5 Option 9 Zone
Configuration.
It is strongly recommended that the maximum cable run on each zone is 100 m.

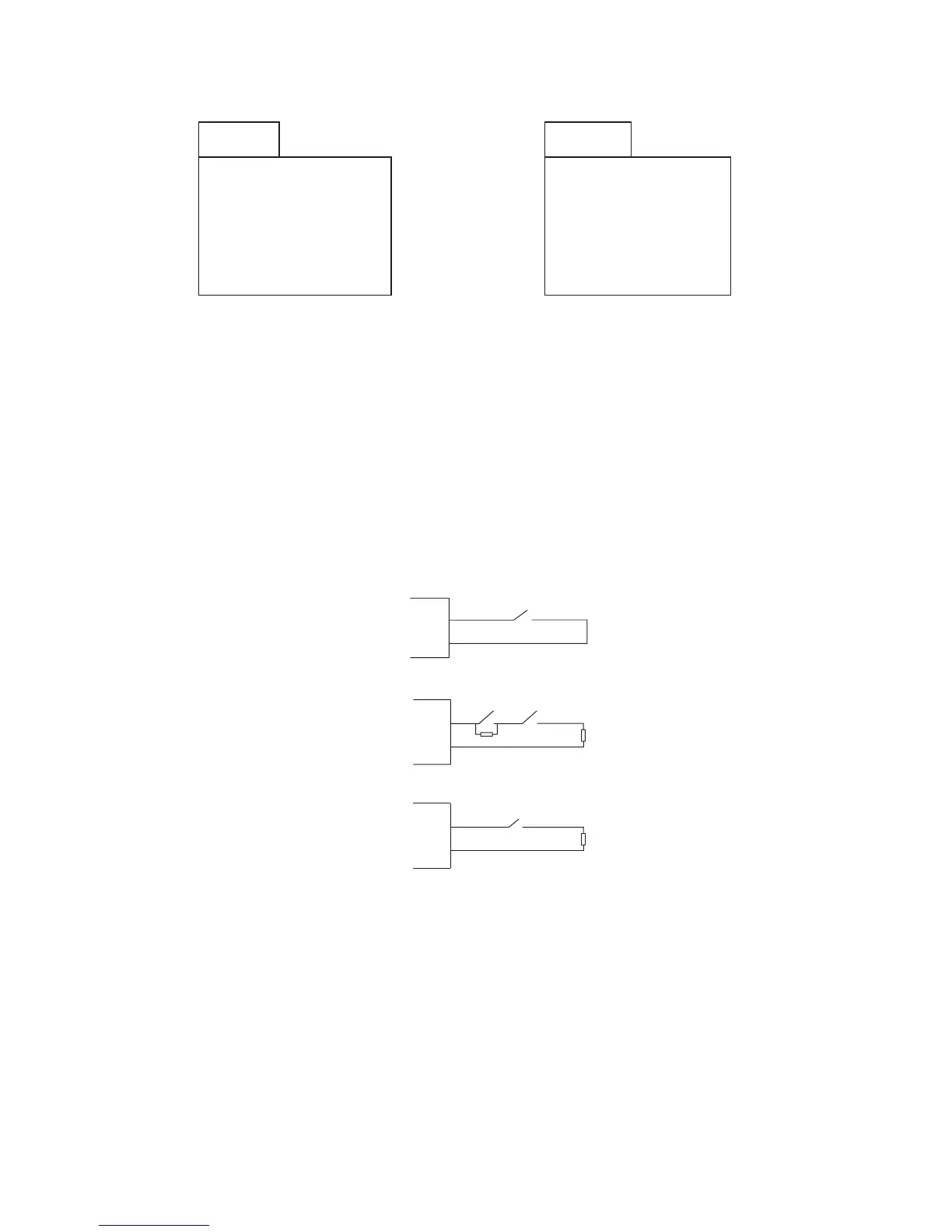

Figure 2.5 Zone Wiring for Normal Closed
Figure 2.6 Zone Wiring for Double Balanced Zones
Figure 2.7 Zone Wiring for US EOL Zones
Zone Links
The eight zones, the zone tamper and the bell tamper circuits can be shorted using the
Zone Links provided in the ancillaries pack. It is strongly recommended that this be done
if any of the circuits are not to be used. If Double Balanced or U.S. End of Line, fit a 1K
resistor across the zone and not the shorting link.
1K
1K
1K
snoitcennoC
BASrof
lenaPlleB
+LLEBffOdloH/ylppuSevitisoP
LLEB– evitageNlangiS/pirT
PMATLLEB– ffO–dloH/ylppuSevitageN
LLEBR–PMATnruteRrepmaTevitageN
BRTSlangiSevitageNebortS
rofnoitcennoC
ylnoneriS/lleB
lenaPlleB
+LLEBevitisoPebortS&lleB
-LLEBevitageNlleB
-PMATLLEBnommoCWSrepmaT
LLEBPMATR-C/NWSrepmaT
BRTSevitageNebortS
