Description of Hardware
Gigabit Uplink Module
The EM4582-LX-SC fiber optic module is designed for use in Accton switch models
which have a single-port Gigabit Ethernet transceiver slot. At present, suitable units
include these CheetahSwitch Workgroup models – ES3514F, ES3526F, ES3526G, and
ES3552.
Detailed information about configuring these modules and advice about
Fast Ethernet configuration rules can be found in the switch’s user guide.
Warning: Before installing or removing the EM4582-LX-SC module, first disconnect the
switch from the main power supply. For full safety instructions, please refer to
the user guide that accompanies the switch.

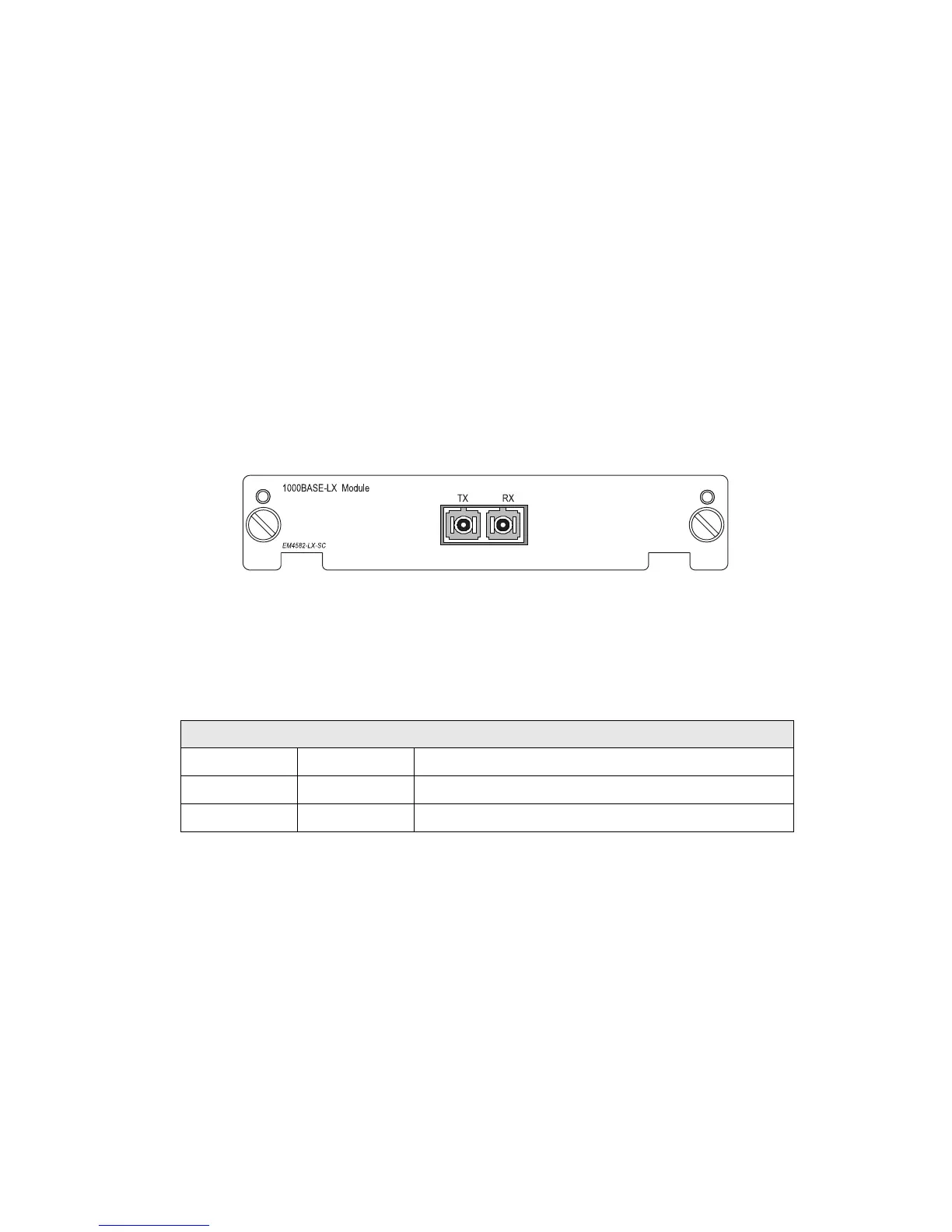

Accton’s EM4582-LX-SC fiber optic module provides a Gigabit port which can be
used for a high-speed backbone or server connection. It contains one 1000BASE-LX
port that can be connected to a site up to 5 km (16,404 ft) away with single-mode
fiber cable.
Gigabit Port LEDs
Port LEDs are provided for the module on the front panel of the switch for
“at-a-glance” network monitoring. The following table details the indicator functions
provided by the switch:
Extender Module LEDs
LEDs Condition Status
Status On A module is installed in this slot.
Activity On Traffic is passing through the port.
