10.2 Bypass mode10.2 Bypass mode

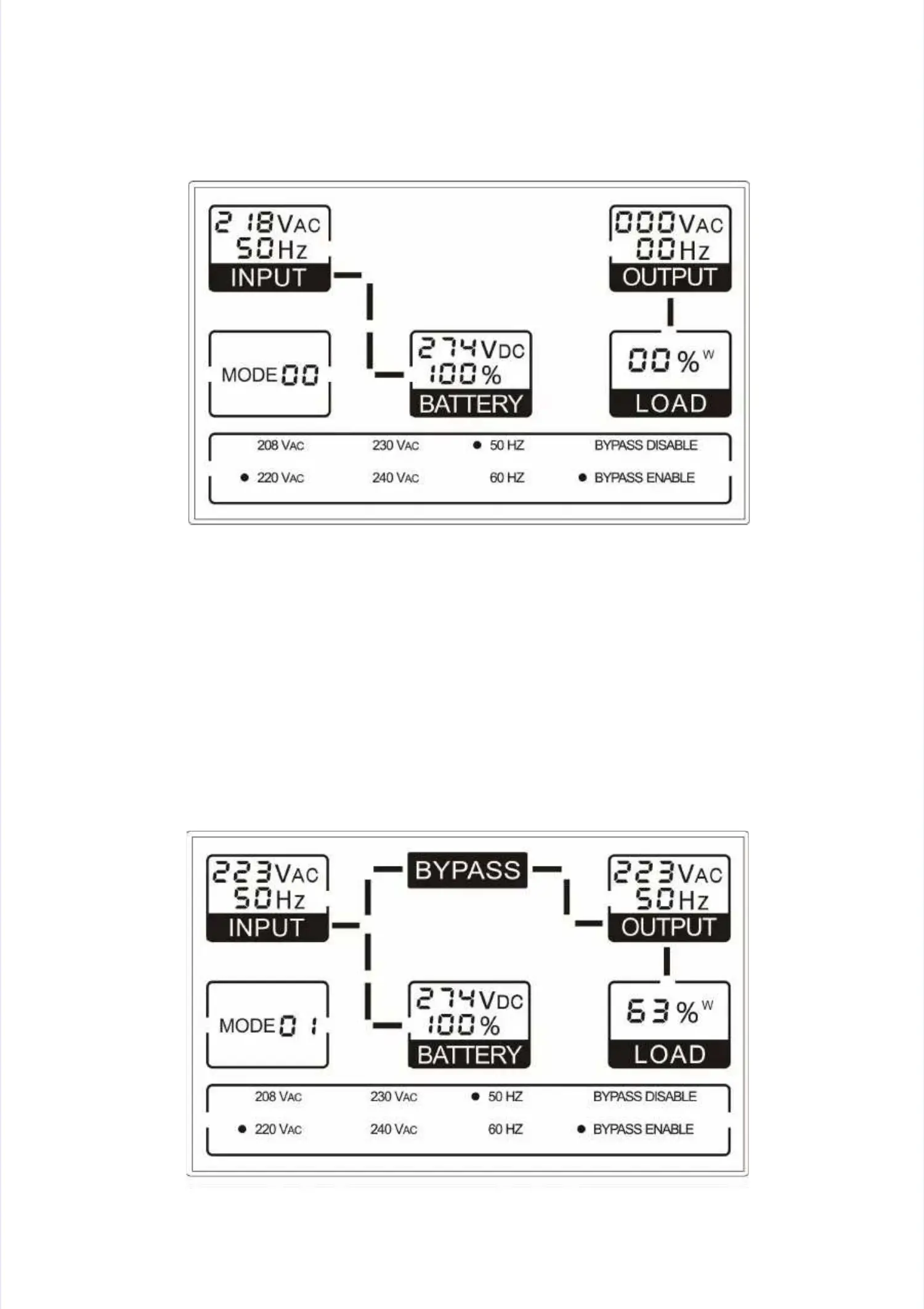

The LCD display in Bypass mode is shown in the following diagram. TheThe LCD display in Bypass mode is shown in the following diagram. The
information about the utility power, the battery, the UPS output and theinformation about the utility power, the battery, the UPS output and the
load could be displayed. The operating mode code of the UPS is “01”.load could be displayed. The operating mode code of the UPS is “01”.
The block of “BYPASS” indicates the bypass is working. The UPS willThe block of “BYPASS” indicates the bypass is working. The UPS will
beep once every 2 minutes in Bypass mode.beep once every 2 minutes in Bypass mode.
No Output modeNo Output mode
Bypass modeBypass mode
